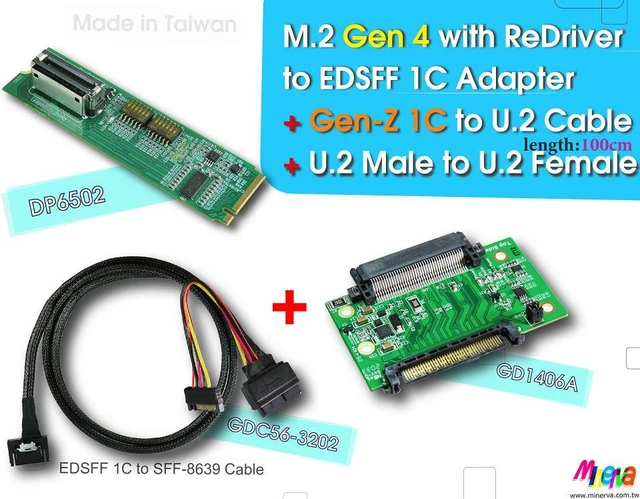

M.2 PCIe 4.0 with ReDriver for EDSFF 1C & Gen-Z 1C to U.2 Cable, 100cm & U.2 Male to U.2 Female

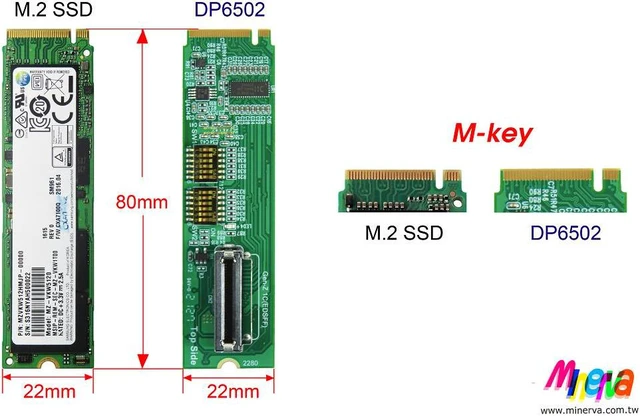

#"DP6502"adapter:
Features:
* Gen-Z 1C (EDSFF) to PCI Express 4.0 M. 2 4-Lane convert
* Built- in Gen-Z 1C (EDSFF) connector

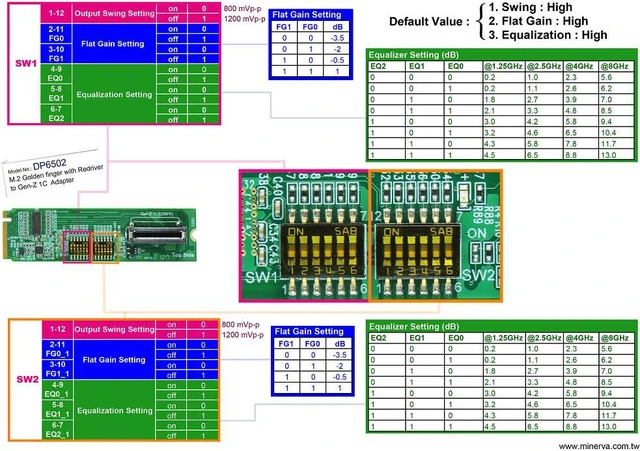

* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard


#Part Number: GDC56-3202

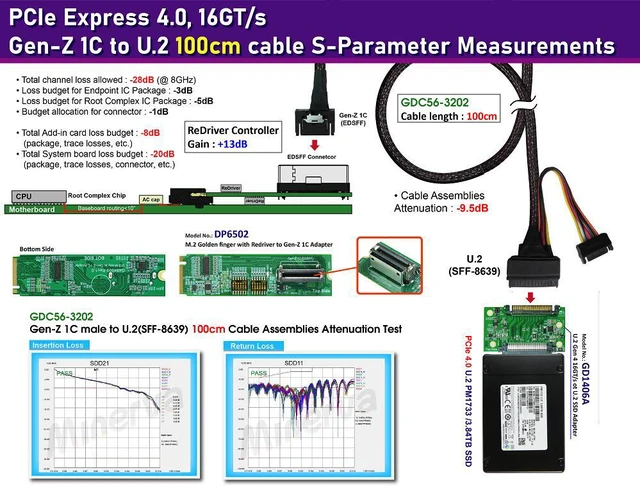

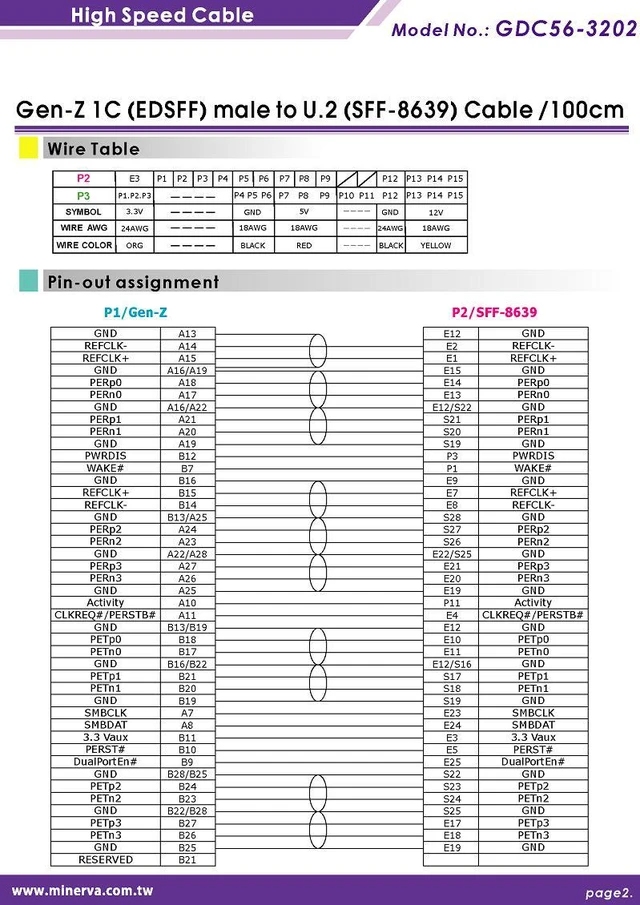

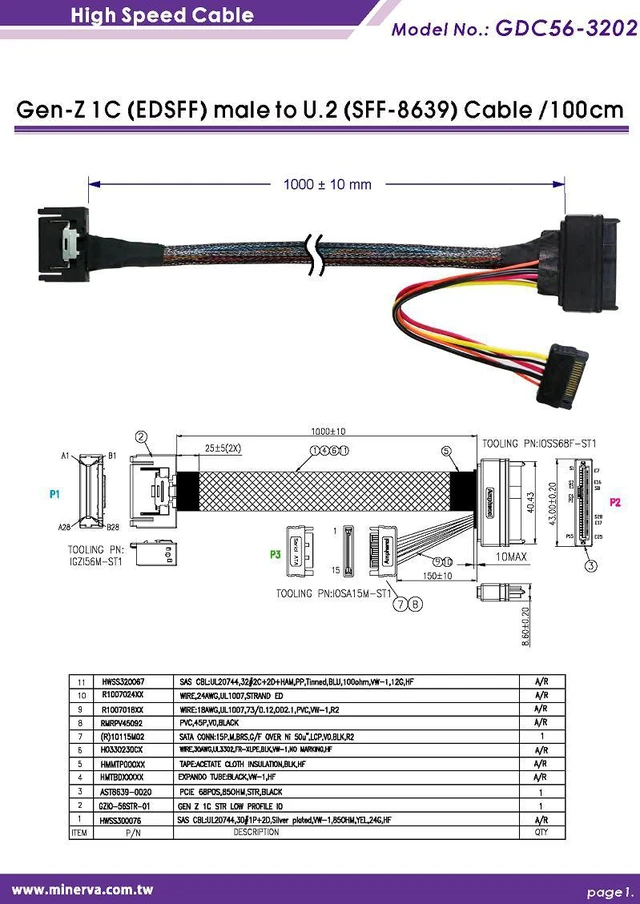

Product Description: PCIe Gen 4 Gen-Z 1C (EDSFF) to U. 2 (SFF8639) cable
Cable Length: 100CM

#GD1406A Adapter

Features:
* Built-in SFF-8639 Male connector
* Built-in SFF-8639 Female connector
* Built-in power 12V Hot Plug Power protection IC, can support a maximun continuous current of 6.5A
* Built-in power 5V Load Switch with controlled turn on, can support a maximun continuous current of 5A
* Built-in power 3.3VAUX Load Switch with controlled turn on, can support a maximun continuous current of 500mA
* Supports CLKREQ#, WAKE#, PWRDIS
* Supports SMB_CLK, SMB_DATA
* LED1 Green LED on indicates U. 2 SSD power ready
* LED2 Green LED on indicates SATA SSD power ready
* LED3 RED LED Blinking indicates SSD active status
