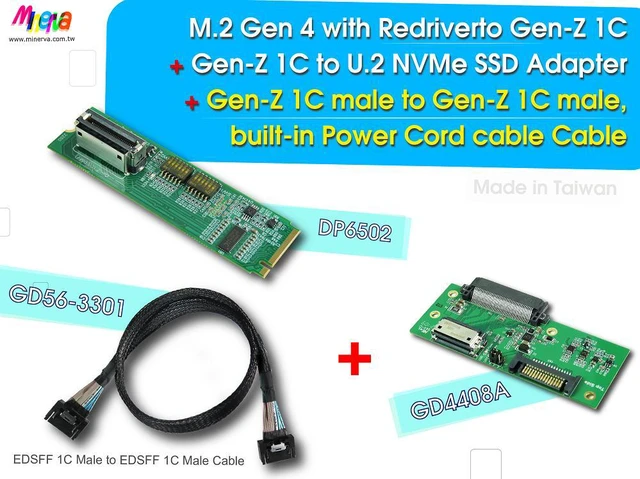

M.2 PCIe Gen 4 with ReDriver to Gen-Z 1C & EDSFF 1C Male, built-in Power Cord Cable, 50cm & Gen-Z 1C to U.2(SFF-8639) NVMe SSD Adapter KIT

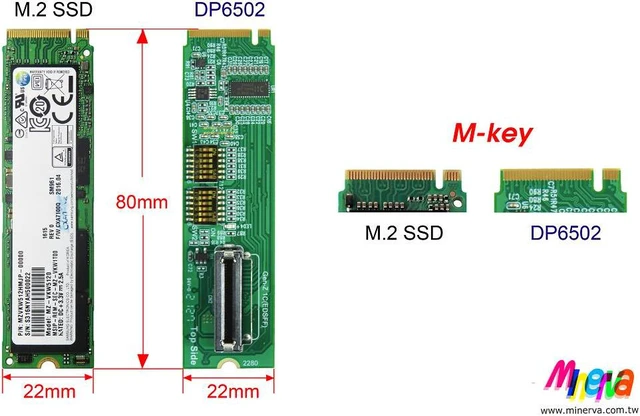

#"DP6502"adapter:
Features:
* Gen-Z 1C (EDSFF) to PCI Express 4.0 M. 2 4-Lane convert
* Built- in Gen-Z 1C (EDSFF) connector

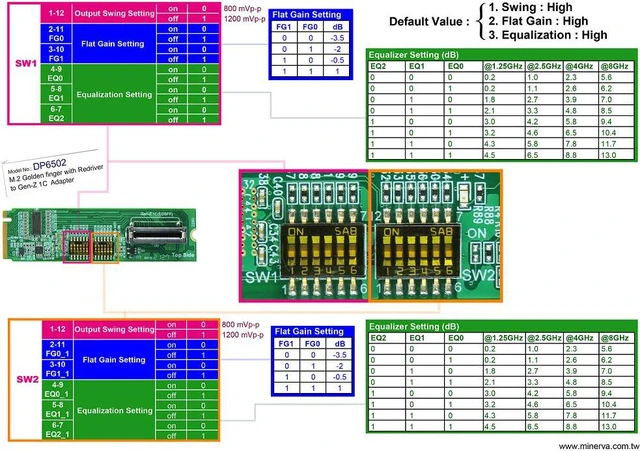

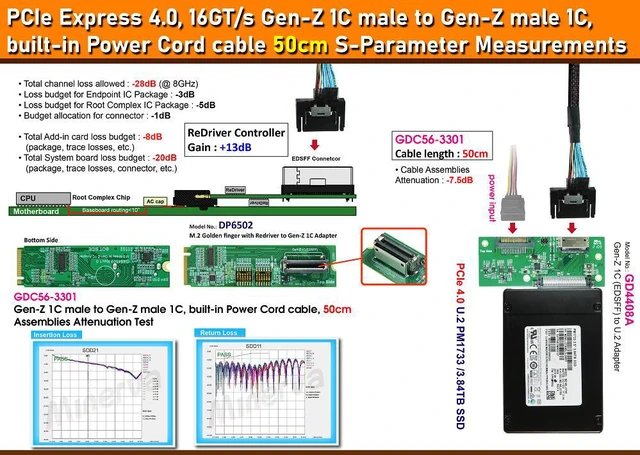

* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

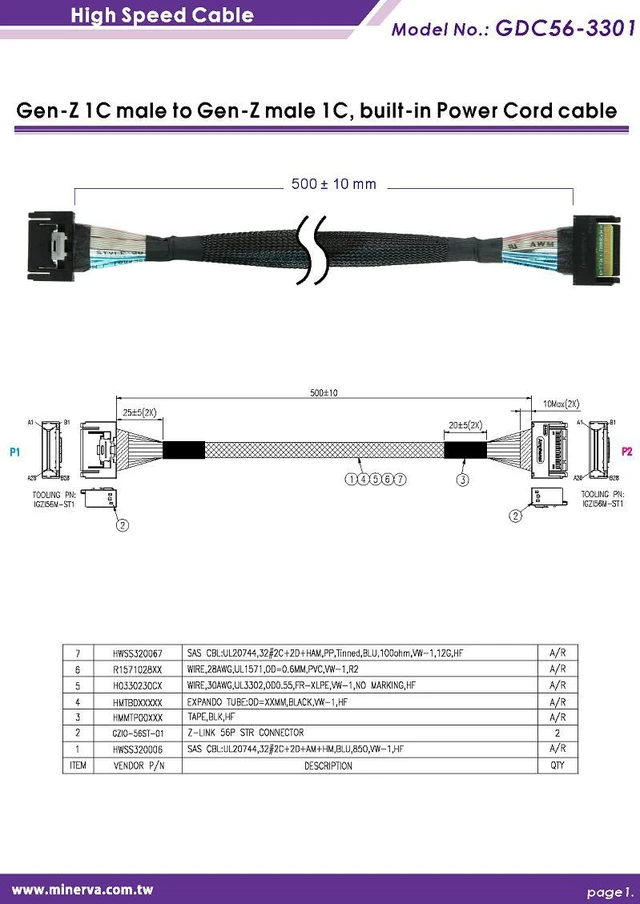

Part Number: GDC56-3301

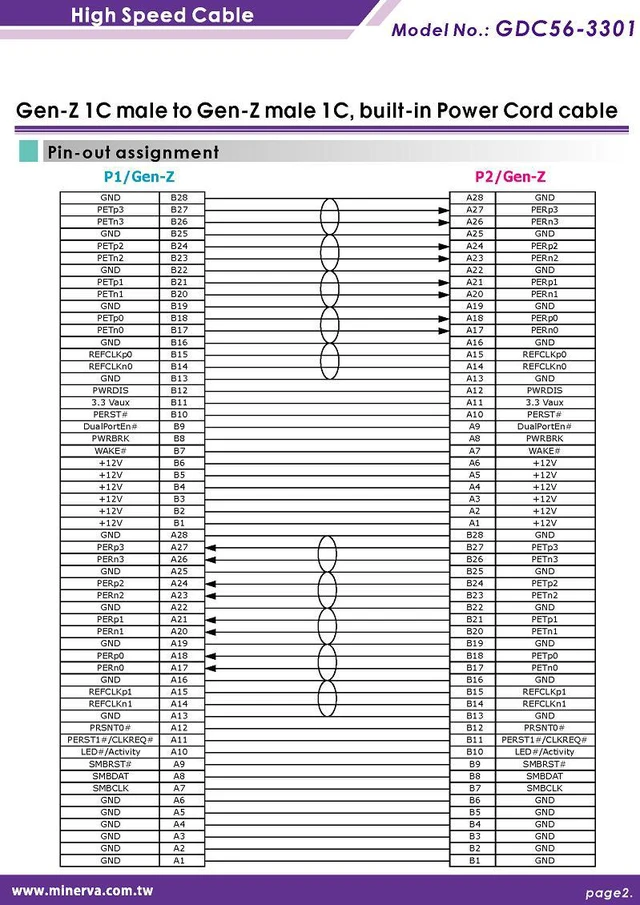

Product Description: Gen-Z 1C Male to Gen-Z 1C Male with Power Cord Cable
Cable Length: 50CM


#GD4408A Adapter:

Features:
* U. 2(SFF-8639) to Gen-Z 1C convert
* Build-in SATA 15-pin power connector
* Build-in SFF-8639 connector,
contact finish: 30GOLD
* Build-in Gen-Z 1C connector,
contact finish: 30GOLD
* Built-in SMBus Bidirectional Hot Swappable Bus Buffers controller
* Built-in SMBus I/O Expander for PWRDIS control
* Built-in 12V Hot Plug Power controller with eFuse protection circuit
* Built-in 3.3V Power load switch protection circuit
* Supports CLKREQ# for Gen-Z 1C to U. 2 connection
* Supports WAKE# for Gen-Z 1C to U. 2 connection
* LED 1 Green LED Blinking indicates SSD power ready
* LED 2 Red LED on indicates SSD active status

Specifications

:
* Compliant with NVM Express 1.4 a
* Support PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
