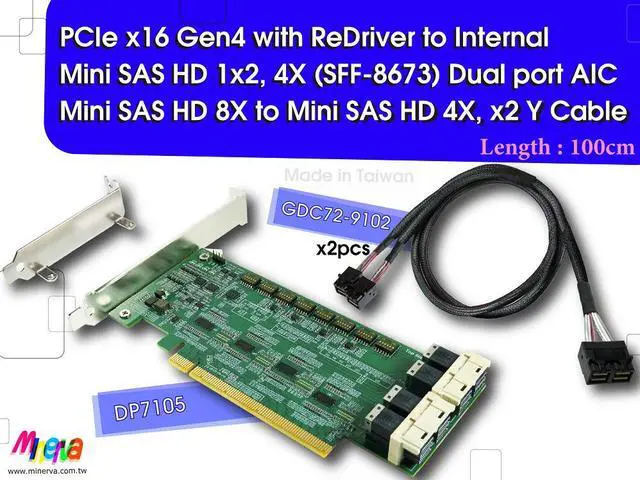

PCIe x16 Gen4 with ReDriver to Internal Mini SAS HD 1x2, 4X dual port AIC & Mini SAS HD 8x to Mini SAS HD 4X, x2 Y Cable x2pcs, 100cm

#DP7105 AIC
Features:

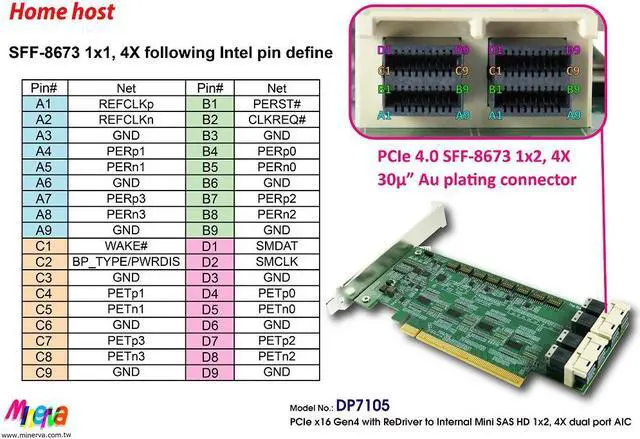

* Internal Mini SAS HD 1x2, 4X(SFF-8673) dual port to PCIe x16 Gen4 convert
* Built-in SFF-8673 1x2, 4X dual port connector with 30u( 0.38 um) min Au mating area plating
* Input +12V, + 3.3V, 3.3VAUX with TVS protection
* Built-in +12V to 3.3V _IN, 5.5A current PWM Power controller
* Built-in 3.3V _IN Power Load Switch for ReDriver controller Power Protection.
* PCIe 4.0 16-lane signals input and output with ESD protection

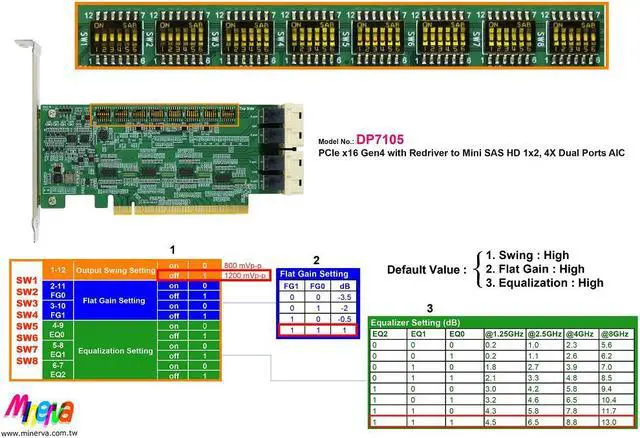

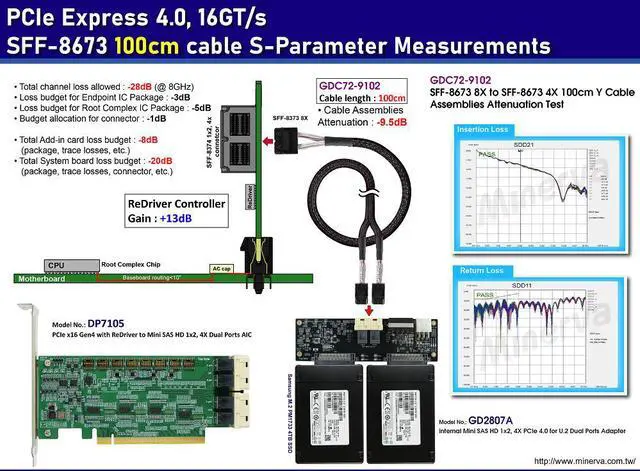

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals and may provides programmable linear equalization, output swing and flat gain
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SFF-8673 dual port to drive longer cable length.
It may be buffered and fanned out to the SFF-8673 dual port clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SFF-8673 dual port SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote SFF-8673 dual port Reset signals.
* Supports PCIe PERST# management to control SFF-8673 dual port Reset signals.
* Built-in PERST# Bus Buffer to be used longer cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used longer cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used longer cable length.
* LED1 Green LED on indicates AIC ready
* LED2 Red OFF indicates WAKE# Normal (Function intentionally inverted)
* LED3 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)
* LED4 Red OFF indicates PERST# Normal (Function intentionally inverted)
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0 a


Specificationa:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with Support SFF-8613Rev 3.5


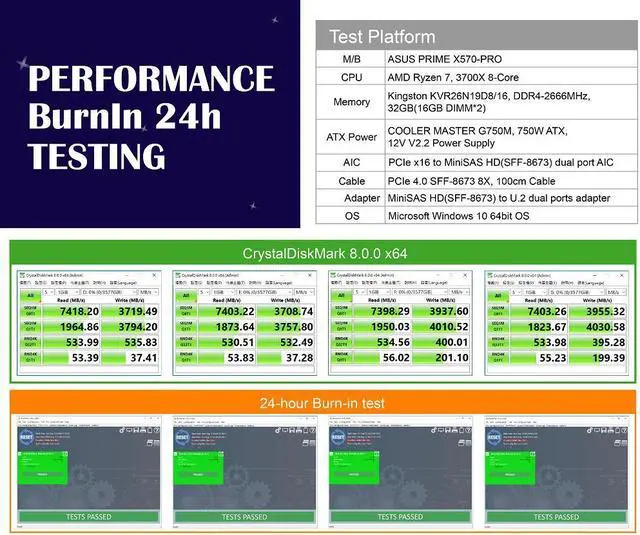

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard


Part Number: GDC72-9102

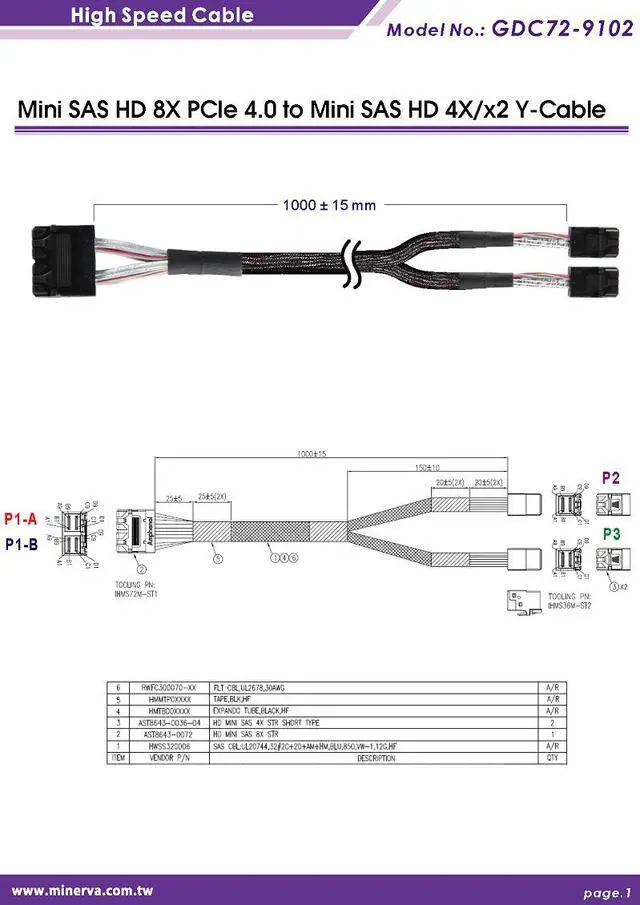

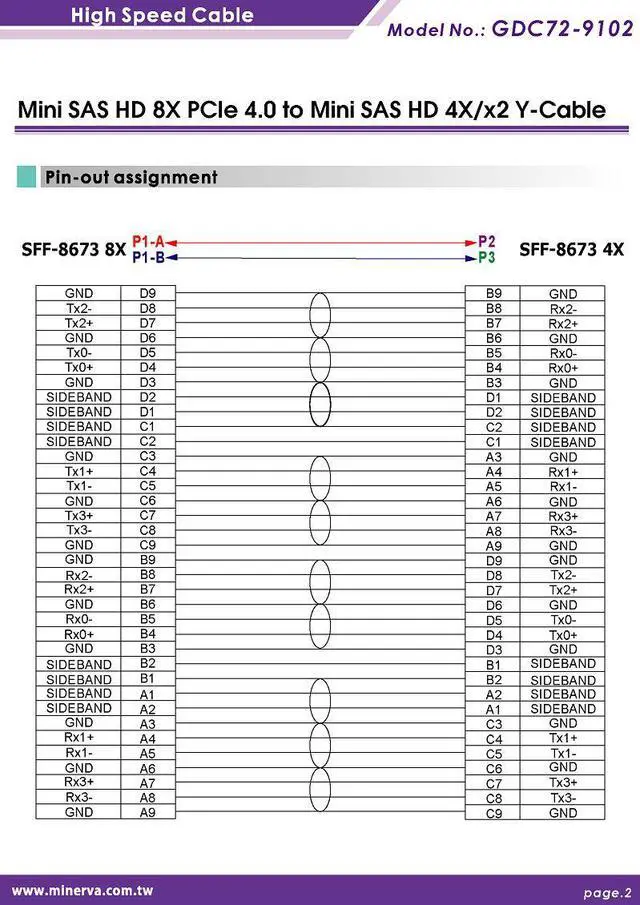

Product Description: MINI SAS HD 8X to MINI SAS HD 4X, x2 Y Cable x2pcs
Cable Length: 100CM
