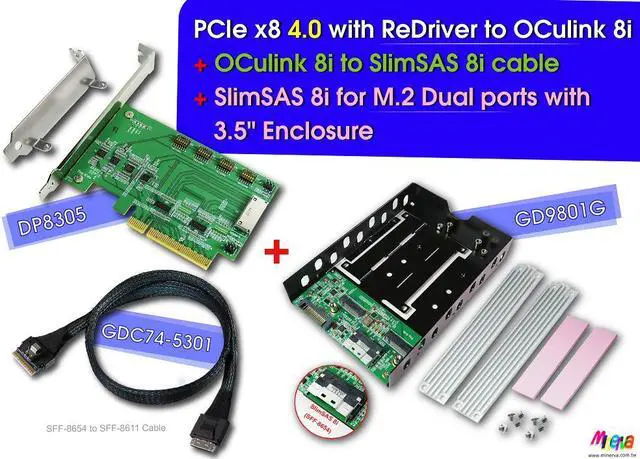

PCIe x8 Gen4 with ReDriver to OCulink 8i AIC & OCulink 8i to SlimSAS 8i Cable,100cm & SlimSAS 8i to M.2 NVMe Dual port+3.5" Tray

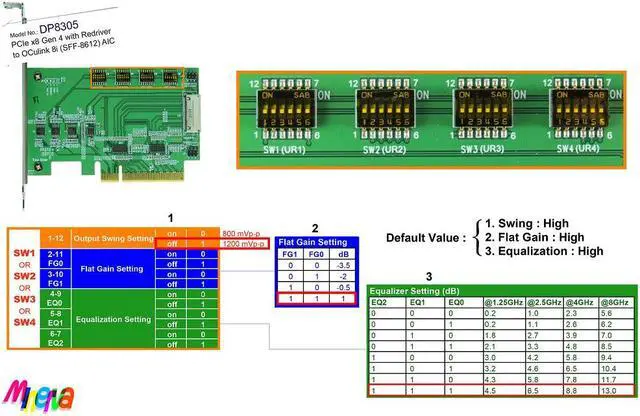

#"DP8305"adapter:
Features:
* OCulink 8i (SFF-8612) to PCIe x8 Gen 4 convert
* Built-in OCulink 8i (SFF-8612) connector, pin-out defined by SFF-9402 Rev 1.1

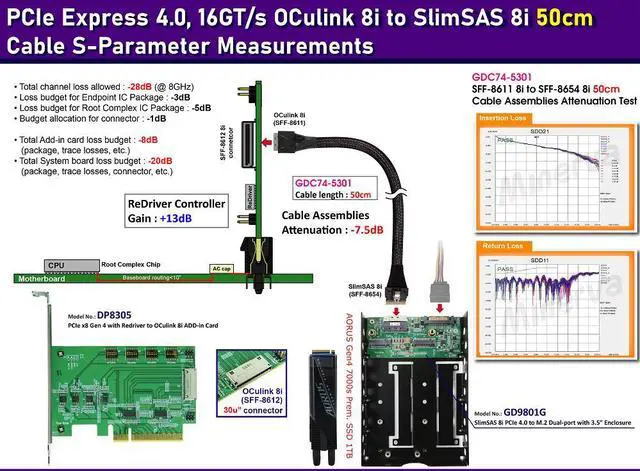

* Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.
* Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.
* Built-in PCIe SMBus Switch (Address 0xE2) 4-channel with Reset Function for OCulink 8i (SFF-8612) SMBus and PCIe 100MHz Clock buffer SMBus control
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0 a

Operating system support:
* Windows 8 & 8.1 * Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

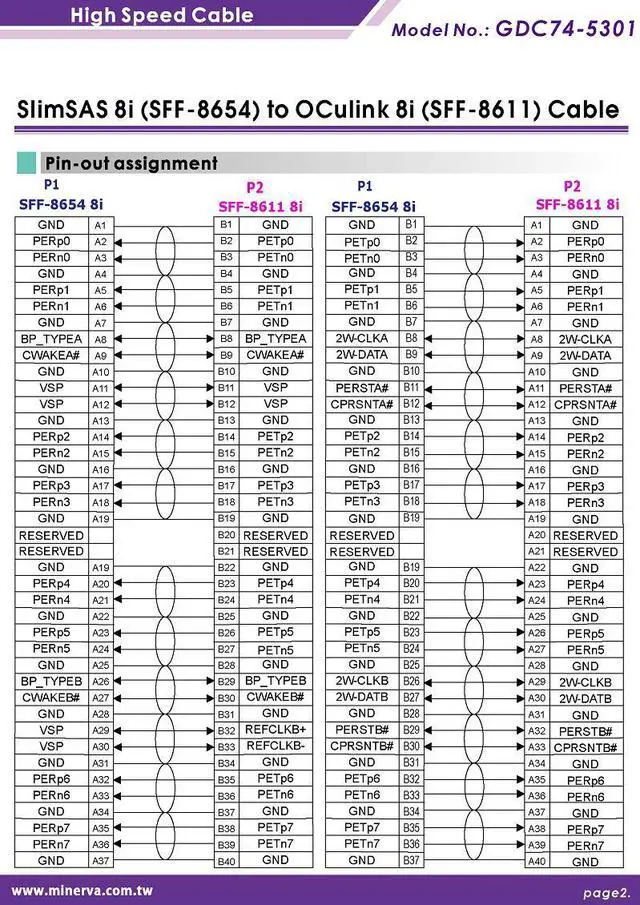

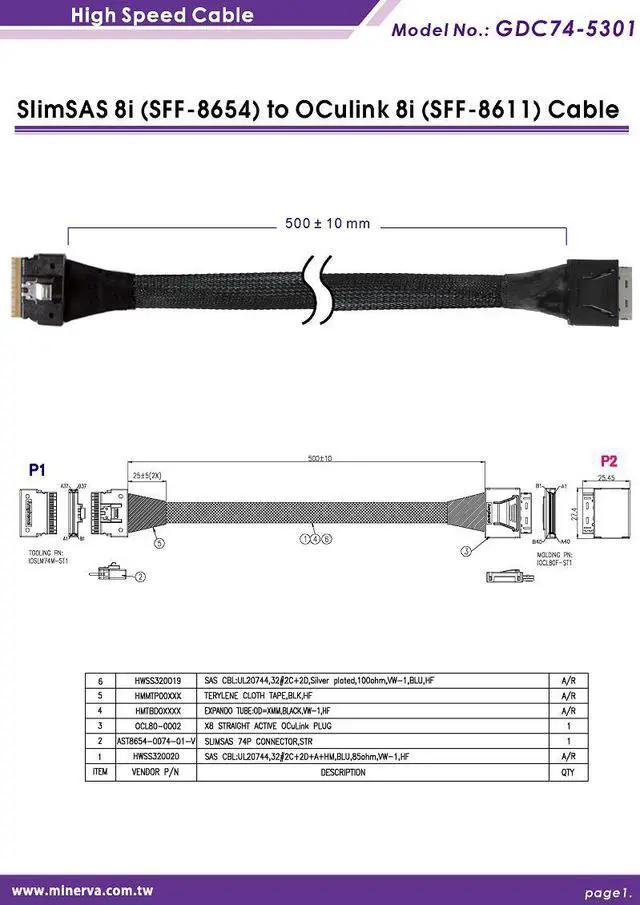

Number: GDC74-5301
Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 50CM


#GD9801G Adapter:

Features:
* M. 2 dual ports to SlimSAS 8i(SFF-8654) convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in two M. 2 M-key connector
* PWM synchronous buck converter Power for M. 2 dual ports SSD
* 8A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode (HBM) /2KV
* Built-in two 3.3V Hot Plug Power with eFuse protection for M. 2 dual ports
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Supports M. 2 to PCIe CLKREQ#, WAKE#
* Supports M. 2 / 1.8V to PCIe/ 3.3V SMB_CLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to PCIe / 3.3V SMB_CLK, SMB_DATA isolated, repeater
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA
Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters
* LED5, LED6 Green LED on indicates M. 2 NVMe SSD power ready
* LED1, LED2 RED LED Blinking indicates M. 2 active status
