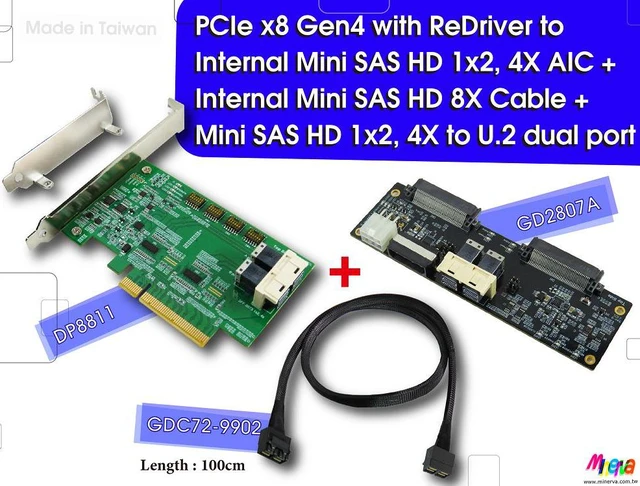

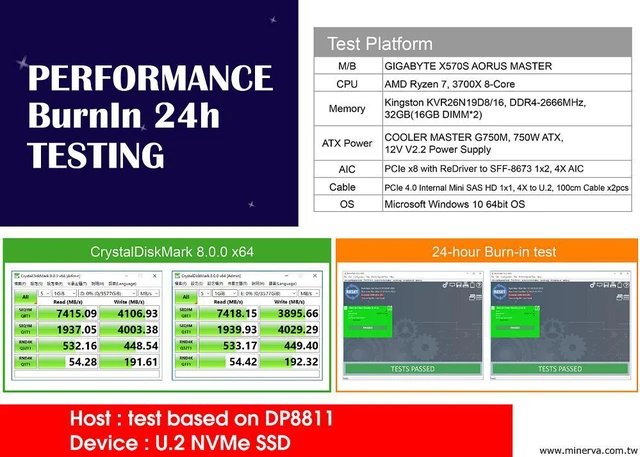

PCIe x8 Gen4 with ReDriver to Internal Mini SAS HD 1x2, 4X AIC & Mini SAS HD 8X Cable, 100cm & Mini SAS HD 8X to U.2 dual port

#DP8811 AIC
Features:
* Internal Mini SAS HD 1x2, 4X(SFF-8673) to PCIe x8 Gen4 convert
* Built-in SFF-8673 1x2, 4X connector,
* Input power 3.3V with TVS and Load Switch protection to protect ReDriver controller
* PCIe 4.0 8 lanes signals input and output with ESD protection

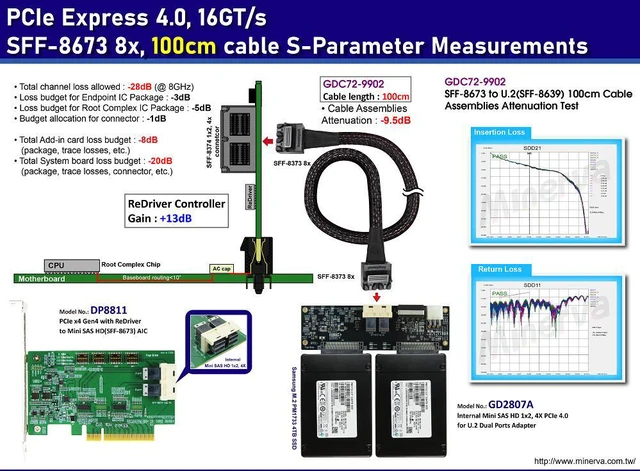

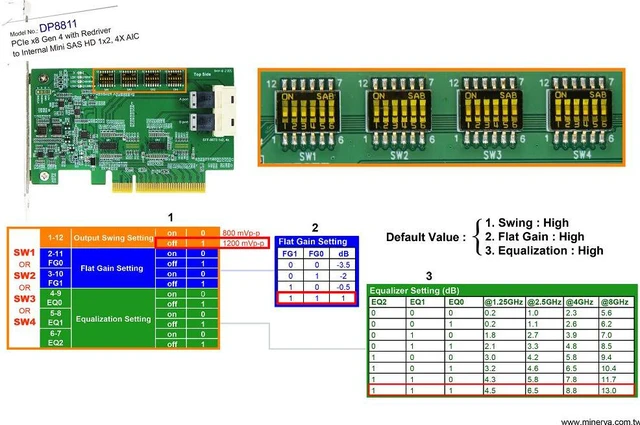

* Built-in ReDriver controller to extend PCIe 4.0, 16GT/s 8 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain.
* The PCIe 8 lanes can be bifurcated into two x4 link width to support different system topologies
* Built-in PCIe 100MHz clock buffer(Address: 0x6C) for SFF-8673 1x2, 4X to drive longer cable length. It may be buffered and fanned out to the SFF-8673 1x2, 4X clock pin dual port output.
* Built-in SMBus Switch(Address: 0x70) with Reset funtion for SFF-8673 1x2, 4X dual port SMBus communication
* Built- in SMBus bidirectional buffer repeater
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote SFF-8673 1x2, 4X dual port Reset signals
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.
* Supports PCIe PERST# for OOB (out of band) management to remote SFF-8673 1x2, 4X dual port Reset
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* D1 Green LED on indicates AIC ready
* LED1 Green OFF indicates PERST# Normal (Function intentionally inverted)
* LED2 Green OFF indicates WAKE# Normal (Function intentionally inverted)
* LED3 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* PCI_Express_External_Cabling_R 3.0 a_06042020_NCB
* SFF-TA-8614 R 3.5. 4_CB
* SFF-9401 Rev 1.1

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard



Part Number: GDC72-9902

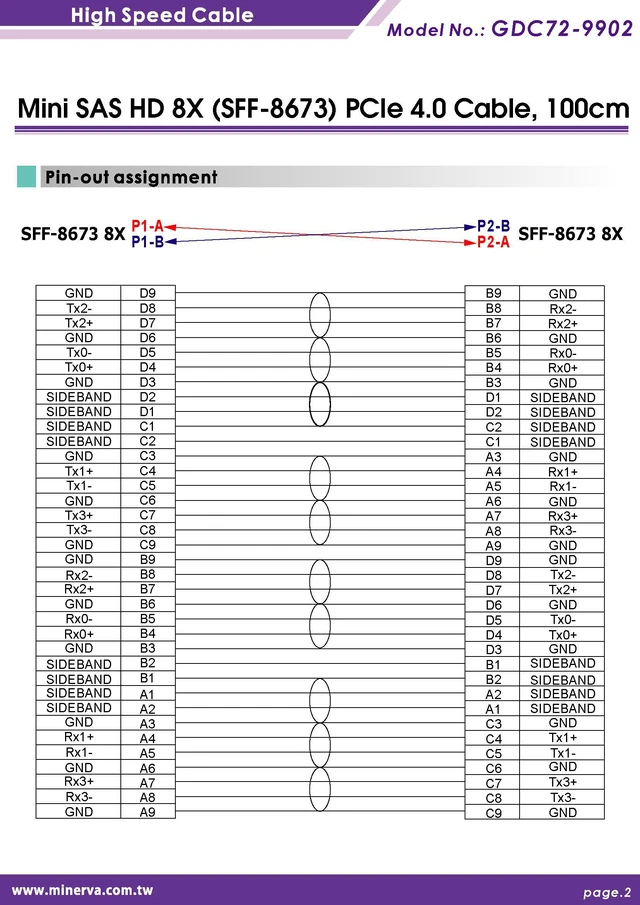

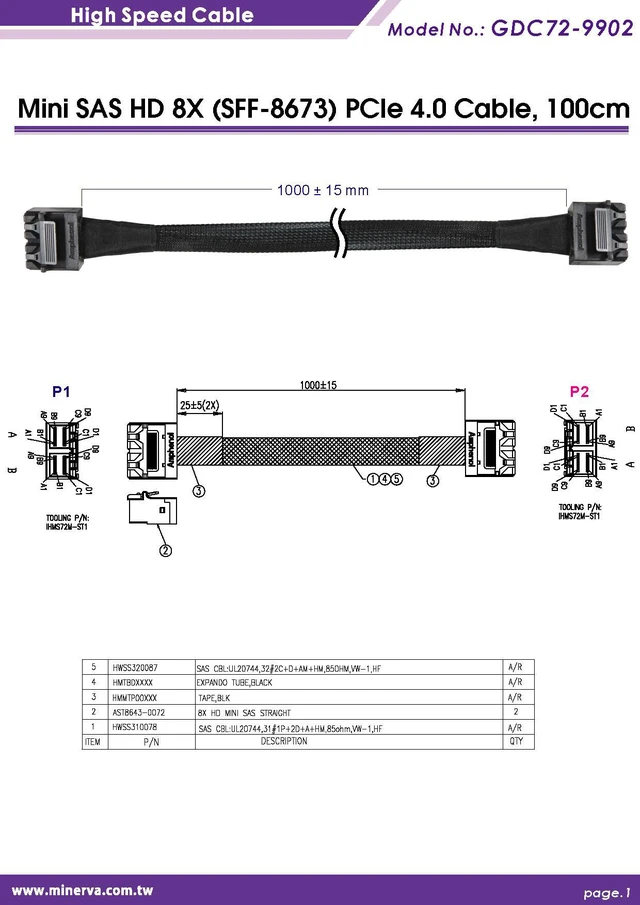

Product Description: MINI SAS HD 8X PCIe 4.0 to MINI SAS HD 8X Cable
Cable Length: 100CM


#GD2807A
Adapter:

Features:
* U. 2 dual port to SFF-8673 1x2, 4X (Internal Mini SAS HD) convert
* Built-in SFF-8673 1x2, 4X, 30 connector
* Built-in two U. 2 SFF-8639, 30u connector
* Built-in two 12V Hot Plug Power with eFuse protection for U. 2 dual port
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Built-in two 3.3V Load Switch protection for U. 2 dual port 3.3V aux
* Supports U. 2 to PCIe CLKREQ#, WAKE# connection with Buffers

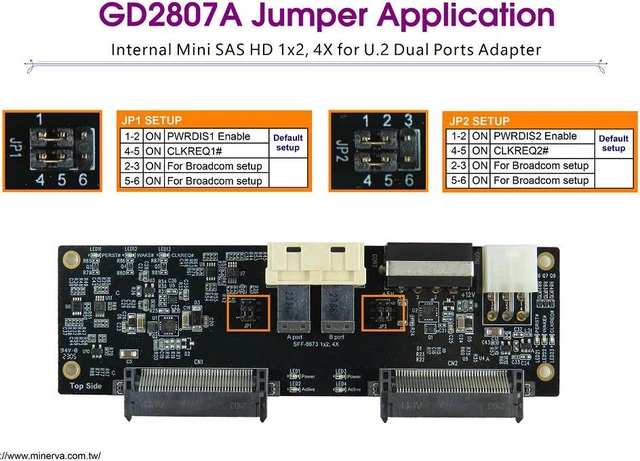

* Supports U. 2 PWRDIS function Implementation
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* LED1, LED3 Green LED on indicates U. 2 NVMe SSD power ready
* LED2, LED4 Red LED Blinking indicates U. 2 active status
* LED11, LED21 Red OFF indicates PERST# Normal (Function intentionally inverted)
* LED12, LED22 Red OFF indicates WAKE# Normal (Function intentionally inverted)
* LED13, LED23 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)

Specifications

:
* Compliant with NVM Express 1.4
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-9402 Rev 1.1
* Compliant with SFF-TA-8613 R 3.5. 4_CB


Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
