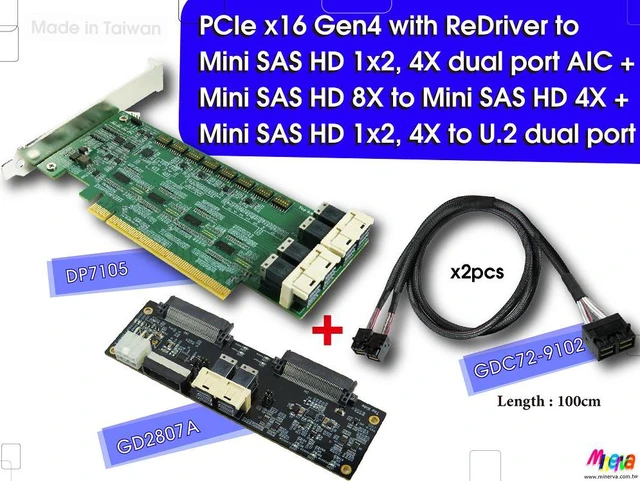

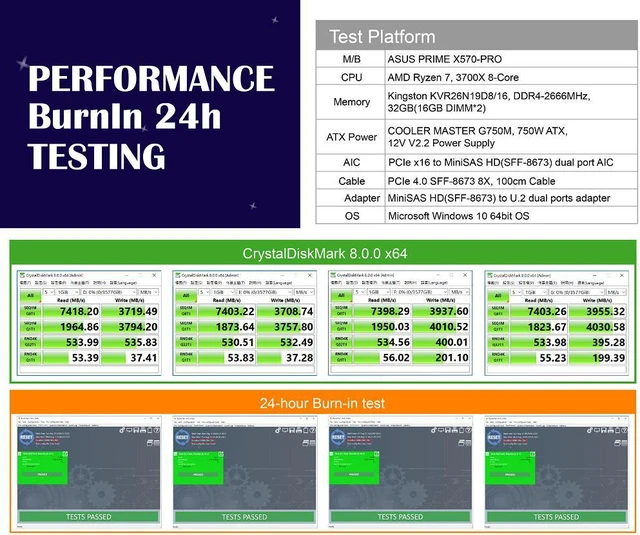

PCIe x16 Gen4 with ReDriver to Mini SAS HD 1x2, 4X dual port AIC & Mini SAS HD 8X to Mini SAS HD 4X, x2 Cable, 100cm & Mini SAS HD 8X to U.2 dual port

#DP7105 AIC
Features:
* Internal Mini SAS HD 1x2, 4X(SFF-8673) dual port to PCIe x16 Gen4 convert
* Built-in SFF-8673 1x2, 4X dual port connector with 30u( 0.38 um) min Au mating area plating
* Input +12V, + 3.3V, 3.3VAUX with TVS protection
* Built-in +12V to 3.3V _IN, 5.5A current PWM Power controller
* Built-in 3.3V _IN Power Load Switch for ReDriver controller Power Protection.
* PCIe 4.0 16-lane signals input and output with ESD protection

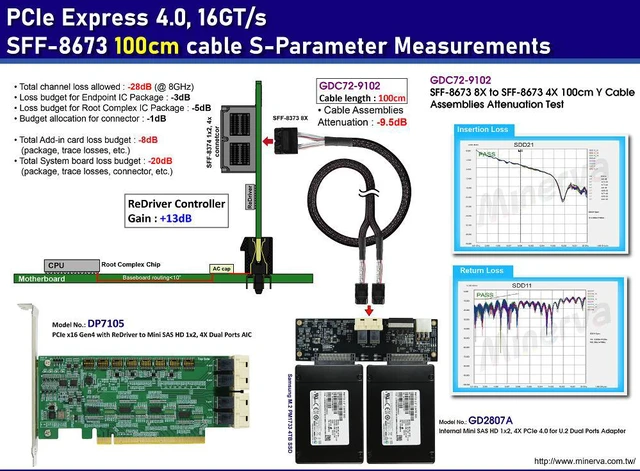

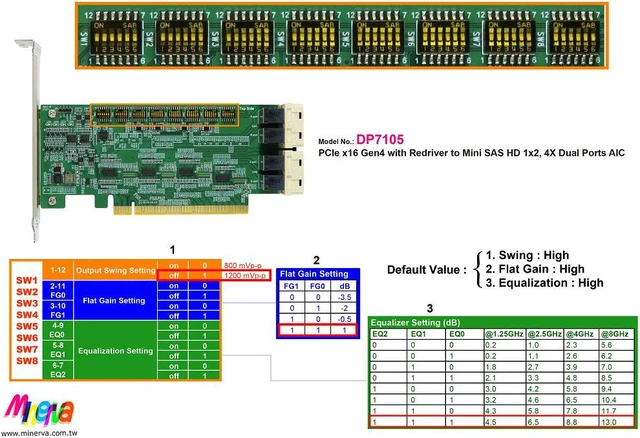

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals and may provides programmable linear equalization, output swing and flat gain
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SFF-8673 dual port to drive longer cable length.
It may be buffered and fanned out to the SFF-8673 dual port clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SFF-8673 dual port SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote SFF-8673 dual port Reset signals.
* Supports PCIe PERST# management to control SFF-8673 dual port Reset signals.
* Built-in PERST# Bus Buffer to be used longer cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used longer cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used longer cable length.
* LED1 Green LED on indicates AIC ready
* LED2 Red OFF indicates WAKE# Normal (Function intentionally inverted)
* LED3 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)
* LED4 Red OFF indicates PERST# Normal (Function intentionally inverted)
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0 a


Specificationa:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with Support SFF-8613Rev 3.5


Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

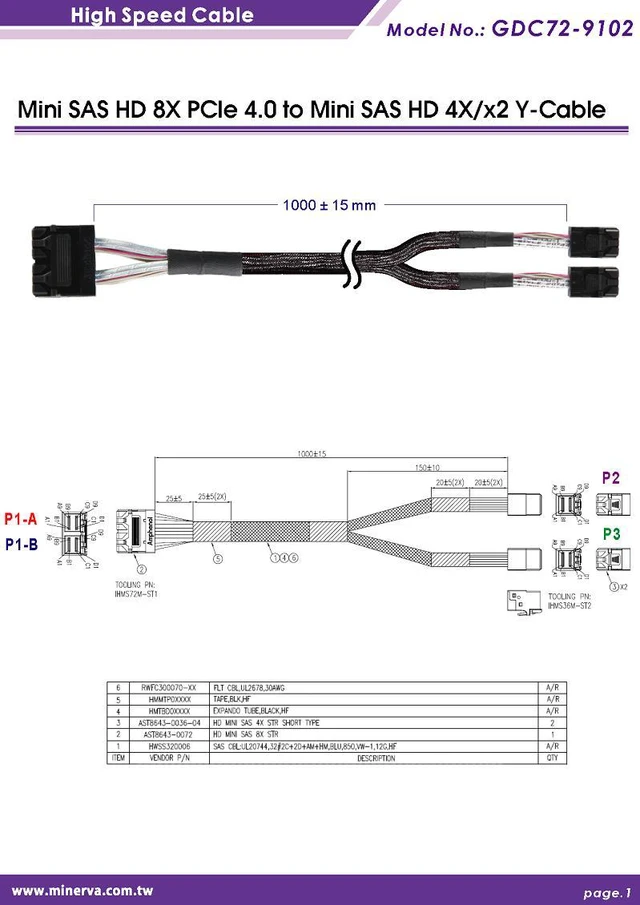

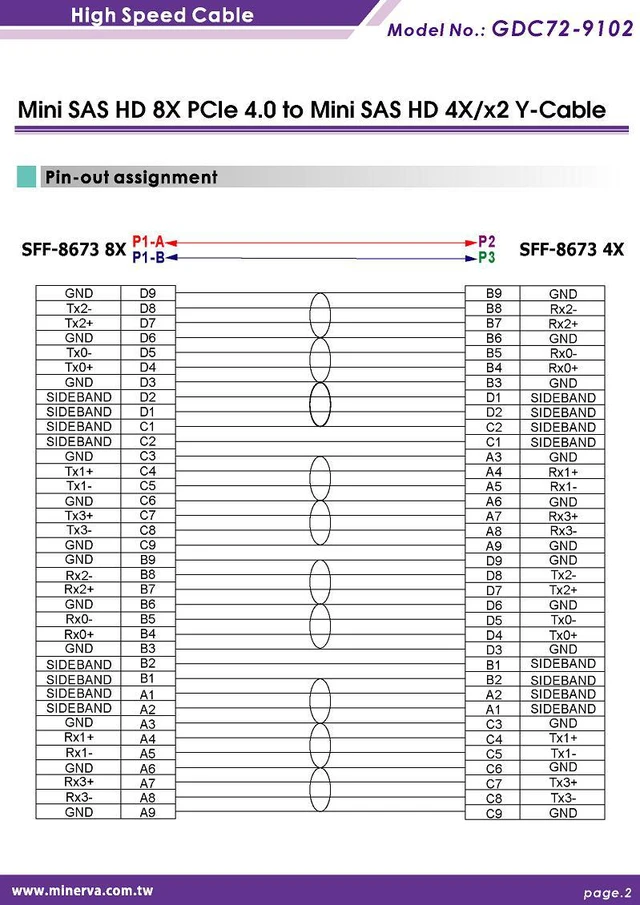

Part Number: GDC72-9102
Product Description: MINI SAS HD 8X to MINI SAS HD 4X, x2 Y Cable x2pcs
Cable Length: 100CM

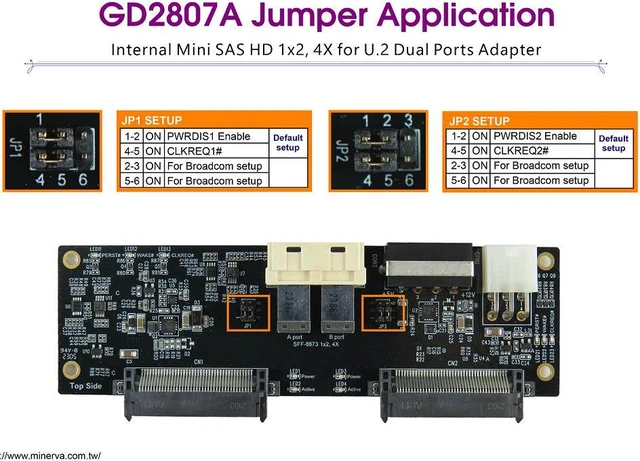

#GD2807A
Adapter:

Features:
* U. 2 dual port to SFF-8673 1x2, 4X (Internal Mini SAS HD) convert
* Built-in SFF-8673 1x2, 4X, 30 connector
* Built-in two U. 2 SFF-8639, 30u connector
* Built-in two 12V Hot Plug Power with eFuse protection for U. 2 dual port
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Built-in two 3.3V Load Switch protection for U. 2 dual port 3.3V aux
* Supports U. 2 to PCIe CLKREQ#, WAKE# connection with Buffers
* Supports U. 2 PWRDIS function Implementation
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* LED1, LED3 Green LED on indicates U. 2 NVMe SSD power ready
* LED2, LED4 Red LED Blinking indicates U. 2 active status
* LED11, LED21 Red OFF indicates PERST# Normal (Function intentionally inverted)
* LED12, LED22 Red OFF indicates WAKE# Normal (Function intentionally inverted)
* LED13, LED23 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)

Specifications

:
* Compliant with NVM Express 1.4
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-9402 Rev 1.1
* Compliant with SFF-TA-8613 R 3.5. 4_CB


Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
