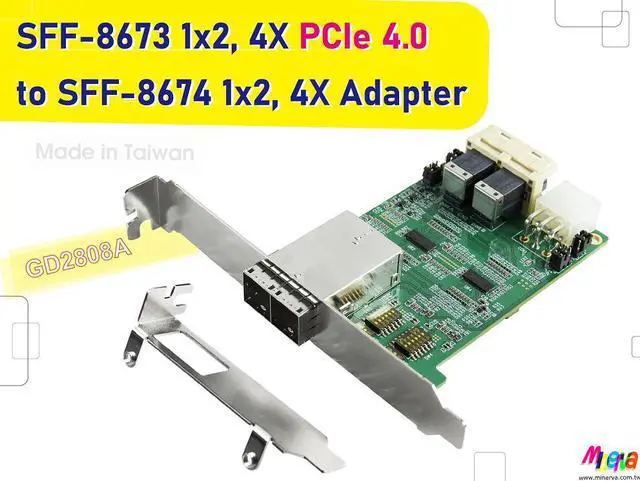

Internal MINI SAS HD to External MINI SAS HD for Broadcom 95xx Series, 96xx Series AIC

#GD2808A AIC

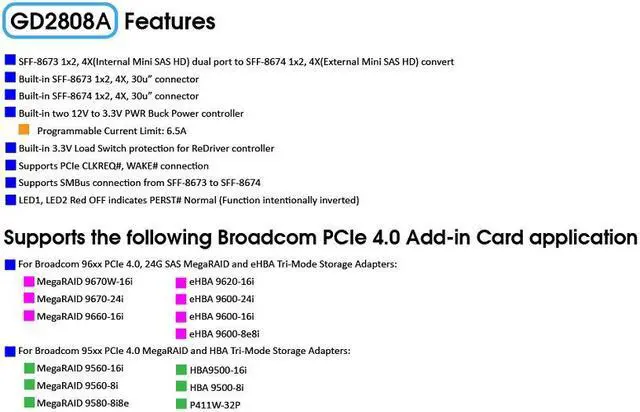

Features:

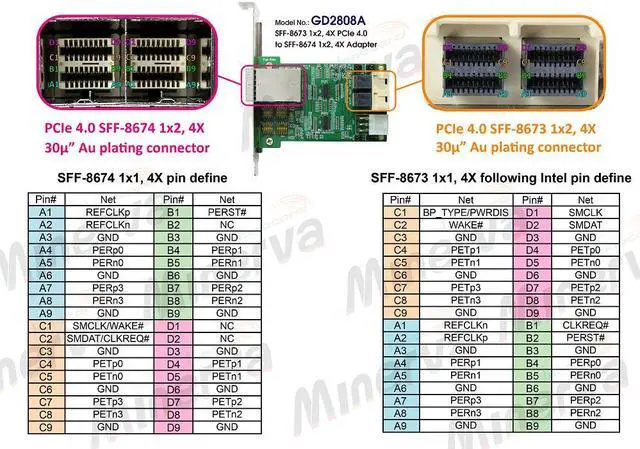

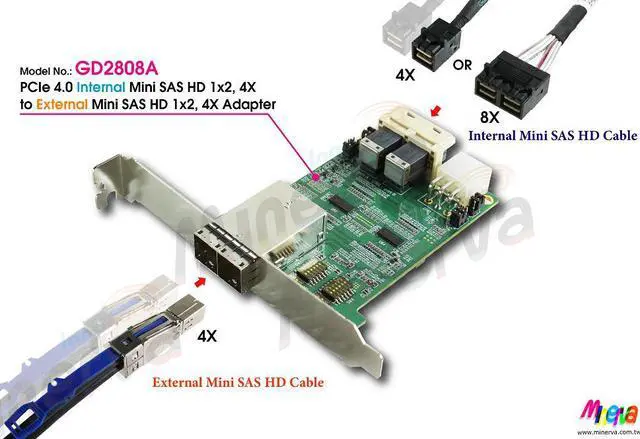

* SFF-8673 1x2, 4X (Internal Mini SAS HD) dual port to SFF-8674 1x2, 4X (External Mini SAS HD) convert
* Built-in SFF-8673 1x2, 4X, 30u connector
* Built-in SFF-8674 1x2, 4X, 30u connector
* Built-in two 12V to 3.3V PWR Buck Power controller
* Programmable Current Limit: 6.5A
* Built-in 3.3V Load Switch protection for ReDriver controller
* Supports PCIe CLKREQ#, WAKE# connection
* Supports SMBus connection from SFF-8673 to SFF-8674
* LED1, LED2 Red OFF indicates PERST# Normal (Function intentionally inverted)


Specificationa:
* Compliant with NVM Express 1.4
* Support PCI Express Base Specification Rev 4.0
* Compliant with SFF-9402 Rev 1.1
* Compliant with SFF-TA-8613 R 3.5. 4_CB
* Compliant with SFF-TA-8614 R 3.4 _CB


Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs

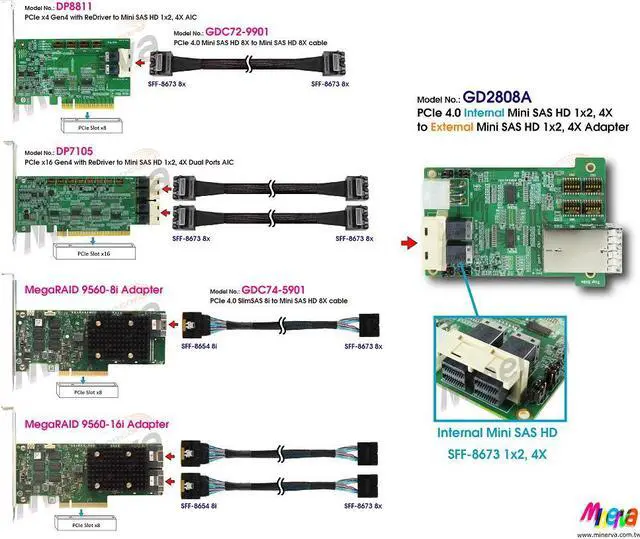

Supports the following Broadcom PCIe 4.0 Add-in Card application:
* For Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA
Tri-Mode Storage Adapters:
MegaRAID 9670W-16i
MegaRAID 9670-24i
MegaRAID 9660-16i
eHBA 9620-16i
eHBA 9600-24i
eHBA 9600-16i
eHBA 9600-8e8i

* For Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters:
MegaRAID 9560-16i
MegaRAID 9560-8i
MegaRAID 9580-8i8e
HBA9500-16i
HBA 9500-8i
P411W-32P
