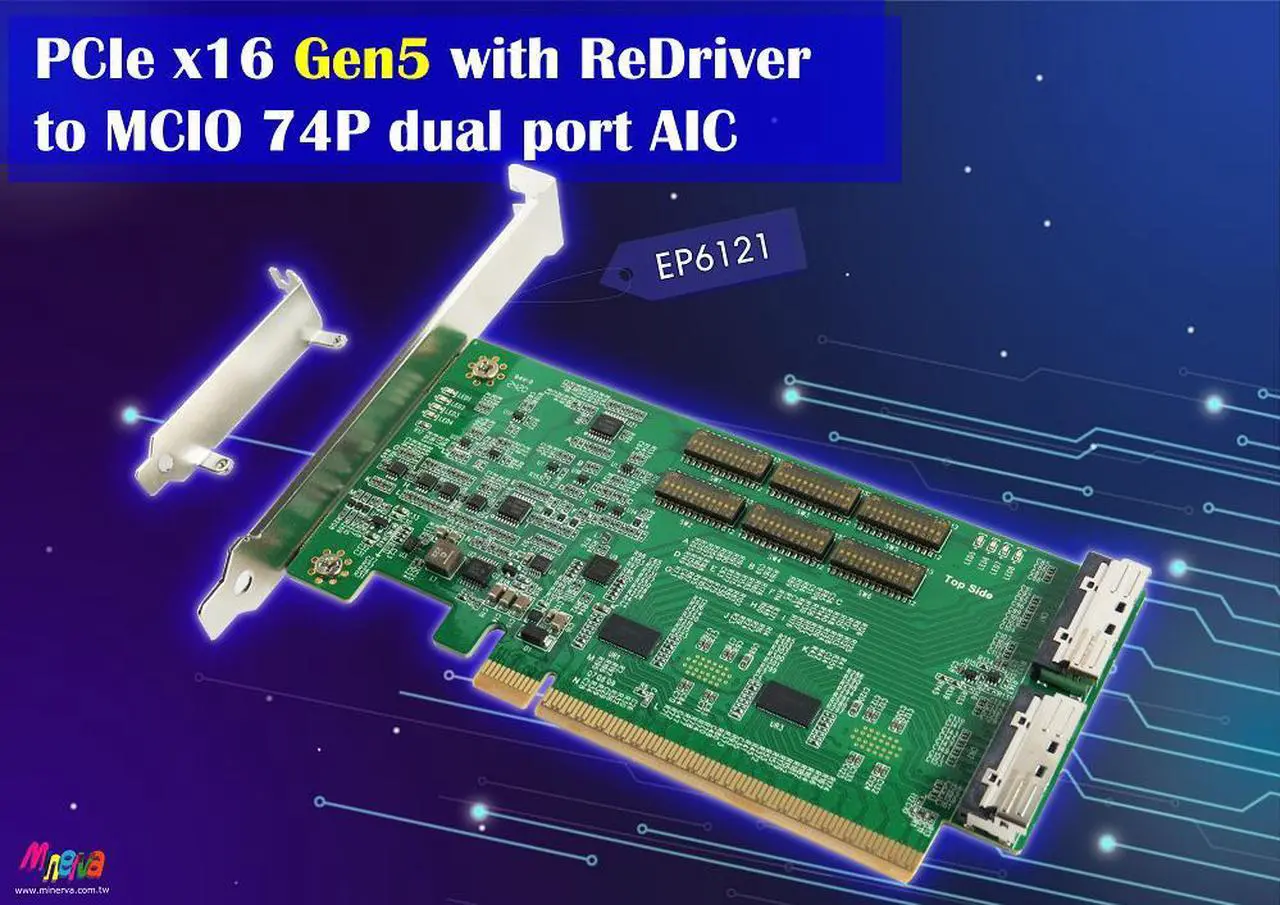

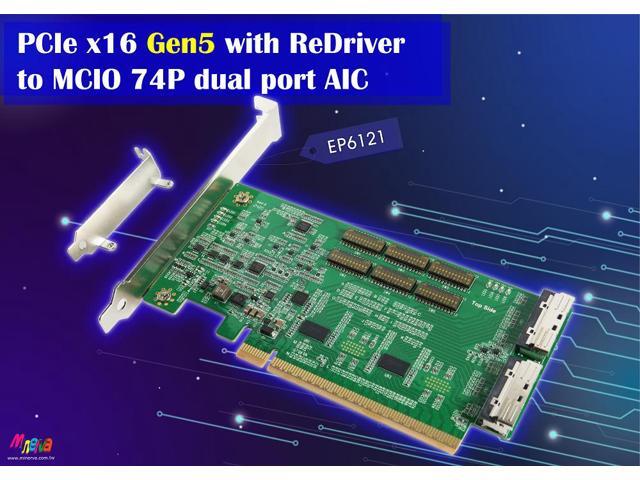

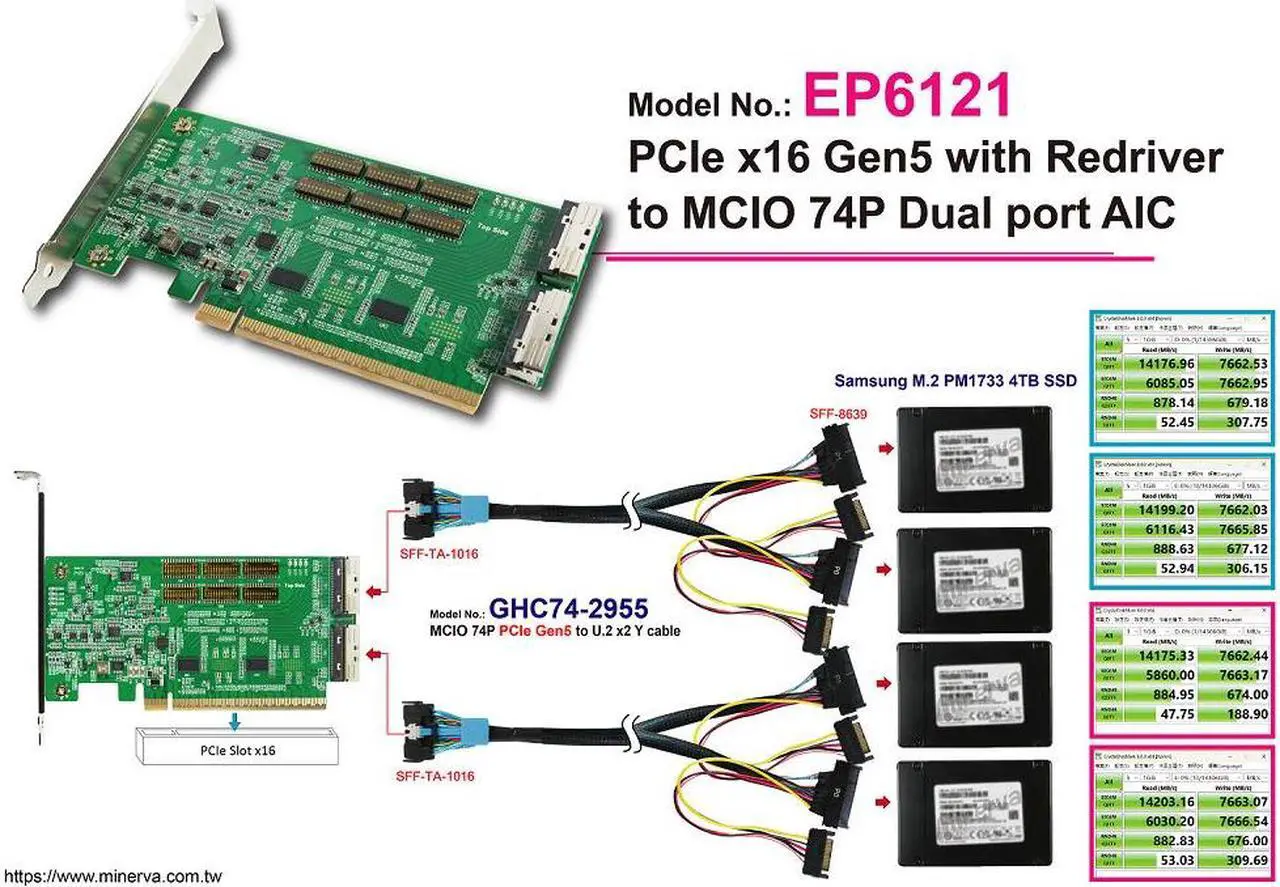

PCIe x16 Gen 5 with ReDriver to SFF-TA-1016 dual port

#EP6121 adapter:
Features:
* MCIO 74P to PCIe x16 Gen5 convert
* Built-in MCIO 74P dual port connectors with 30u( 0.38 um) min Au mating area plating
* Input PCIe CEM +12V power with TVS protection, 400W Peak Pulse Power Dissipation
* PCIe CEM +12V power with high side protection controller to enable N-MOS FET for 12V, 5A output
* PCIe CEM +12V PWM buck to 3.3V, 5A output with Eco-mode
* 3.3V, 5A Load Switch With Automatic Restart after Supervisor Fault Detection when Enabled to protect PCIe 5.0 ReDriver controller
* Input PCIe CEM power 3.3V aux with Load Switch protection for Bus Buffer IC.

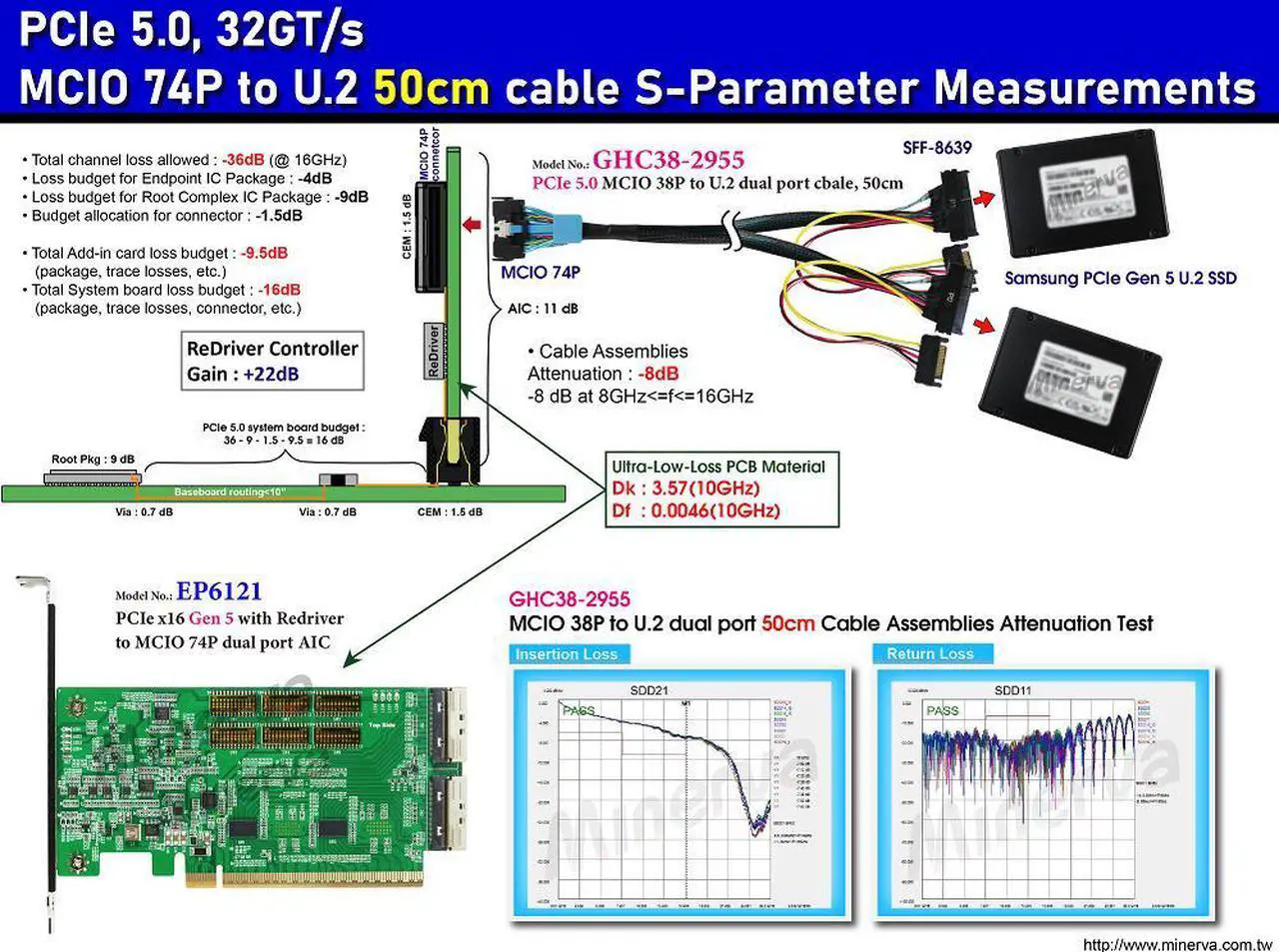

* Built-in ReDriver controller to extend PCIe 5.0, 32GT/s 16 lanes signals and may provide programmable linear equalization, flat gain.

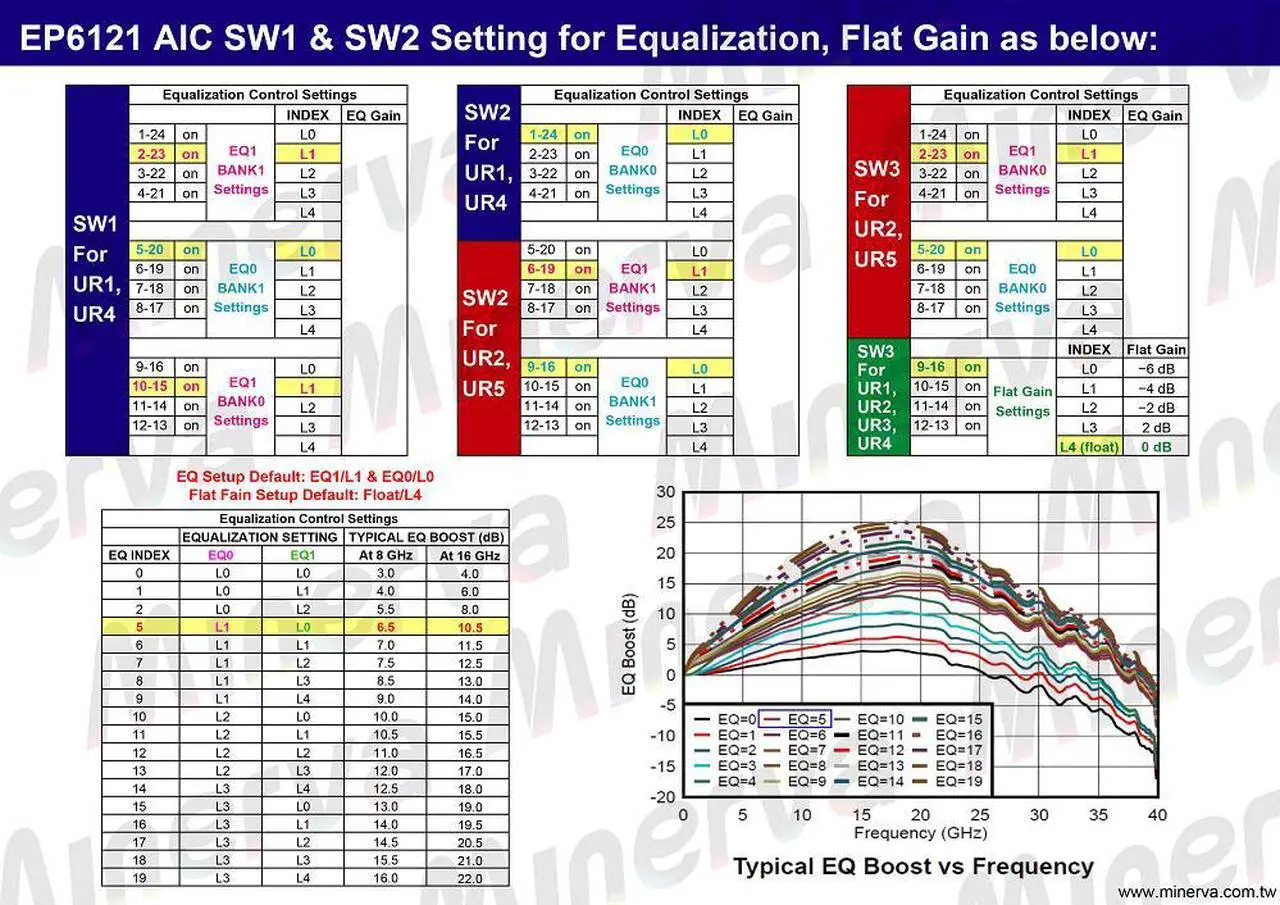

* ReDriver CTLE boosts up to 22 dB at 16 GHz
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
* Built-in PCIe 100MHz clock buffer(Address: 0x6C) for MCIO 74P dual port to drive PCB more trace reach and longer cable length.
* Built-in SMBus Switch(Address: 0x70) with Reset funtion for MCIO 74P dual port SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote MCIO 74P dual port Reset signals
* Built-in PERST# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.
* Supports PCIe PERST# for OOB (out of band) management to remote MCIO 74P dual port Reset signals.
* Built-in WAKE# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.
* LED1 Green ON indicates +12V ready
* LED2 Green ON indicates + 3.3V ready
* LED3 Green ON indicates Vaux ready
* LED4 Red ON indicates Input +12V Error
* LED5 Red OFF indicates PERST# Normal (Function intentionally inverted)
* LED6 Red OFF indicates WAKE# Normal (Function intentionally inverted)
* LED7 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)
* LED8 Green ON indicates Add-in card presnt

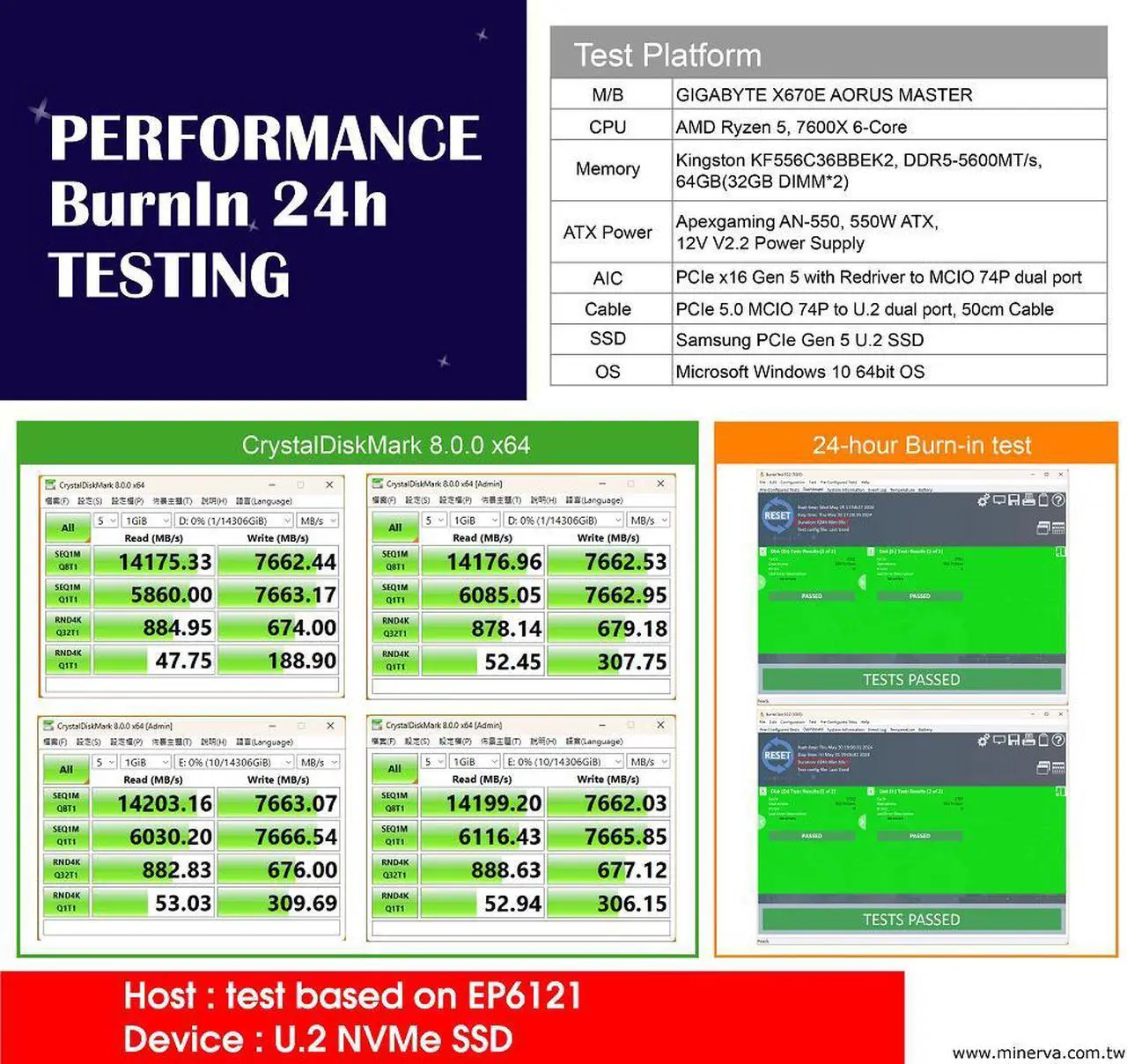

Specifications

:
* PCI Express Base Specification Rev 5.0
* PCIe_CEM_R 5.1 _V 1.0 _08072023_NCB
* SFF-TA-1016 Rev 1.2

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
