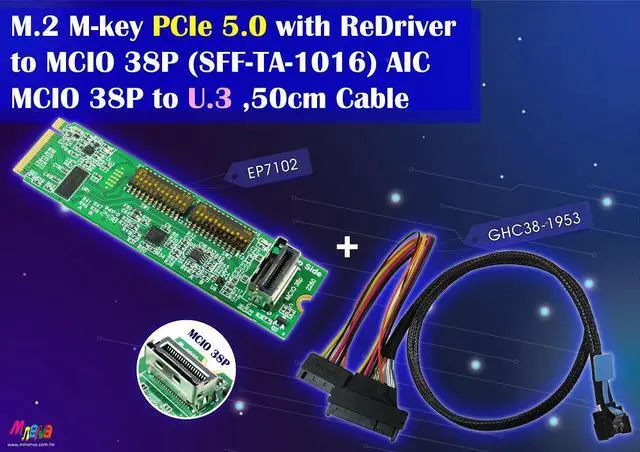

M.2 PCIe 5.0 with ReDriver to MCIO 38P + MCIO 38P (PCIe 5.0) to U.3 Cable, 50cm Kits

#EP7102 adapter:
Features:
* Built- in 3.3V, 3A Load Switch with Reverse Current Protection and Controlled Turn-On
* MCIO 38P (SFF-TA-1016) to M. 2 PCIe 5.0 convert
* Built- in MCIO 38P connector with 30u( 0.76 um) min Au mating area plating
* Built- in PCIe ReDriver to extend PCIe 5.0, 32GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
The REFCL
Kp signal, it is tied to MCIO 38P B11 pin
The REFCL
Kn signal, it is tied to MCIO 38P B12 pin
* Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
The SMCLK signal, it is tied to MCIO 38P A8 pin
The SMDAT signal, it is tied to MCIO 38P A9 pin
* Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin
* The WAKE# signal, it is tied to MCIO 38P B8 pin
* The CLKREQ# signal, it is tied to MCIO 38P A12 pin
* The PWRDIS signal signal, it is tied to MCIO 38P B9 pin
* LED1 Green ON indicates 3.3V ready
* LED2 Red from ON to OFF indicates PERST# signals normal

Specifications

* PCI Express Base Specification Rev 5.0
* PCIe_CEM_R 5.1 _V 1.0 _08072023_NCB
* Compliant with SFF-TA-1016 Rev 1.2
* PCI_Express_M. 2_Spec_Rev 5.1

Operating system support:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Applications:
* Windows 8 & 8.1
* Windows 10
* Windows 11
* UEFI 2.3. 1 or later

Part Number: GHC38-1953

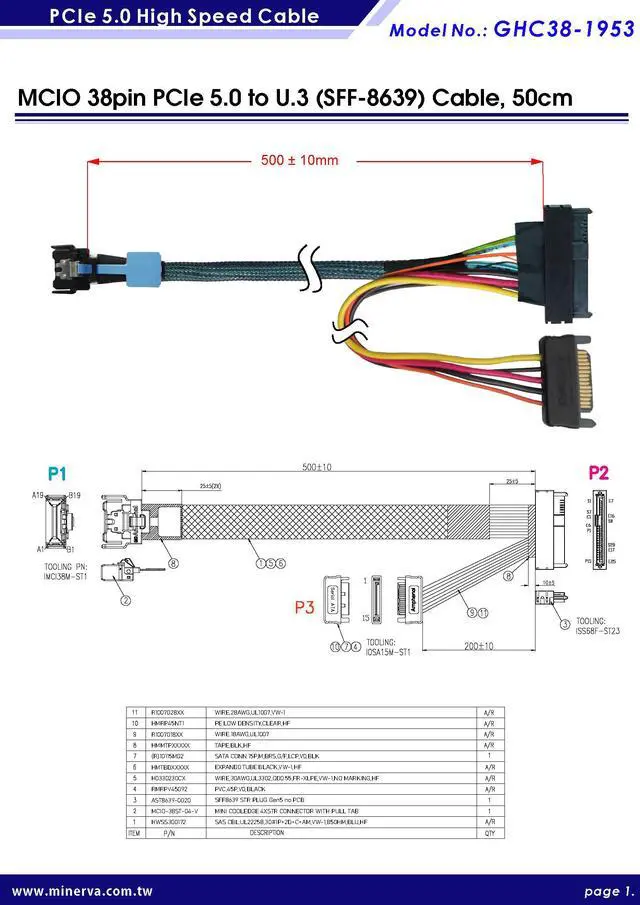

Product Description: MCIO 38P PCIe 5.0 to U. 3 (SFF-8639) Cable
Cable Length: 50CM
