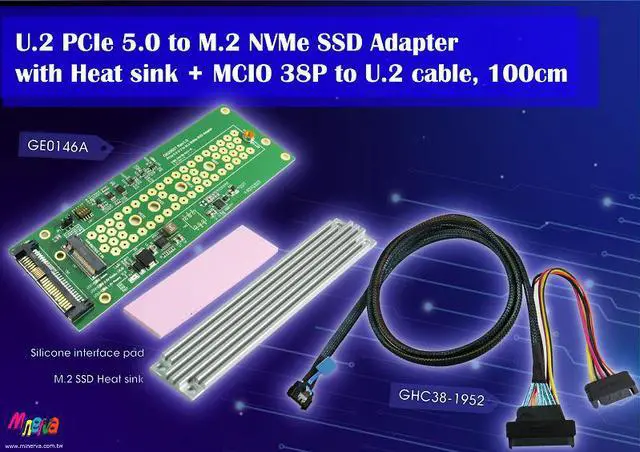

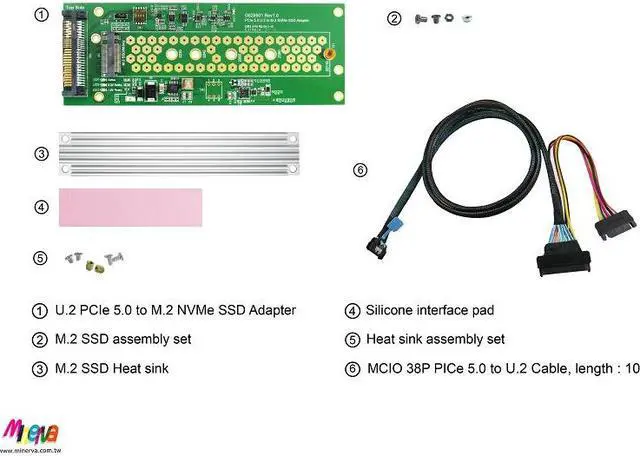

MCIO 38P PCIe 5.0 to U.2, 100cm cable+ PCIe 5.0 U.2 to M.2 Adapter with Hot Plug Kits

##Part

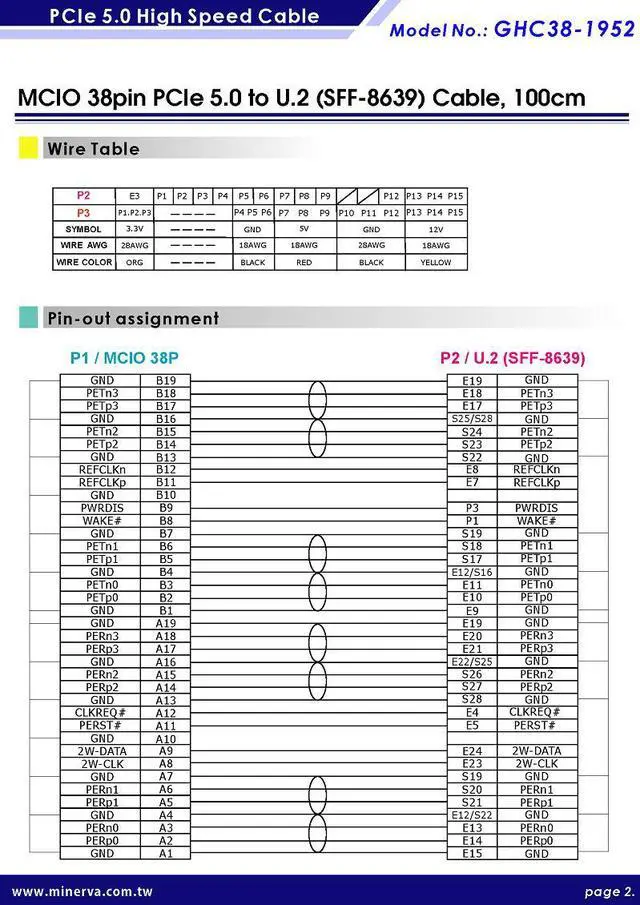

Number: GHC38-1952

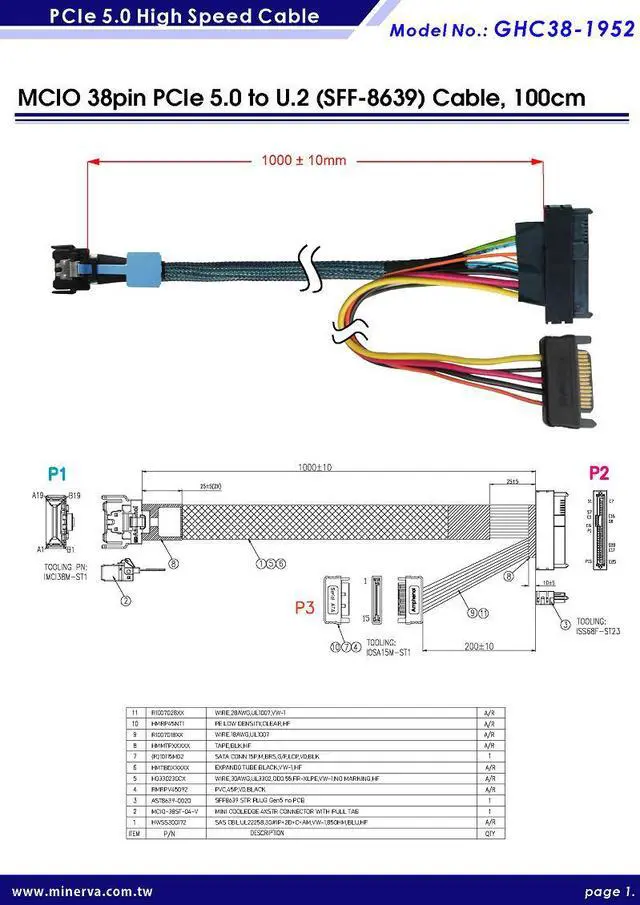

Product Description: MCIO 38P PCIe 5.0 to U. 2 (SFF-8639) Cable
Cable Length: 100CM


#GE0146A adapter:
Features:
* M. 2 NVMe to U. 2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* 12V Input power rail built-in 5A FUSE
* 12V Input power rail with 400W Bidirectional TVS
* 12V Input power rail built-in 5A Schottky barrier rectifer
* PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
* 5.5A maximum output current
* Output Discharge Control
* The output overcurrent protection (OCP)
* Uundervoltage lock out protection (UVLO) monitor
* Over/Under Voltage Protection
* Thermal shutdown protection
* ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M. 2 SSD protection
* Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32m ohm with Reverse current protection
* Supports M. 2 CLKREQ#, WAKE# Voltage level shift between 3.3V or 1.8V
* Supports M. 2 / 1.8V to U. 2/ 3.3V SMBus Level Shift, isolated and repeater
* Built-in SMBUS EEPROM 64KB
* LED1 RED LED Blinking indicates M. 2 active status
* LED2 Green LED on indicates 3.3V power ready
* LED3 Green LED on indicates 1.8V power ready
* LED4 Red LED indicates on to off for PCIe PERST# signals implementation

Specifications

* Compliant with NVM Express 2.0
* Support PCI Express Base Specification Rev 5.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI_Express_M. 2_Spec_Rev 5.1 _05012024_NCB
* Compliant with PCIe SFF-8639 Module Specification Rev 5.0
* Compliant with SFF-TA-1001 Rev 1.1

Supports the following form factor M. 2 (NGFF)
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
* Type 22110-D2-B-M: 80mm (L) x 22mm (W)
