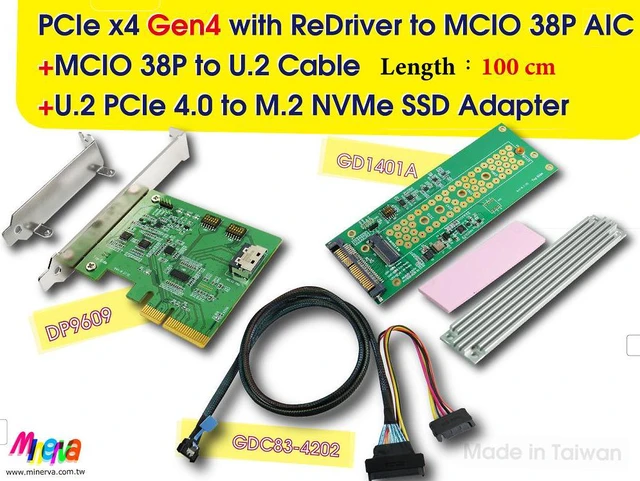

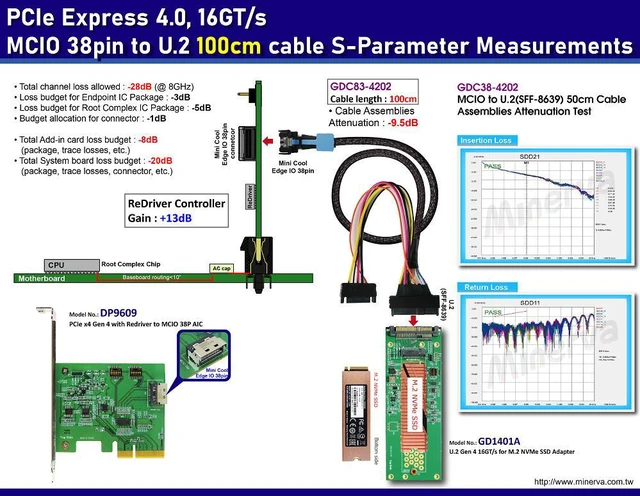

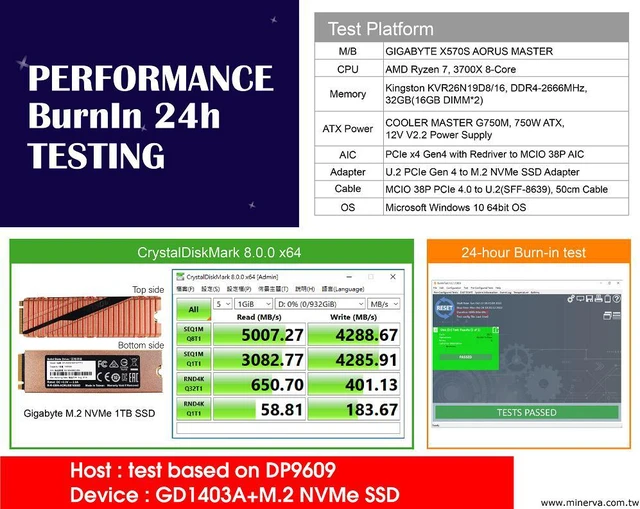

PCIe x4 Gen4 with ReDriver to MCIO 38P AIC & MCIO 38P to U.2, 100 cm Cable & U.2 to M.2 SSD Adapter with Heat Sink KIT

#DP9609 adapter:
Features:
* Supports Server BMC management
* Supports Industrial Grade temerature range
* MCIO 38P to PCI Express x4 Gen4 convert
* Built- in SFF-TA-1016/MCIO 38P, 30uconnector

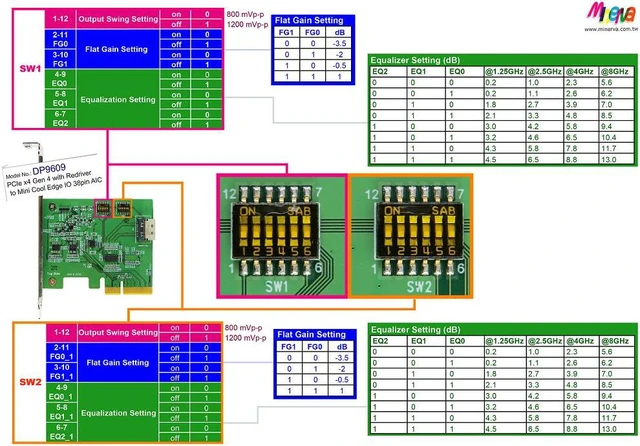

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C (7 bits)
* Built- in SMBus Switch,
Address: 0x71 (7 bits)
* Built- in SMBus I/O Expander,
Address: 0x20 (7 bits) for MCIO 38P PWRDIS control
* Supports PCIe PERST# for OOB (out of band) management to remote MCIO 38P Reset
* Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and more longer cable
* Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and more longer cable
* LED1 Green LED on indicates AIC ready
* LED2 Green LED on to off indicates PCIe WAKE# signals
* LED3 Green LED on to off indicates PCIe CLKREQ# signals
* LED4 Green LED on to off indicates PCIe PERST# signals

Specificationa:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-TA-1016 Specification Version 1.0


Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Part Number: GDC83-4202
Product Description:

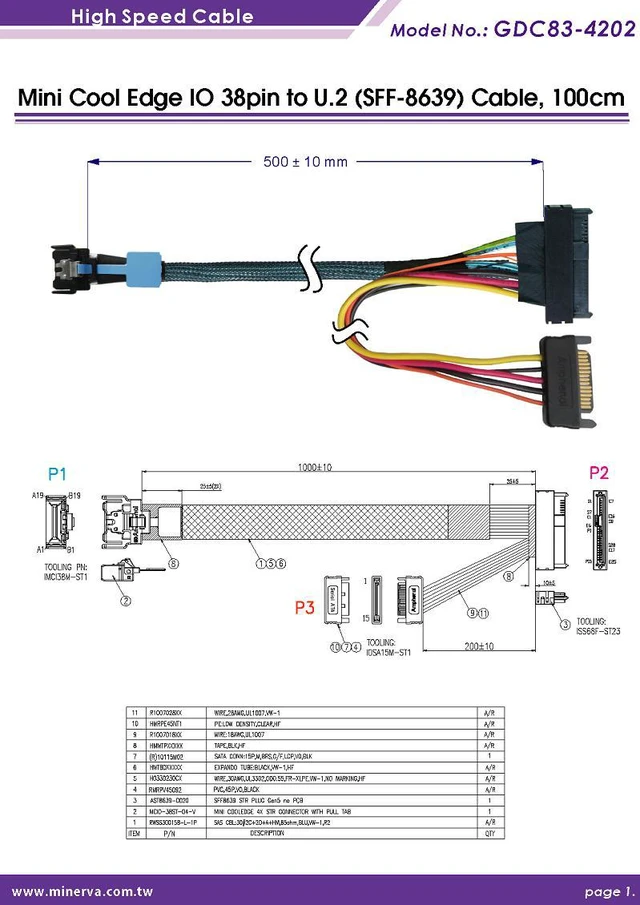

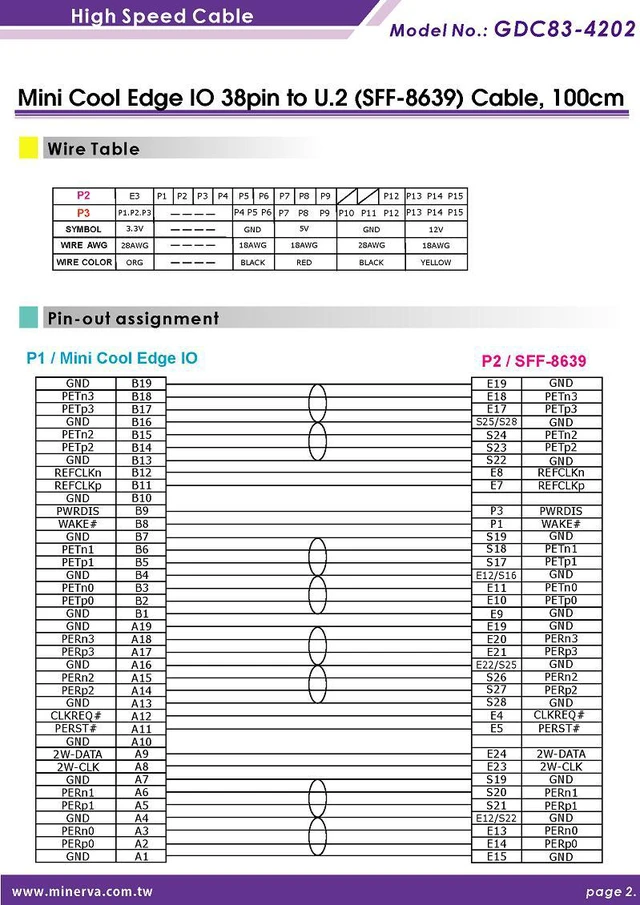

MCIO 38P to U. 2(SFF-8639) Cable
Cable Length: 100CM

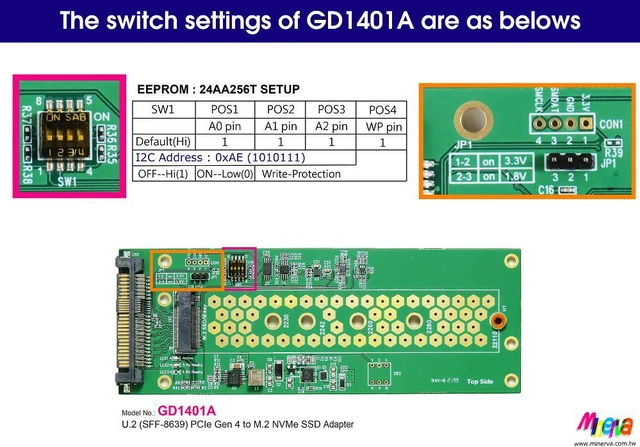

#GD1401A adapter:

Features:
* M. 2 NVMe to U. 2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
* 5.5A maximum output current
* Output Discharge Control
* The output overcurrent protection (OCP)
* Uundervoltage lock out protection (UVLO) monitor
* Over/Under Vlotage Protection
* Thermal shutdown protection
* ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M. 2 SSD protection
* Supports M. 2 3.3V & 1.8V supply
* Supports M. 2 VIO_CFG Signal
* Supports M. 2 PERST# Signal 3.3V AND 1.8V Switching
* Supports M. 2 CLKREQ# Signal 3.3V AND 1.8V Switching
* Supports M. 2 WAKE# Signal 3.3V AND 1.8V Switching
* Supports PWRDIS Signal from U. 2 pin to M. 2 pin
* Supports M. 2 / 1.8V to U. 2/ 3.3V SMBCLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to U. 2 / 3.3V SMBCLK, SMBDATA isolated, repeater
* Built-in SMBUS EEPROM 64KB
* D1 Green LED on indicates M. 2 NVMe SSD power ready
* D2 RED LED Blinking indicates M. 2 active status

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev 1.1

Supports the following form factor M. 2
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
* Type 22110-D2-B-M: 110mm (L) x 22mm (W)
