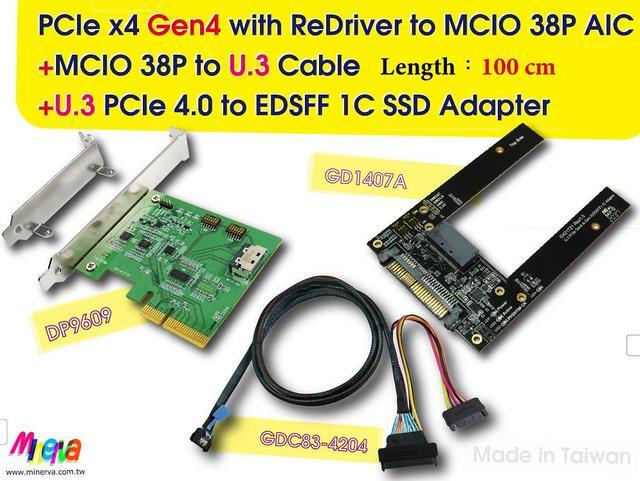

PCIe x4 Gen4 with ReDriver to MCIO 38P AIC & MCIO 38P to U.3, 100 cm Cable & U.3 to EDSFF 1C SSD Adapter KIT

#DP9609 adapter:
Features:
* Supports Server BMC management
* Supports Industrial Grade temerature range
* MCIO 38P to PCI Express x4 Gen4 convert
* Built- in SFF-TA-1016/MCIO 38P, 30uconnector

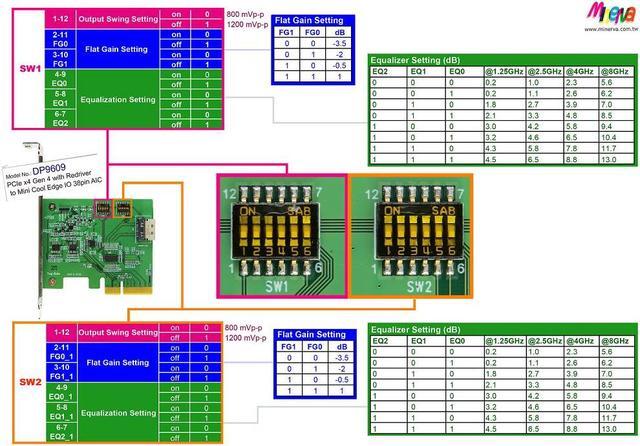

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C (7 bits)
* Built- in SMBus Switch,
Address: 0x71 (7 bits)
* Built- in SMBus I/O Expander,
Address: 0x20 (7 bits) for MCIO 38P PWRDIS control
* Supports PCIe PERST# for OOB (out of band) management to remote MCIO 38P Reset
* Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and more longer cable
* Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and more longer cable
* LED1 Green LED on indicates AIC ready
* LED2 Green LED on to off indicates PCIe WAKE# signals
* LED3 Green LED on to off indicates PCIe CLKREQ# signals
* LED4 Green LED on to off indicates PCIe PERST# signals

Specificationa:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-TA-1016 Specification Version 1.0

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Part Number: GDC83-4204

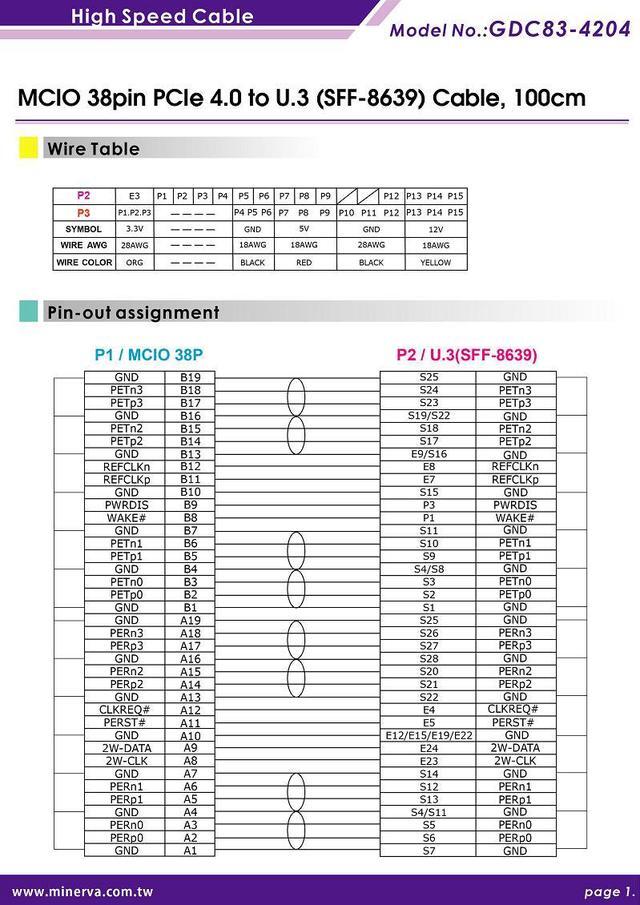

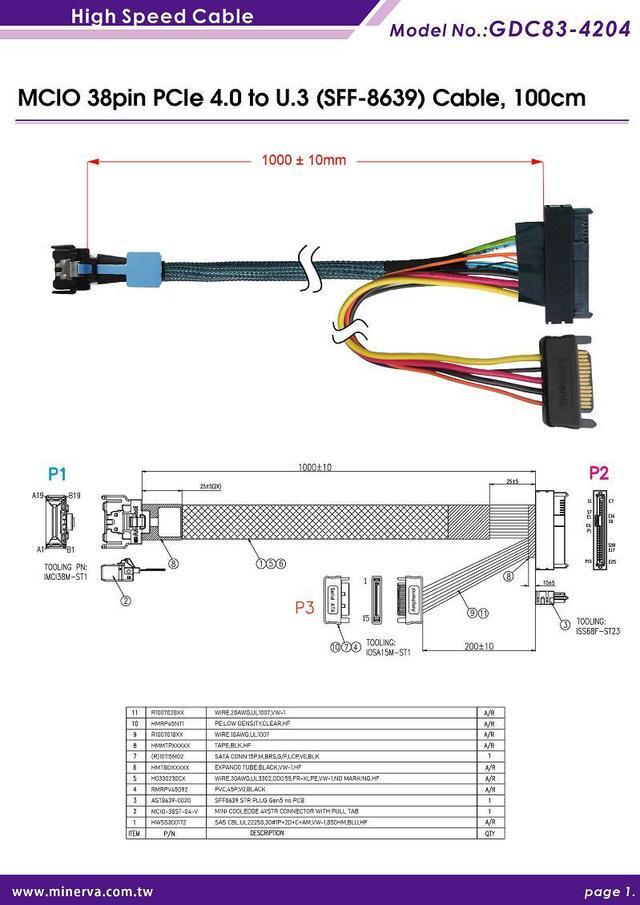

Product Description: MCIO 38P PCIe Gen4 to U. 3 (SFF-8639) Cable
Cable Length: 100CM

#GD1407A" adapter
Features:
* Built-in 12V Hot Plug Power IC with eFuse protection circuit
* Built-in U. 3(SFF-8639) Male connector

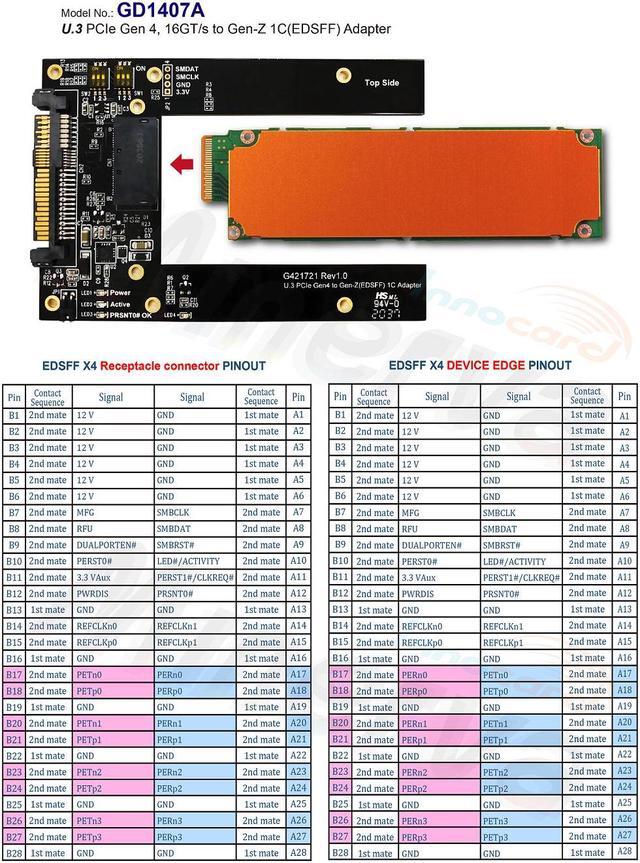

* Built-in EDSFF (Gen-Z) 1C Connector
* Supports SMB_CLK/ SMB_DATA
* Supports PWRDIS
* Supports DualPortEn
* LED1 GREEN indicates 12V Power Ready
* LED2 RED LED Blinking indicates Gen-Z SSD active status
* LED3 GREEN indicates PRSNT0# OK
* LED4 GREEN indicates 3.3V aux Power Ready

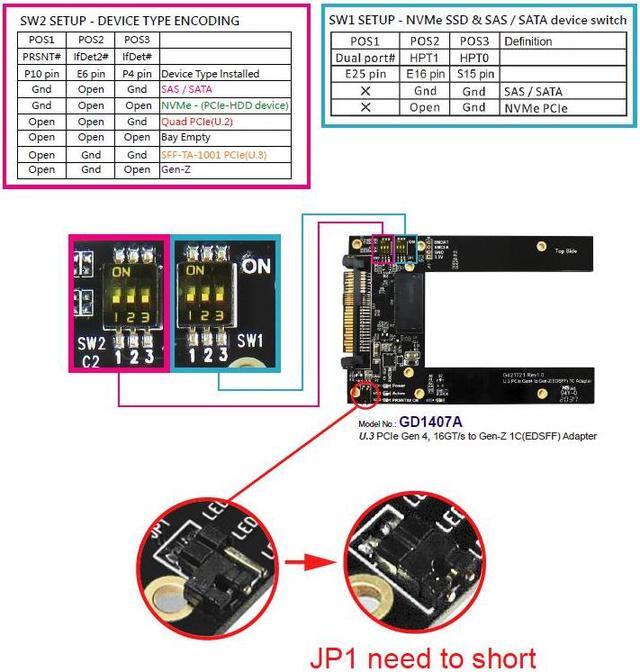

* JP1 pin header must be to setup on, when Host does not supply 3.3V aux

Specifications

:
* Compliant with NVM Express 1.2
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-TA-1002 Specification Multi Lane High Speed Connector Rev 1.3
* Compliant with SFF-TA-1006 Enterprise and Datacenter 1U Short SSD Form Factor Rev 1.4
* Compliant with Gen-Z Scalable Connector Rev 1.1
