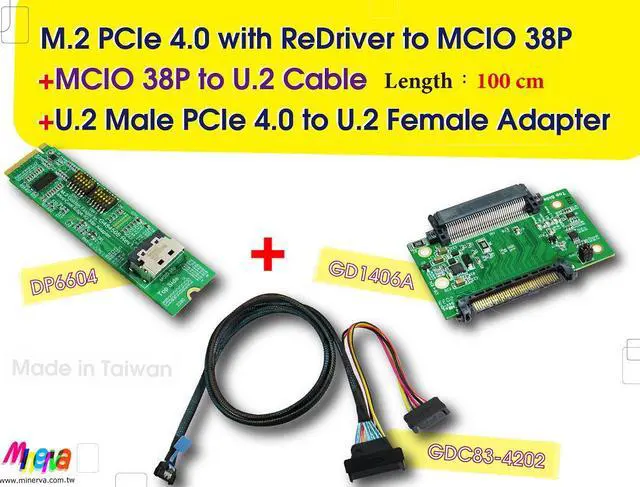

M.2 M-key PCIe 4.0 with ReDriver to MCIO 38P AIC & MCIO 38P to U.2, 100 cm Cable & U.2 Male to U.2 Female Adapter KIT

Be the first to review this product...

www.minerva.com.tw
Designed / Made in Taiwan

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

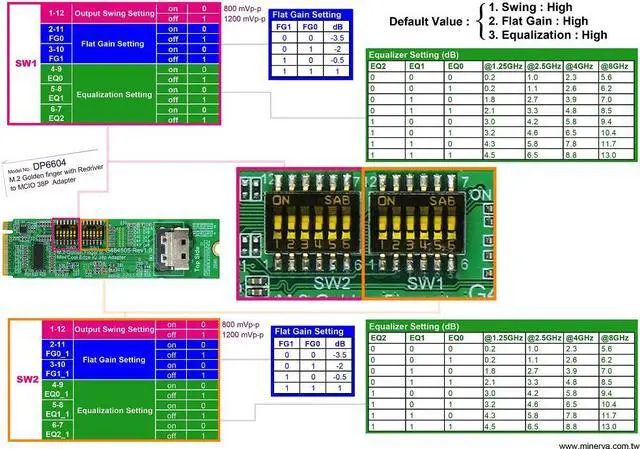

#DP6604
Features:
* MCIO 38P (SFF-TA-1016) to M. 2 PCIe 4.0 convert
* Built- in MCIO 38P connector with 30u( 0.76 um) min Au mating area plating

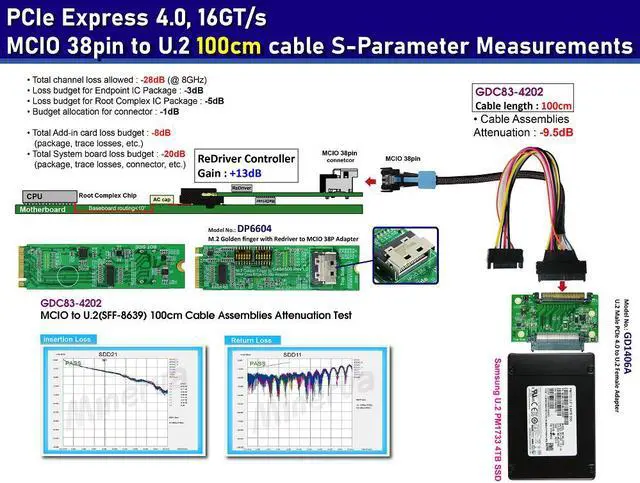

* Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
* Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin
* Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B8 pin
* Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A12 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B9 pin

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-TA-1016 Rev 1.0
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

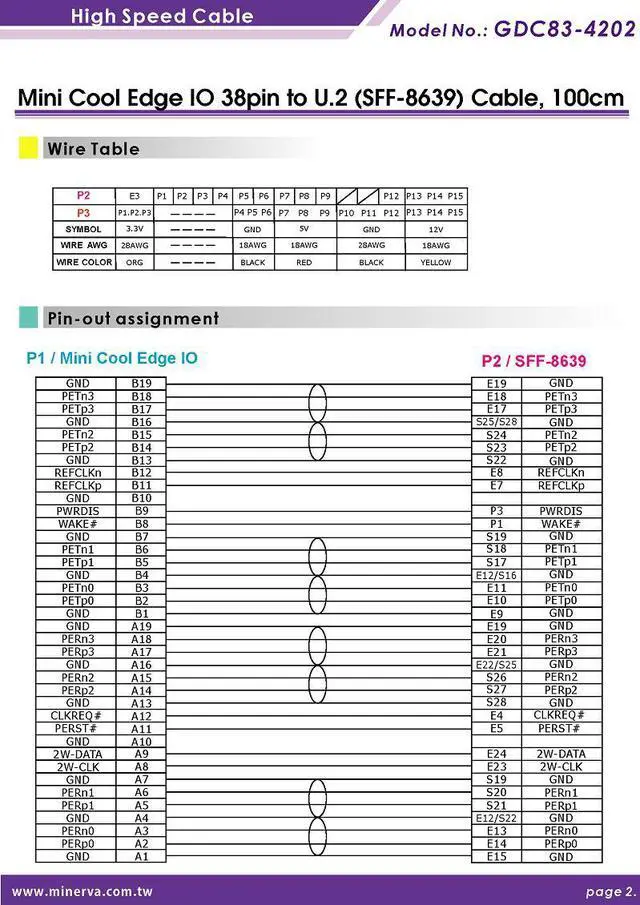

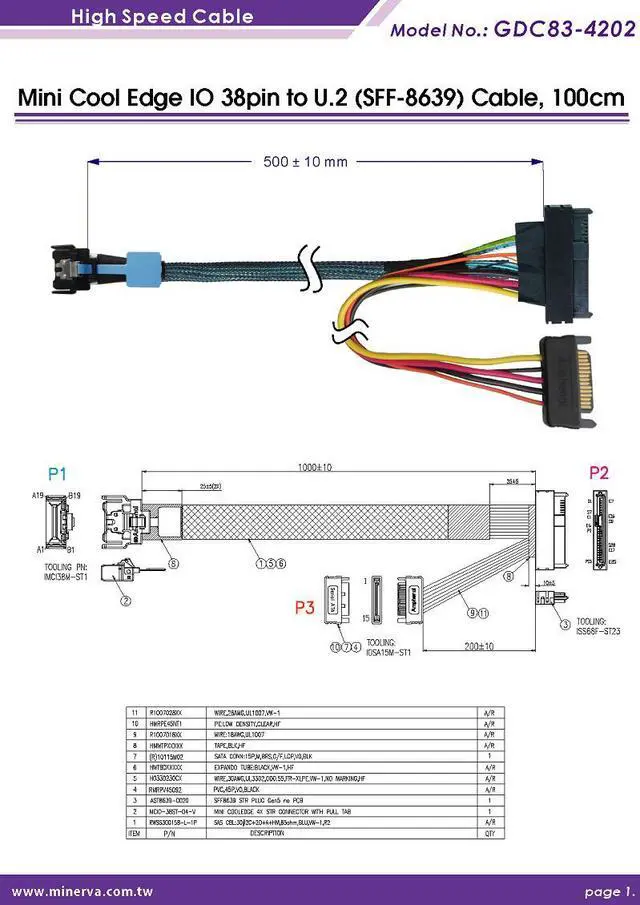

Number: GDC83-4202
Product Description: PCIe Gen4 MCIO 38P to U. 2 (SFF-8639) cable
Cable Length: 100CM

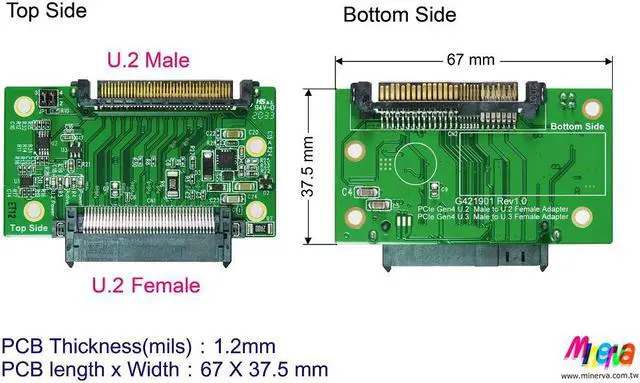

#GD1406A Adapter
Features:
* Built-in SFF-8639 Male connector
* Built-in SFF-8639 Female connector
* Built-in power 12V Hot Plug Power protection IC, can support a maximun continuous current of 6.5A
* Built-in power 5V Load Switch with controlled turn on, can support a maximun continuous current of 5A
* Built-in power 3.3VAUX Load Switch with controlled turn on, can support a maximun continuous current of 500mA
* Supports CLKREQ#, WAKE#, PWRDIS
* Supports SMB_CLK, SMB_DATA
* LED1 Green LED on indicates U. 2 SSD power ready
* LED2 Green LED on indicates SATA SSD power ready
* LED3 RED LED Blinking indicates SSD active status

Details
Changer Type	PCIe Gen4
