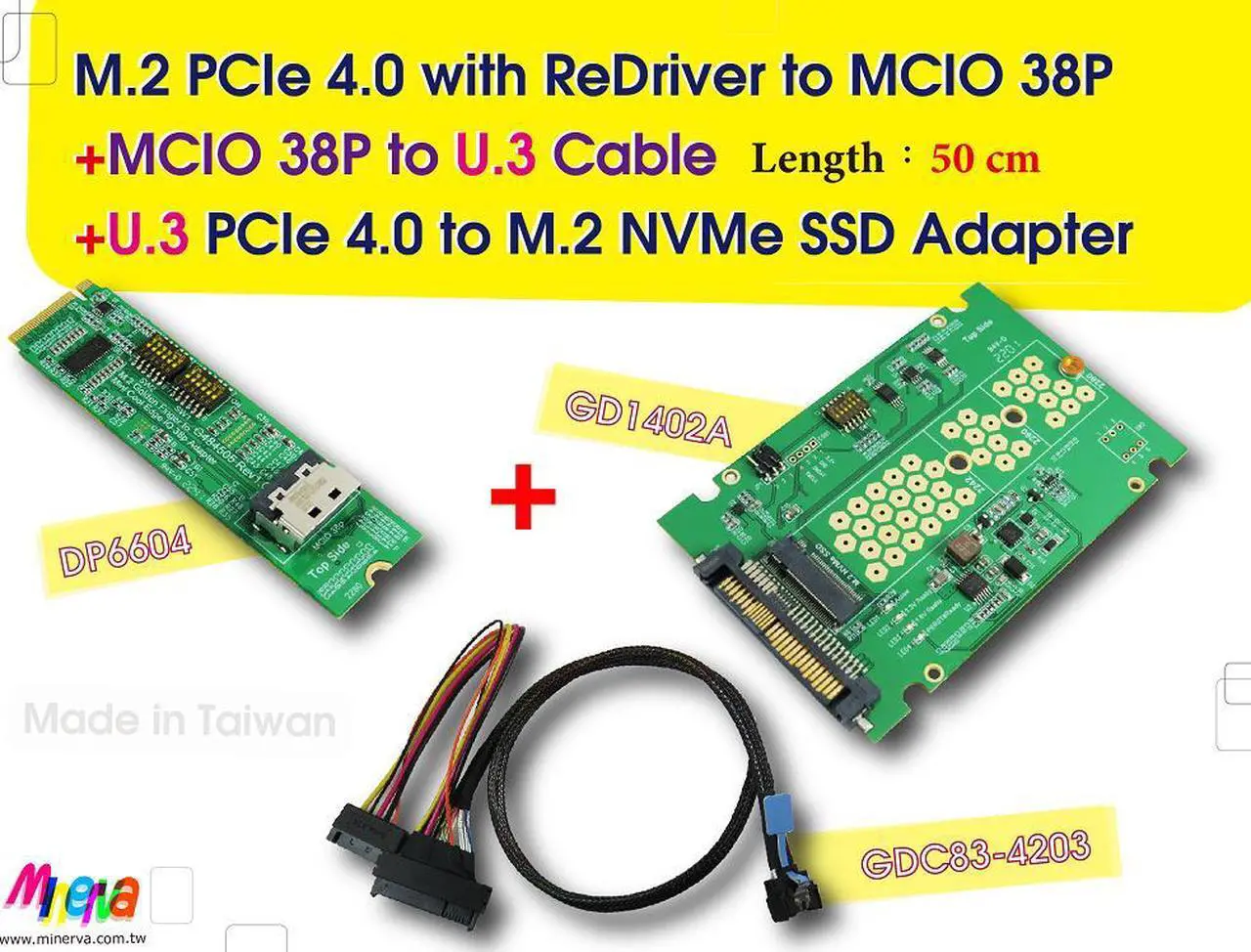

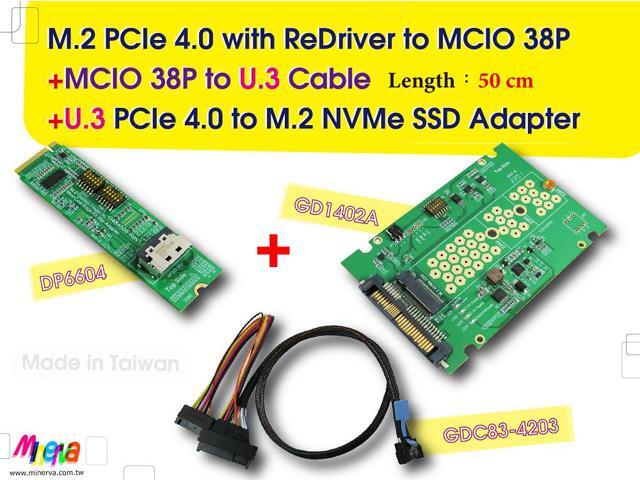

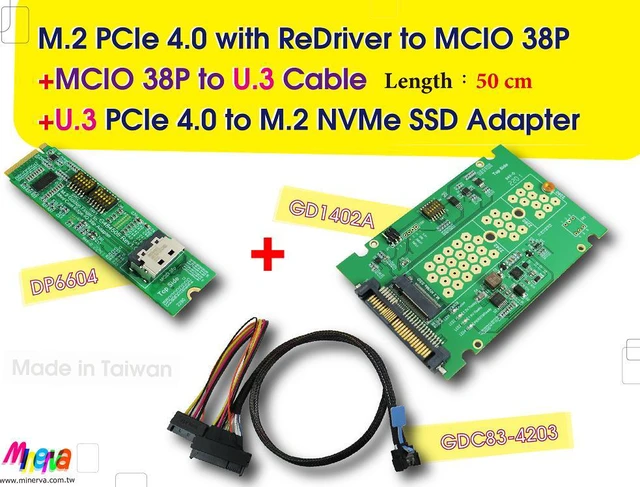

    M.2 PCIe 4.0 with ReDriver to MCIO 38P AIC & MCIO 38P to U.3, 50 cm Cable & U.3 to M.2 SSD Adapter KIT

    • www.minerva.com.tw
    • Designed / Made in Taiwan
    +
    +
    Overview
    Specs
    Reviews

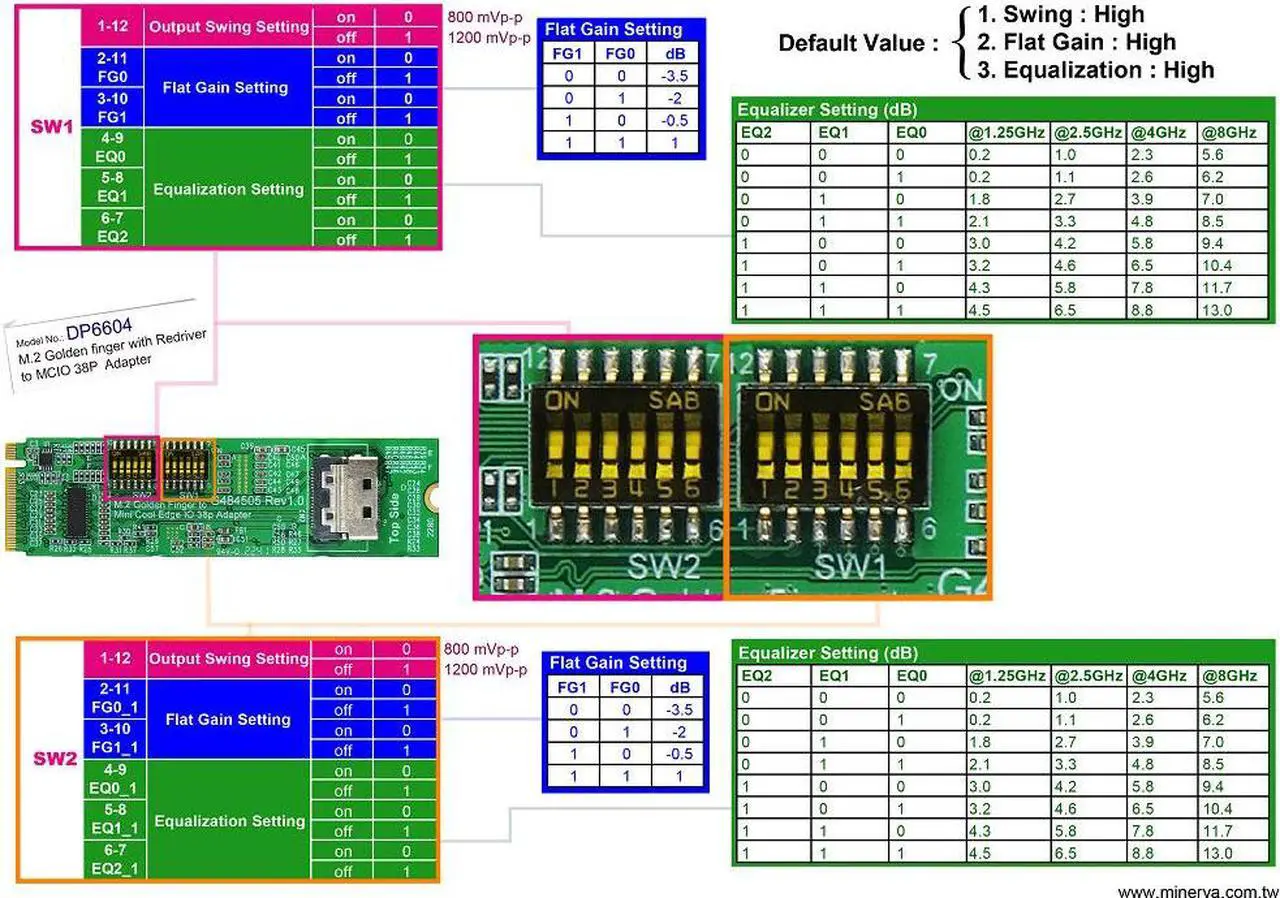

    #DP6604
    Features:
    * MCIO 38P (SFF-TA-1016) to M. 2 PCIe 4.0 convert
    * Built- in MCIO 38P connector with 30u( 0.76 um) min Au mating area plating
    * Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals
    * Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
    * Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
    * Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin
    * Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B8 pin
    * Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A12 pin
    * Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B9 pin



    Specifications

    :
    * PCI Express Base Specification Rev 4.0
    * PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
    * Compliant with SFF-TA-1016 Rev 1.0
    * Compliant with SFF-9402 Specification Version 1.1
    * PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB

    Operating system support:
    * Windows 7
    * Windows 8 & 8.1
    * Windows 10
    * UEFI 2.3. 1 or later

    Applications:
    * Rack server
    * Microserver and Tower server
    * High performance computing
    * Hareware accelerator
    * Storage Controller HBA (Host Bus Adapter)
    * Desktop PC/motherboard

    Part Number: GDC83-4203

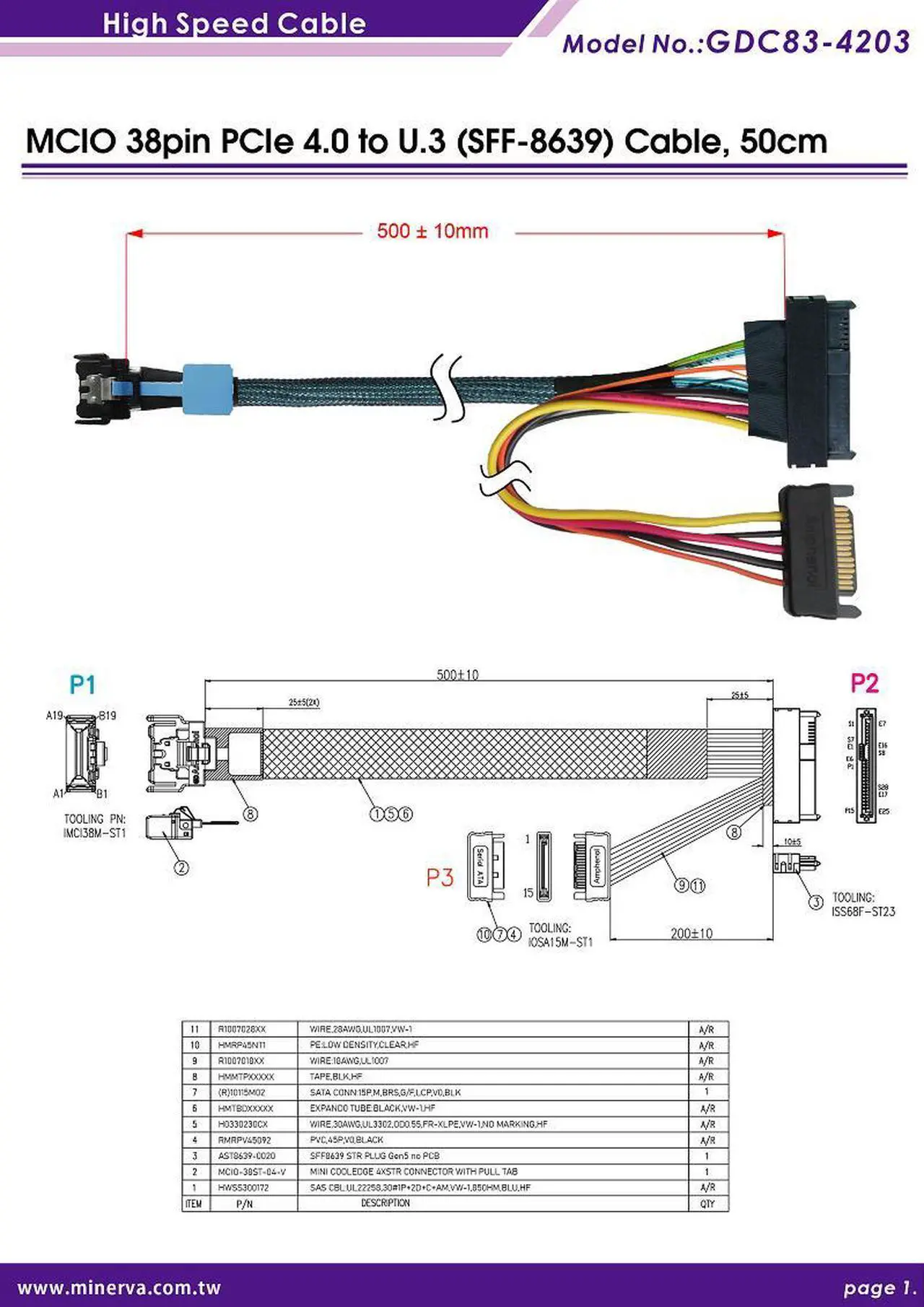

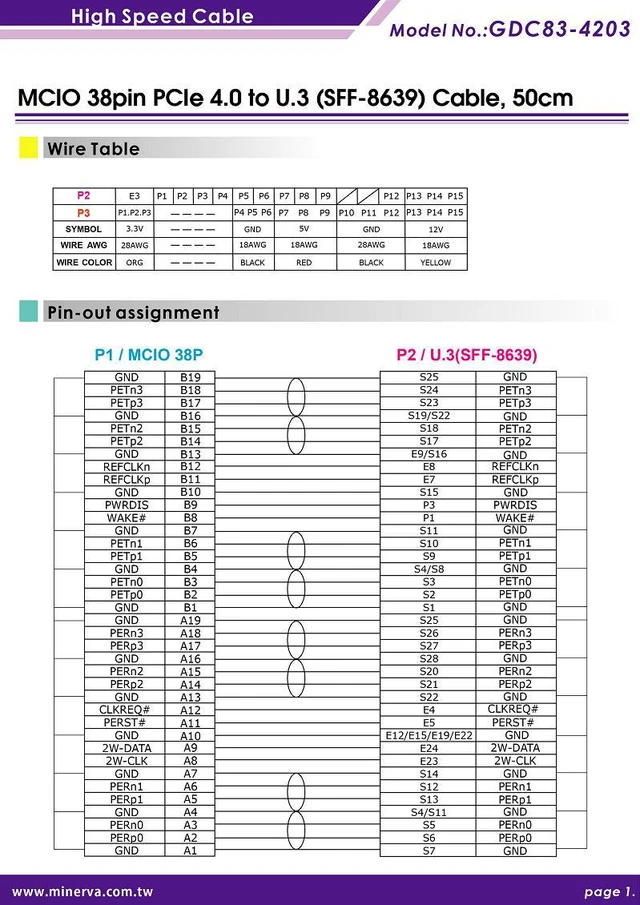

    Product Description: MCIO 38P PCIe 4.0 to U. 3(SFF-8639) Cable
    Cable Length: 50CM

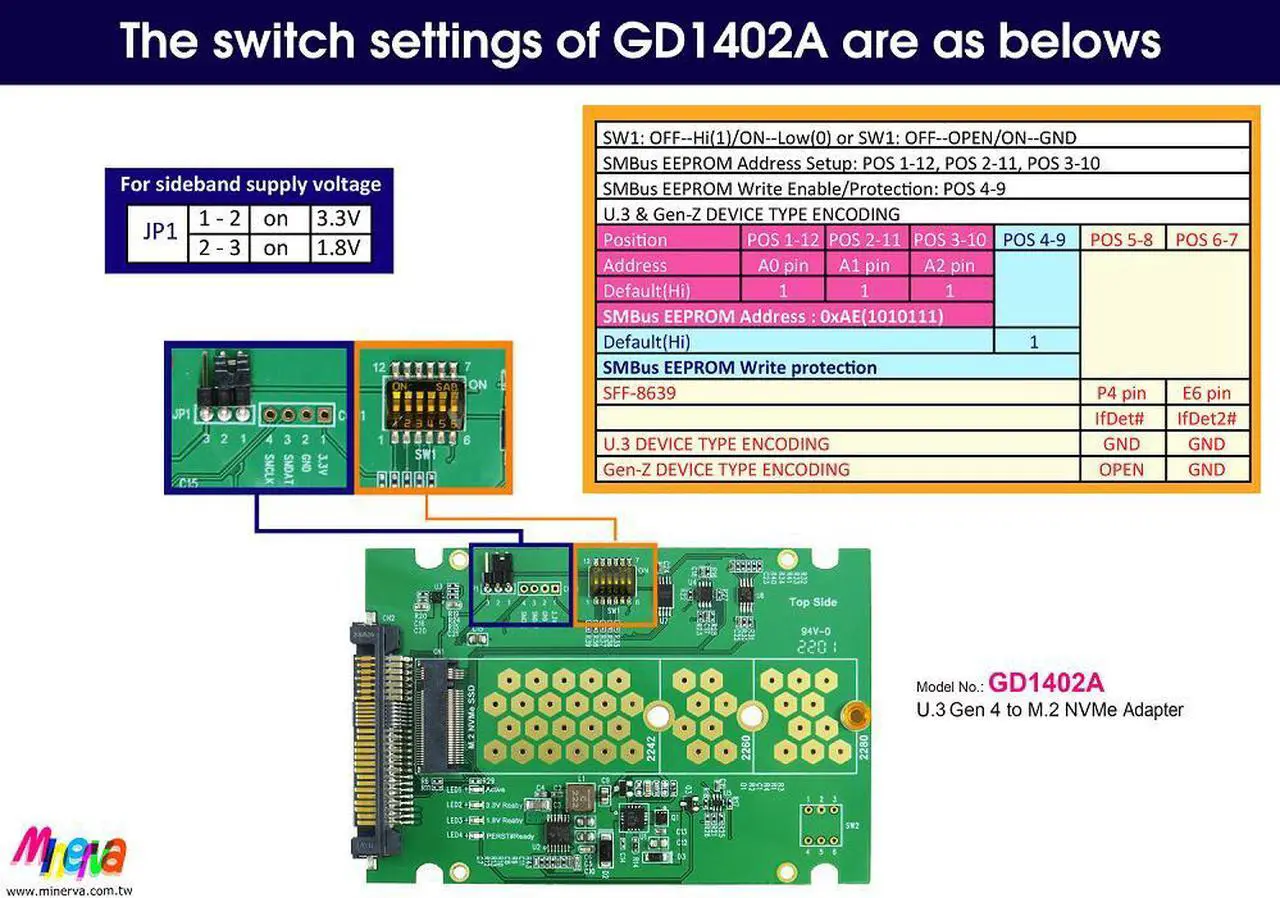

    #GD1402A Adapter
    Features:
    * M. 2 NVMe to U. 3(SFF-8639) convert
    * Built-in SFF-8639, 30u connector, pin-out defined by SFF-9402 Rev 1.1
    * PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
    * 5.5A maximum output current
    * Output Discharge Control
    * The output overcurrent protection (OCP)
    * Uundervoltage lock out protection (UVLO) monitor
    * Over/Under Voltage Protection
    * Thermal shutdown protection
    * ESD HBM (Human Body Mode) /500V
    * Built-in 3.3V Hot Plug Power with eFuse protection for M. 2 NVMe SSD
    * Programmable Current Limit: 6.5A
    * Programmable Inrush Current Slew Rate
    * Thermal shutdown protection and fault alert
    * Back-to-Back (B2B) FET Operation
    * Built-in 3.3V input with 400W TVS (TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
    * Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
    * Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
    * Supports M. 2 3.3V & 1.8V supply
    * Supports M. 2 VIO_CFG Signal
    * Supports M. 2 PERST# Signal 3.3V and 1.8V Voltage-Level Translator
    * Supports M. 2 CLKREQ# Signal 3.3V and 1.8V Switching Translator
    * Supports M. 2 WAKE# Signal 3.3V and 1.8V Translator
    * Supports PWRDIS Signal from U. 3 pin to M. 2 pin
    * Supports M. 2 / 1.8V to U. 3/ 3.3V SMBCLK, SMBDATA Level Shift
    * Supports M. 2 / 1.8V to U. 3 / 3.3V SMBCLK, SMBDATA isolated, repeater
    * Supports M. 2 / 1.8V to U. 3 / 3.3V SMBCLK, SMBDATA Hot-Swap
    * Built-in SMBus EEPROM 64KB
    * LED1 RED Blinking indicates M. 2 active status
    * LED2 GREEN ON indicates 3.3V power ready
    * LED3 GREEN ON indicates 1.8V power ready
    * LED4 RED ON indicates PERST# signals ready

    Specificationa:
    * Compliant with NVM Express 1.3 a
    * Support PCI Express Base Specification Rev 4.0
    * Support SSD_Form_Factor_Version1_a
    * Compliant with PCI Express M. 2 Specification Version 1.2
    * Compliant with PCIe SFF-8639 Module Specification Rev 3.0
    * Compliant with SFF-TA-1001 Rev 1.1

    Supports the following form factor M. 2
    SSD:
    * Type 2242-D2-B-M: 42mm (L) x 22mm (W)
    * Type 2260-D2-B-M: 60mm (L) x 22mm (W)
    * Type 2280-D2-B-M: 80mm (L) x 22mm (W)
