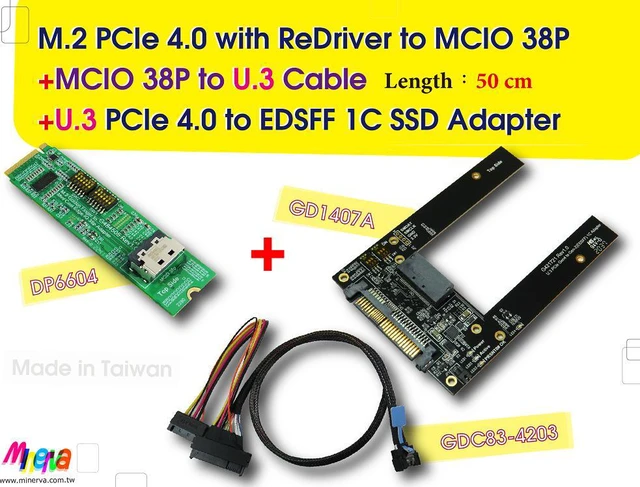

M.2 PCIe 4.0 with ReDriver to MCIO 38P AIC & MCIO 38P to U.3, 50cm Cable & U.3 to EDSFF 1C SSD Adapter KIT

#DP6604
Features:
* MCIO 38P (SFF-TA-1016) to M. 2 PCIe 4.0 convert
* Built- in MCIO 38P connector with 30u( 0.76 um) min Au mating area plating

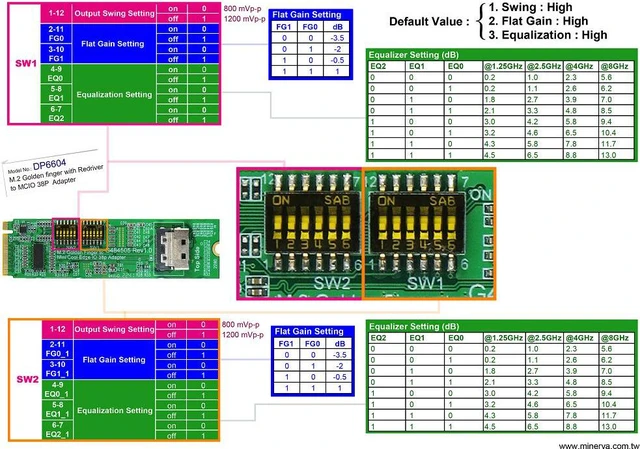

* Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
* Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin
* Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B8 pin
* Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A12 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B9 pin

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-TA-1016 Rev 1.0
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Part Number: GDC83-4203

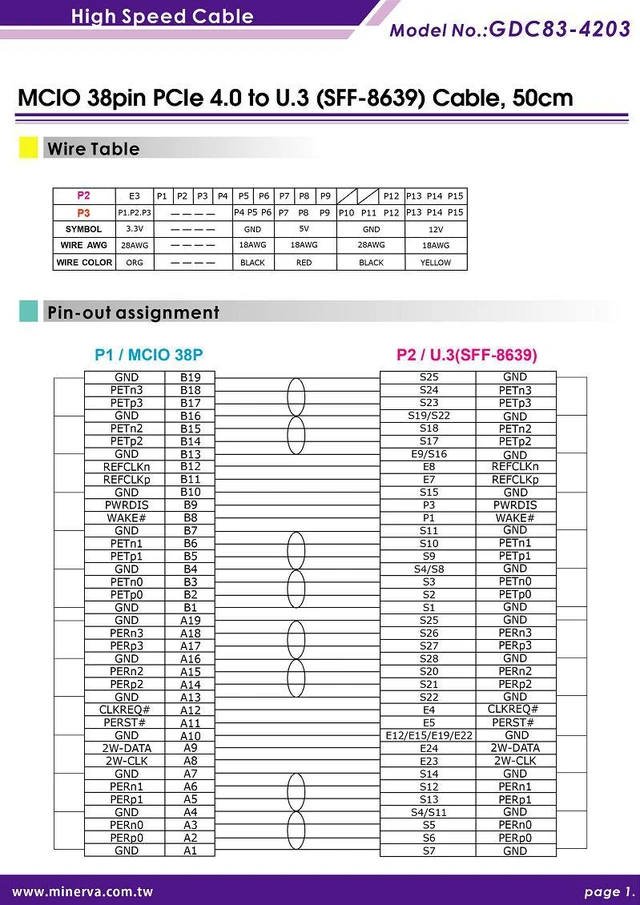

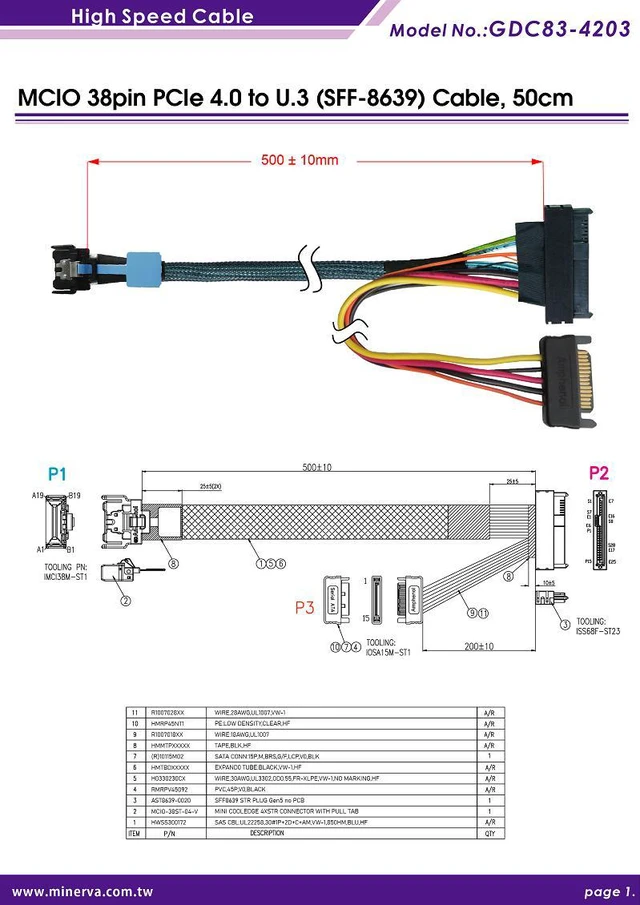

Product Description: MCIO 38P PCIe 4.0 to U. 3(SFF-8639) Cable
Cable Length: 50CM

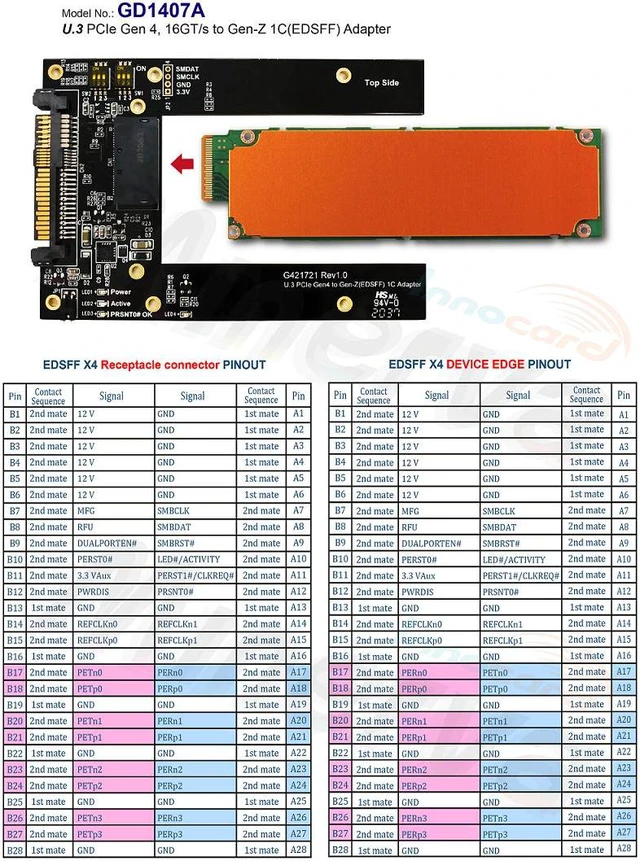

#"GD1407A" Adapter:
Features:
* Built-in 12V Hot Plug Power IC with eFuse protection circuit
* Built-in U. 3(SFF-8639) Male connector
* Built-in EDSFF (Gen-Z) 1C Connector
* Supports SMB_CLK/ SMB_DATA
* Supports PWRDIS
* Supports DualPortEn
* LED1 GREEN indicates 12V Power Ready
* LED2 RED LED Blinking indicates Gen-Z SSD active status
* LED3 GREEN indicates PRSNT0# OK
* LED4 GREEN indicates 3.3V aux Power Ready

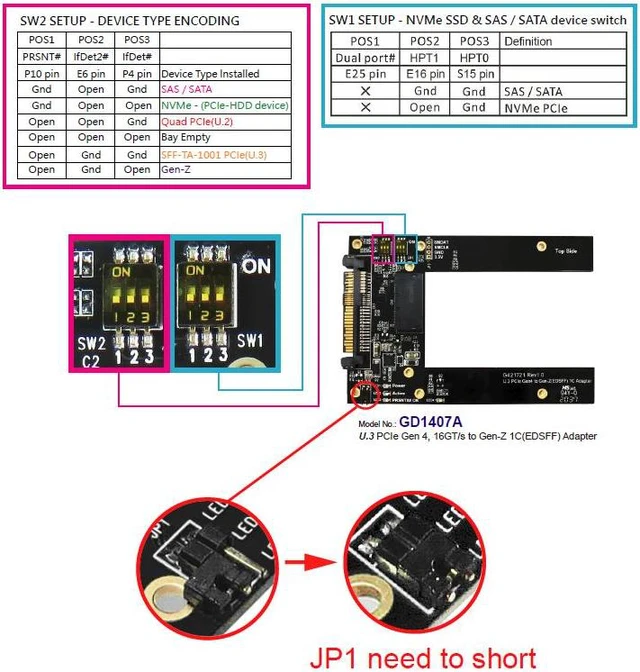

* JP1 pin header must be to setup on, when Host does not supply 3.3V aux

Specifications

:
* Compliant with NVM Express 1.2
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-TA-1002 Specification Multi Lane High Speed Connector Rev 1.3
* Compliant with SFF-TA-1006 Enterprise and Datacenter 1U Short SSD Form Factor Rev 1.4
* Compliant with Gen-Z Scalable Connector Rev 1.1
