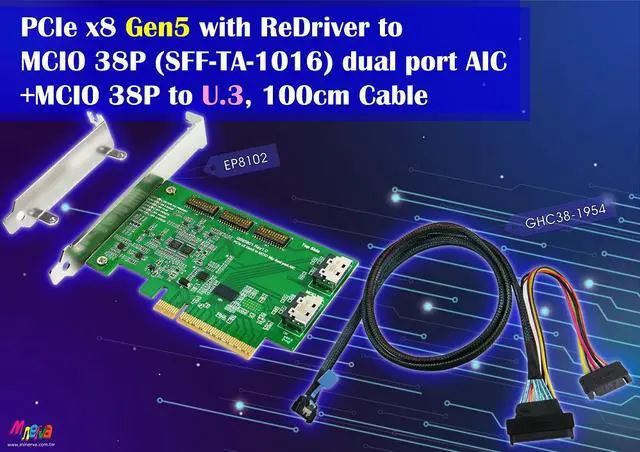

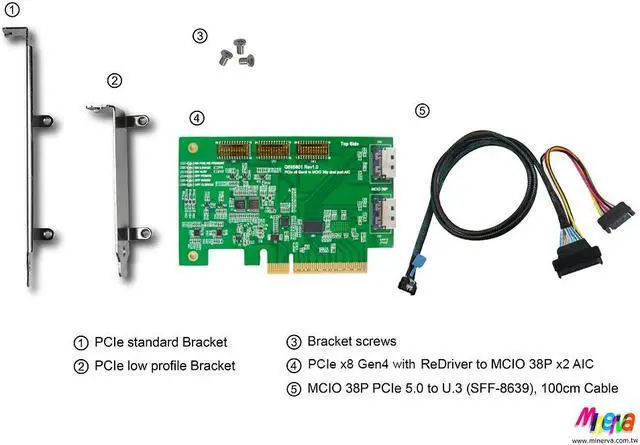

PCIe x8 Gen 5 with ReDriver to MCIO+MCIO 38P to U.3, 100cm cablex2pcs

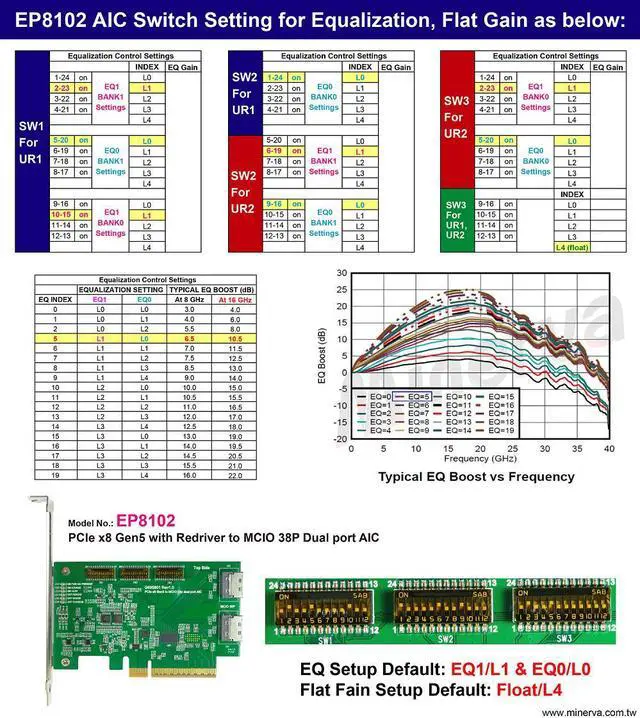

#EP8102 adapter:
Features:
*MCIO 38P (SFF-TA-1016) dual port to PCIe x8 Gen 5 convert
* Built-in MCIO 38P (SFF-TA-1016) connector dual port
* Built-in ReDriver to extend PCIe 5.0 8 Lanes signals data link width reach.
* Built-in PCIe 100MHz Clock buffer(Address: 0x6C/7 bits), default Zout=100 ohm to drive longer trace length and longer cable length.
* Built-in PCIe SMBus Switch(Address: 0x70/7 bits) 4-channel with Reset Function for MCIO 38P (SFF-TA-1016) and PCIe 100MHz Clock buffer SMBus control
* Built-in SMBus I/O Expander(Address: 0x20/7 bits) for OOB (out of band) management to remote MCIO 38P dual port Reset signals
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and longer cable length.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
* LED1 Green ON indicates AIC PRSNT#
* LED2 Green ON indicates 3.3VAUX ready
* LED3 Green ON indicates 3.3V ready
* LED4 Green OFF indicates PERST# Normal (Function intentionally inverted)
* LED5 Green OFF indicates WAKE# Normal (Function intentionally inverted)
* LED6 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)

Specifications

:
* PCI Express Base Specification Rev 5.0
* PCIe_CEM_R 5.1 _V 1.0 _08072023_NCB
* Compliant with SFF-TA-1016 Rev 1.2

Operating system support:
* Windows 10
* Windows 11
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

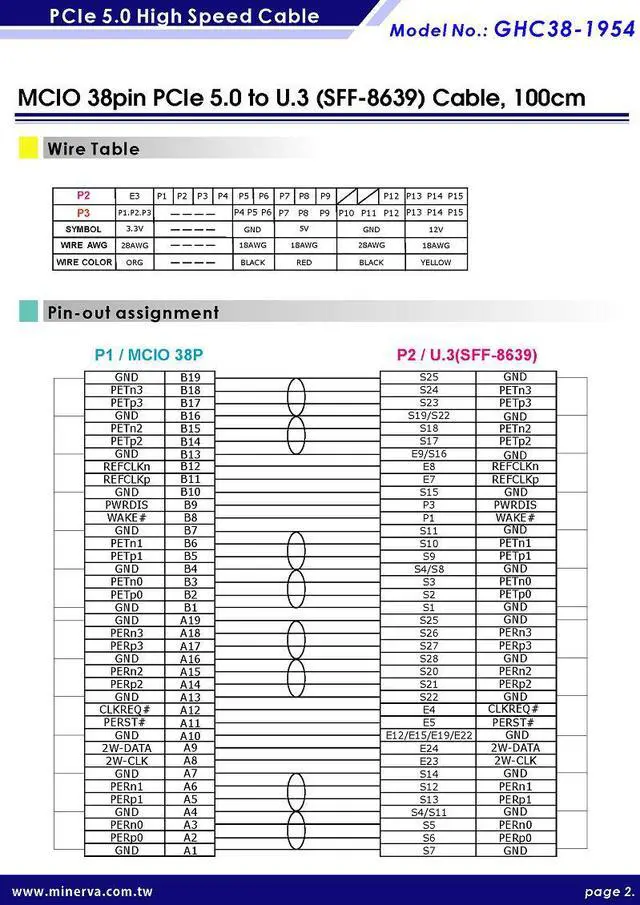

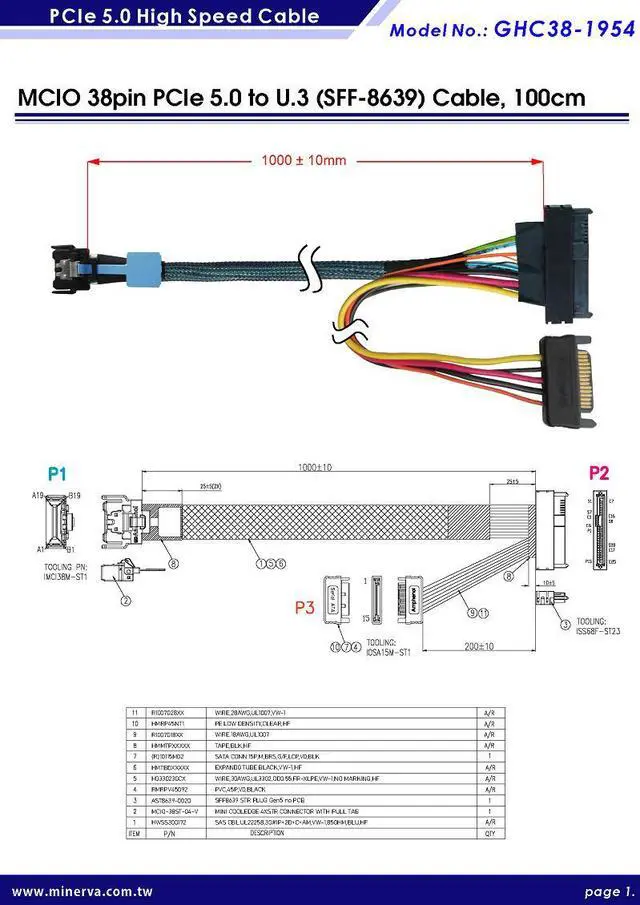

Part Number: GHC38-1954
Product Description: MCIO 38P PCIe 5.0 to U. 3 (SFF-8639) Cable
Cable Length: 100CM
