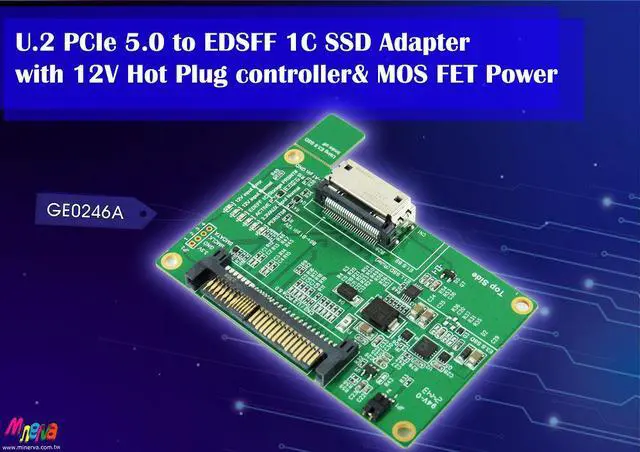

SFF-8639 PCIe 5.0 to SFF-TA-1002/Gen-Z 1C with 12V Hot Plug controller& MOSFET Power

#GE0246A
Adapter:
Features:
U. 2(SFF-8639) to EDSFF(Gen-Z) 1C convert for PCIe 5.0 signals
Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
Built-in EDSFF(Gen-Z) 1C connector
12V Input power rail built-in 5A FUSE
12V Input power rail with 400W Bidirectional TVS
12V Input power rail built-in 5A Schottky barrier rectifer
12V Input power rail high side controller with Power NMOS FET
Built-in 12V Hotswap Power controller with programmable Inrush Slew rate, support a maximuncontinuous current of 6.5A for EDSFF SSD protection
Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm with Reverse currentprotection
LED1 RED LED on indicates 12V input Power Error
LED2 Green LED on indicates 12V power ready
LED5 Green LED on indicates 3.3V aux power ready
LED6 Red LED indicates on to off for PCIe PERST# signals implementation

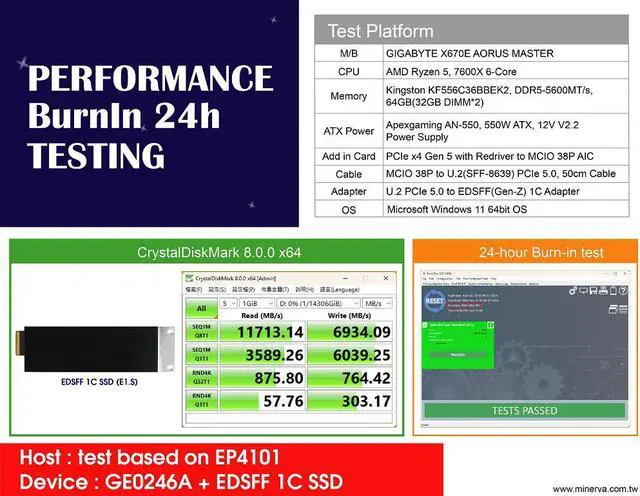

Specifications

:
Compliant with NVM Express 2.0
Support PCI Express Base Specification Rev 5.0
Support SSD_Form_Factor_Version1_a
Compliant with PCIe SFF-8639 Module Specification Rev 5.0
Compliant with SFF-TA-1002 Rev 1.5

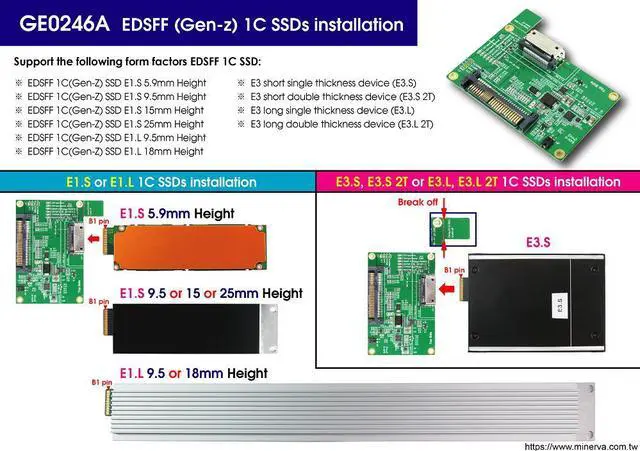

Supports the following form factor EDSFF 1C (Gen-Z) SSD:
EDSFF 1C(Gen-Z) SSD E1. S 5.9 mm Height
EDSFF 1C(Gen-Z) SSD E1. S 9.5 mm Height
EDSFF 1C(Gen-Z) SSD E1. S 15mm Height
EDSFF 1C(Gen-Z) SSD E1. S 25mm Height
EDSFF 1C(Gen-Z) SSD E1. L 9.5 mm Height
EDSFF 1C(Gen-Z) SSD E1. L 18mm Height
EDSFF 1C(Gen-Z) SSD E3. S short single thickness device
EDSFF 1C(Gen-Z) SSD E3. S 2T short double thickness device
EDSFF 1C(Gen-Z) SSD E3. L long single thickness device
EDSFF 1C(Gen-Z) SSD E3. L 2T long double thickness device
