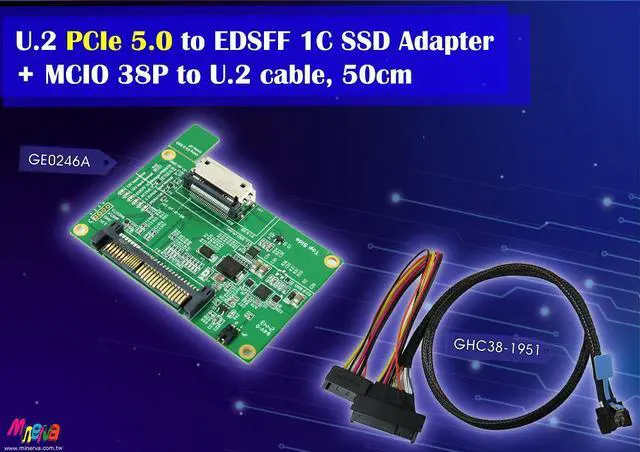

MCIO to U.2, 50cm cable+ PCIe 5.0 U.2 to EDSFF/Gen-Z 1C adapter with Hot Plug

#GE0246A
Adapter:
Features:
*U. 2(SFF-8639) to EDSFF(Gen-Z) 1C convert for PCIe 5.0 signals
*Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
*Built-in EDSFF(Gen-Z) 1C connector
*12V Input power rail built-in 5A FUSE
*12V Input power rail with 400W Bidirectional TVS
*12V Input power rail built-in 5A Schottky barrier rectifer
*12V Input power rail high side controller with Power NMOS FET
*Built-in 12V Hotswap Power controller with programmable Inrush Slew rate, support a maximuncontinuous current of 6.5A for EDSFF SSD protection
*Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm with Reverse currentprotection
*LED1 RED LED on indicates 12V input Power Error
*LED2 Green LED on indicates 12V power ready
*LED5 Green LED on indicates 3.3V aux power ready
*LED6 Red LED indicates on to off for PCIe PERST# signals implementation

Specifications

:
*Compliant with NVM Express 2.0
*Support PCI Express Base Specification Rev 5.0
*Support SSD_Form_Factor_Version1_a
*Compliant with PCIe SFF-8639 Module Specification Rev 5.0
*Compliant with SFF-TA-1002 Rev 1.5

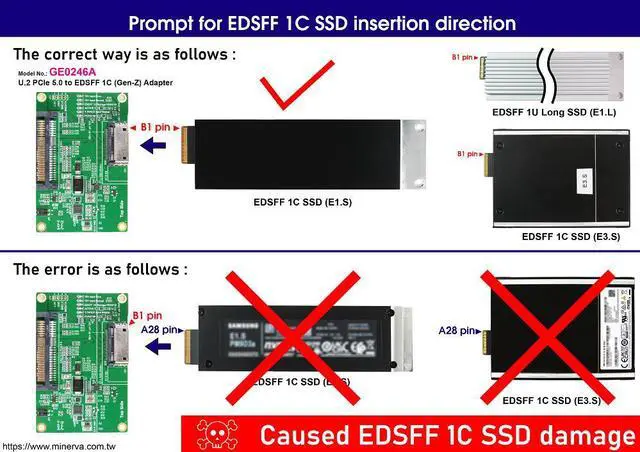

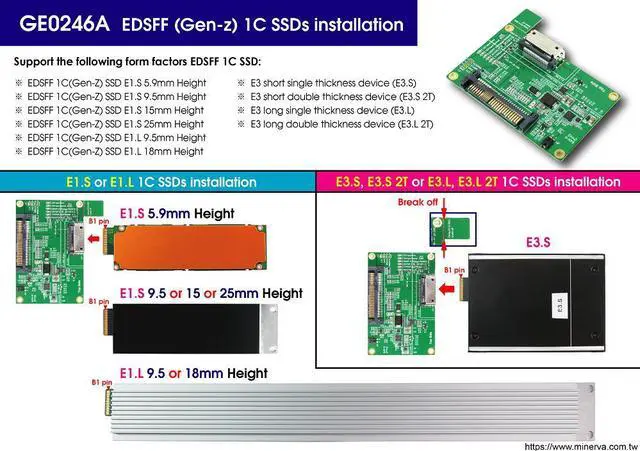

Supports the following form factor EDSFF 1C (Gen-Z) SSD:
*EDSFF 1C(Gen-Z) SSD E1. S 5.9 mm Height
*EDSFF 1C(Gen-Z) SSD E1. S 9.5 mm Height
*EDSFF 1C(Gen-Z) SSD E1. S 15mm Height
*EDSFF 1C(Gen-Z) SSD E1. S 25mm Height
*EDSFF 1C(Gen-Z) SSD E1. L 9.5 mm Height
*EDSFF 1C(Gen-Z) SSD E1. L 18mm Height
*EDSFF 1C(Gen-Z) SSD E3. S short single thickness device
*EDSFF 1C(Gen-Z) SSD E3. S 2T short double thickness device
*EDSFF 1C(Gen-Z) SSD E3. L long single thickness device
*EDSFF 1C(Gen-Z) SSD E3. L 2T long double thickness device

:

Part Number: GHC38-1951

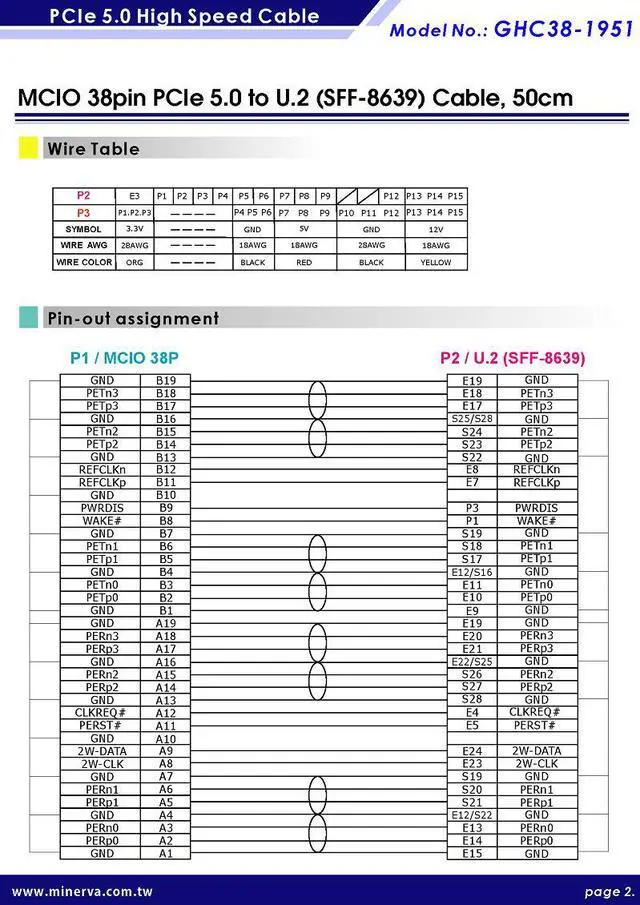

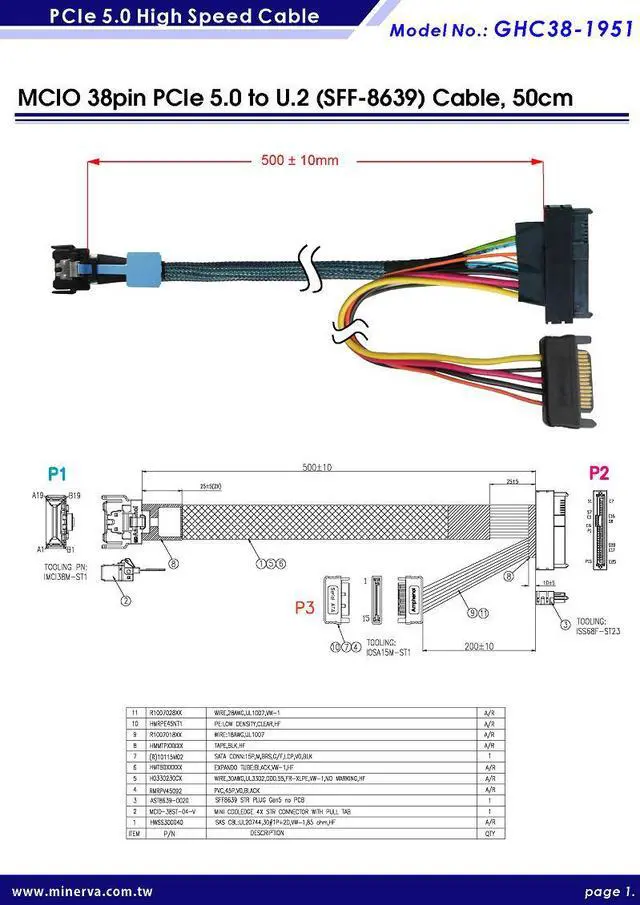

Product Description: MCIO 38P (SFF-TA-1016) to U. 2(SFF-8639) Cable
Cable Length: 50CM
