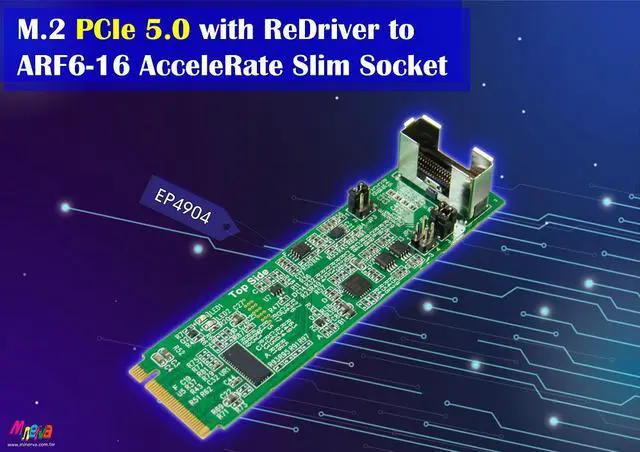

M.2 PCIe 5.0 with ReDriver to ARF6-16 AcceleRate Slim Socket

#EP4904 Adapter

Features:
* Built- in 3.3V, 3A Load Switch with Reverse Current Protection and Controlled Turn-On
* ARF6-16 to M. 2 PCIe 5.0 convert
* Built- in ARF6-16 connector with 30u( 0.76 um) min Au mating area plating

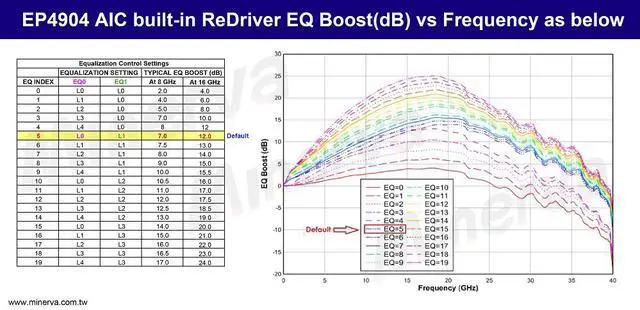

* Built- in ReDriver to extend PCIe 5.0, 32GT/s differential pair signals & provides equalization up to 24 dB at 16 GHz
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
* Built- in PERST# Voltage-Level Translator
* The WAKE# Auto-Bidirectional Multi-Voltage Level Translator
* The CLKREQ# Auto-Bidirectional Multi-Voltage Level Translator
* LED1 Red from ON to OFF indicates PERST# signals normal
* LED2 Green ON indicates 3.3V ready

Specifications:
* PCI Express Base Specification Rev 5.0
* PCIe_CEM_R 5.1 _V 1.0 _08072023_NCB
* PCI_Express_M. 2_Spec_Rev 5.1

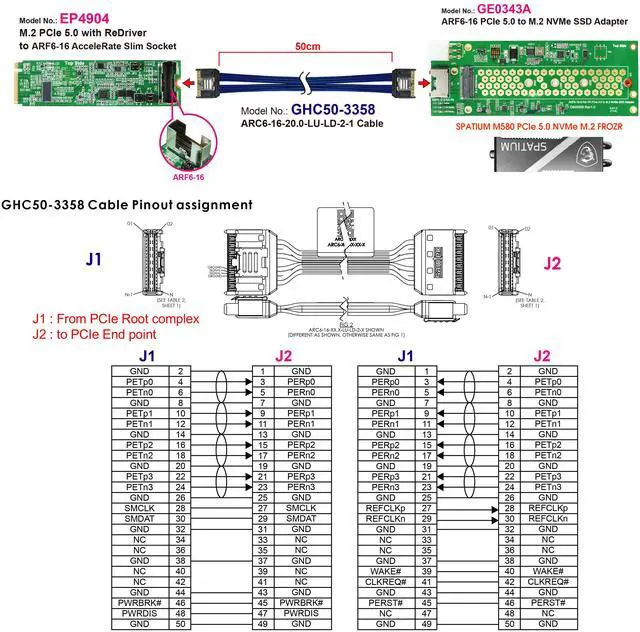

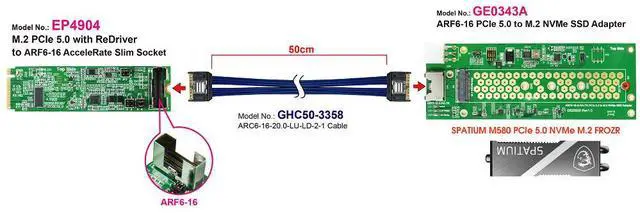

Compatible cables list:
Samtec AcceleRate Slim Cable Assembly, 0.635 mm Pitch
Verified cable length:
* ARC6-16- 20.0 -LU-LD-2-1, 50cm
* ARC6-16- 40.0 -LU-LD-2-1, 100cm

Operating system support:
* Windows 8 & 8.1
* Windows 10
* Windows 11
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

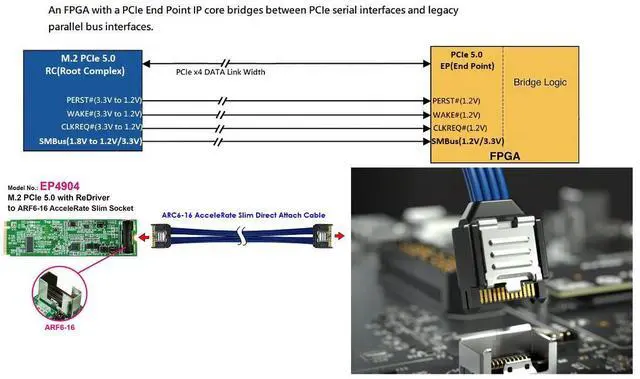

* FPGA Development Kit
