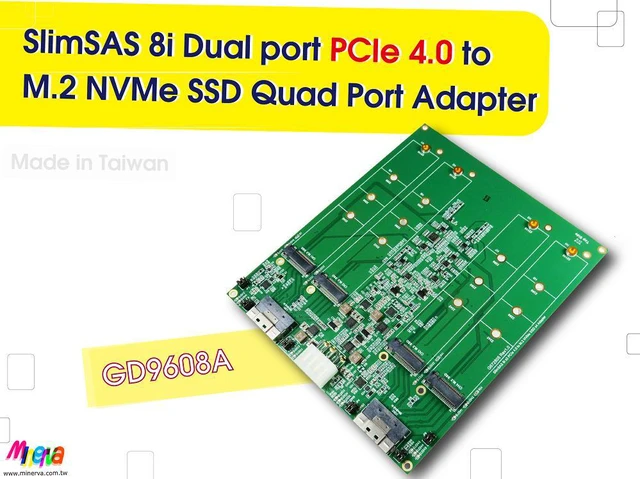

SlimSAS 8i x2 PCIe 4.0 to M.2 4-port with 3.3V Hot Swap Power Controller

#GD9608A
Features:

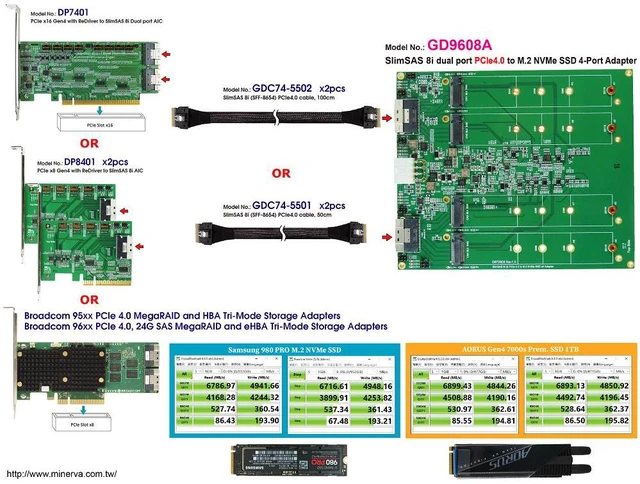

* M. 2 quad port to SlimSAS 8i(SFF-8654) dual port convert
* Built-in two SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in four M. 2 M-key connector

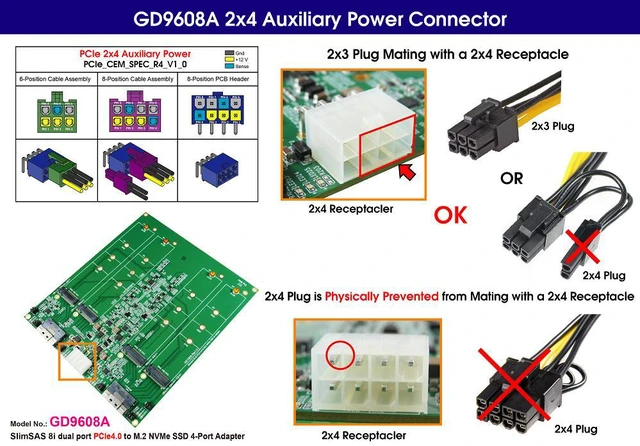

* 12V to 3.3V PWM synchronous buck converter Power for individual M. 2 connector
* 5.5A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode (HBM) /2KV
* Built-in 3.3V Hot Plug Power with eFuse protection for individual M. 2 connector
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Supports M. 2 PERST# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 WAKE# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 / 1.8V to PCIe/ 3.3V SMB_CLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to PCIe / 3.3V SMB_CLK, SMB_DATA isolated, repeater

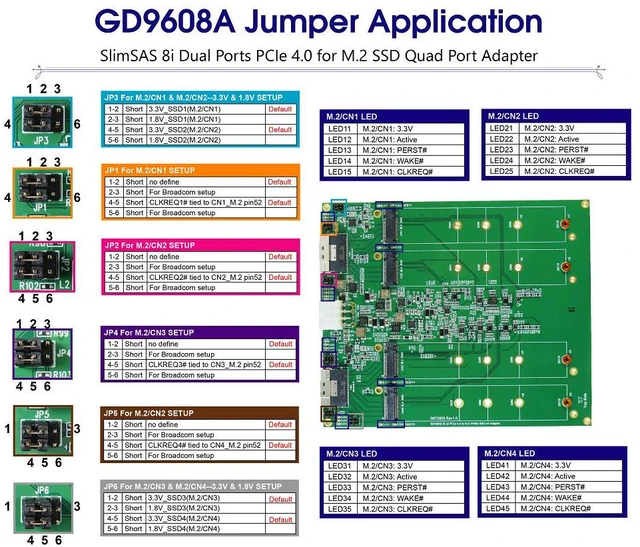

* LED11, LED21, LED31, LED41 Green LED on indicates M. 2 NVMe SSD power ready
* LED12, LED22, LED32, LED42 RED LED Blinking indicates M. 2 active status
* LED13, LED23, LED33, LED43 Green OFF indicates PERST# Normal (Function intentionally inverted)
* LED14, LED24, LED34, LED44 Green OFF indicates WAKE# Normal (Function intentionally inverted)
* LED15, LED25, LED35, LED45 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)

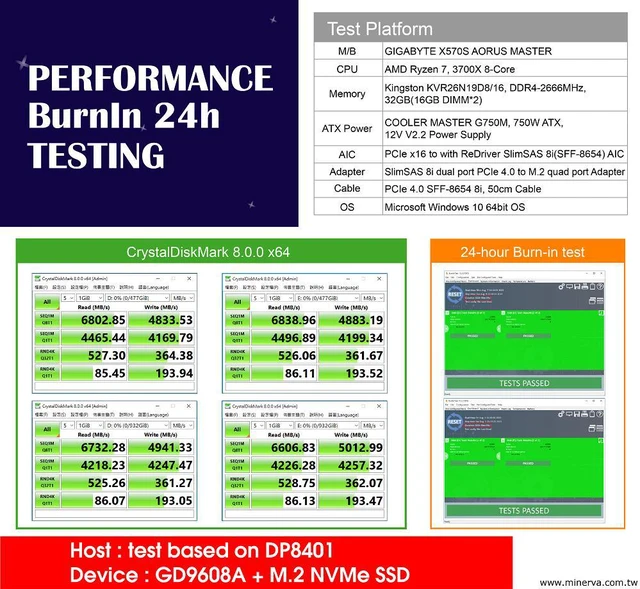

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1


Supports the following form factor M. 2 (NGFF)
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
* Type 22110-D2-B-M: 110mm (L) x 22mm (W)
