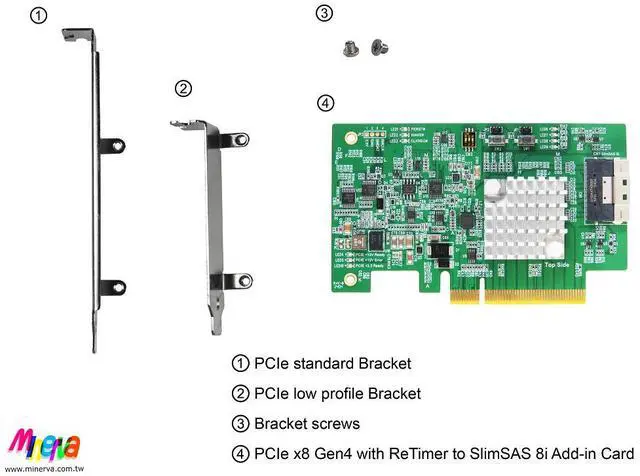

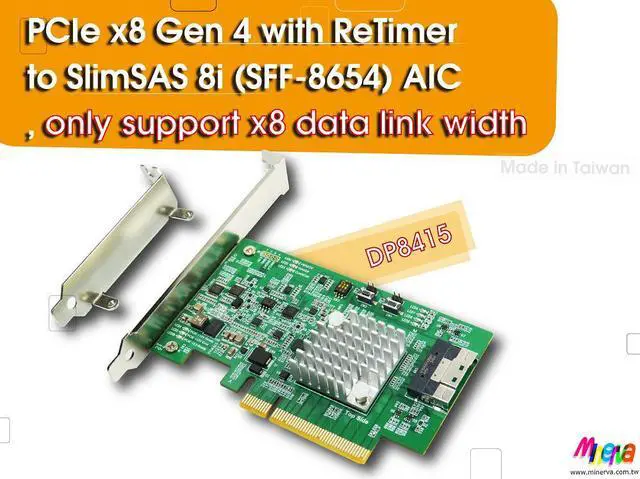

PCIe x8 Gen4 with ReTimer to SlimSAS 8i(SFF-8654) AIC, only support x8 data link width

#DP8415 Adapter

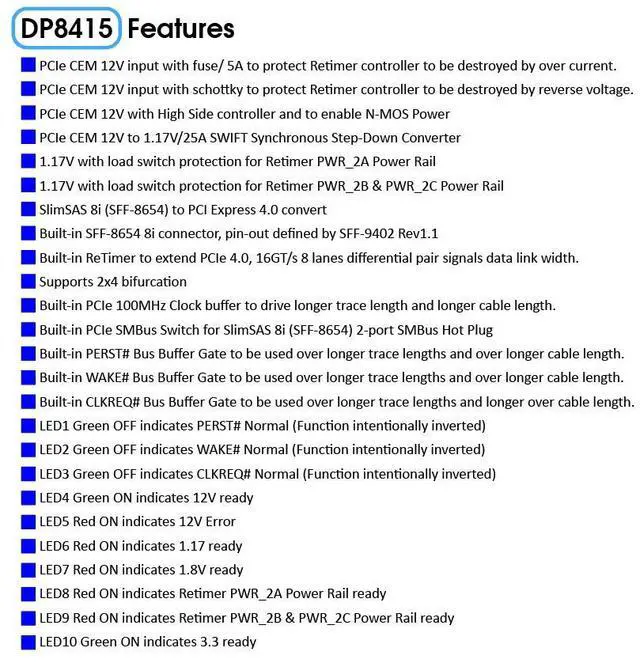

Features:
* PCIe CEM 12V input with fuse/ 5A to protect Retimer controller to be destroyed by over current.
* PCIe CEM 12V input with schottky to protect Retimer controller to be destroyed by reverse voltage.
* PCIe CEM 12V with High Side controller and to enable N-MOS Power
* PCIe CEM 12V to 1.17V /25A SWIFT Synchronous Step-Down Converter
* 1.17V with load switch protection for Retimer PWR_2A Power Rail
* 1.17V with load switch protection for Retimer PWR_2B & PWR_2C Power Rail
* SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in ReTimer to extend PCIe 4.0, 16GT/s 8 lanes differential pair signals data link width.
* Supports 2x4 bifurcation
* Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer cable length.
* Built-in PCIe SMBus Switch for SlimSAS 8i (SFF-8654) 2-port SMBus Hot Plug
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
* LED1 Green OFF indicates PERST# Normal (Function intentionally inverted)
* LED2 Green OFF indicates WAKE# Normal (Function intentionally inverted)
* LED3 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)
* LED4 Green ON indicates 12V ready
* LED5 Red ON indicates 12V Error
* LED6 Red ON indicates 1.17 ready
* LED7 Red ON indicates 1.8V ready
* LED8 Red ON indicates Retimer PWR_2A Power Rail ready
* LED9 Red ON indicates Retimer PWR_2B & PWR_2C Power Rail ready
* LED10 Green ON indicates 3.3 ready

Specifications

:
*PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* Windows 11
* Linux
* VMware

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
