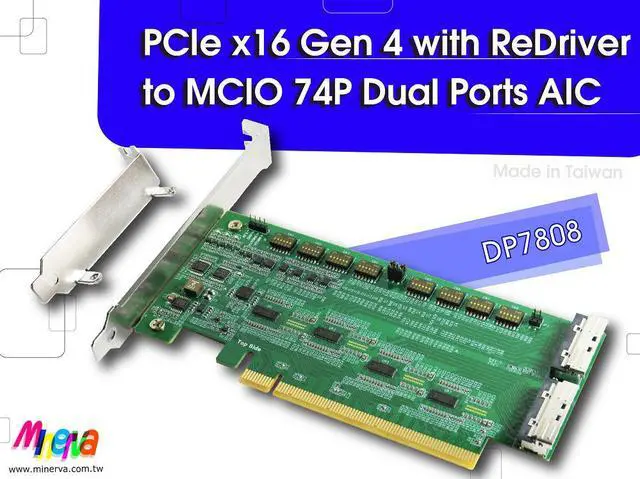

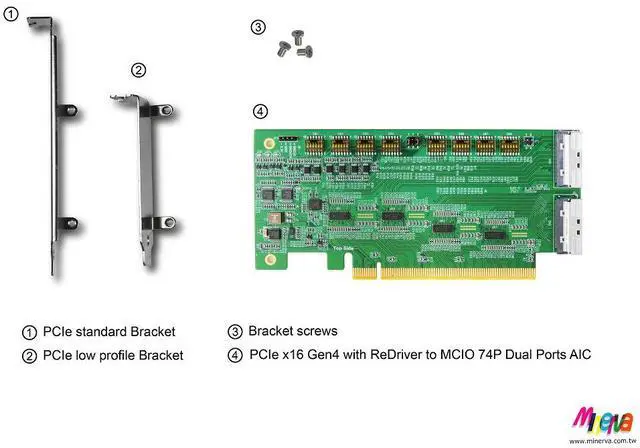

PCIe x16 Gen4 with ReDriver to MCIO 74P dual port AIC

Features:

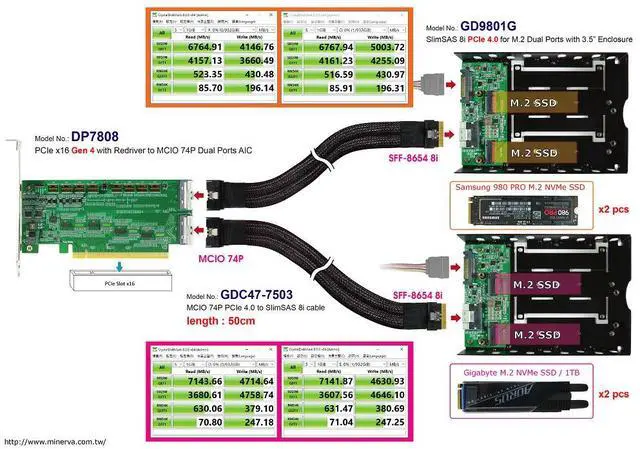

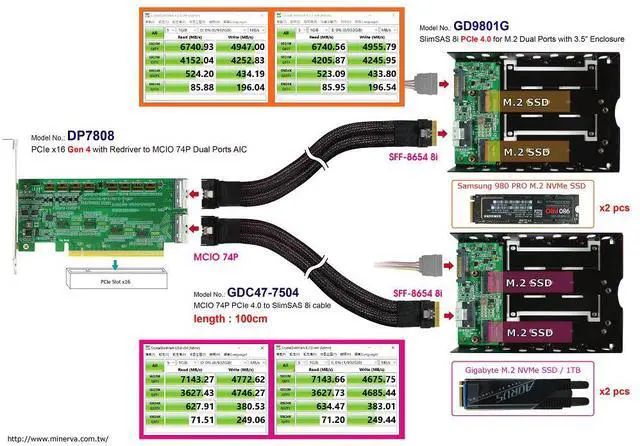

* MCIO 74P(SFF-TA-1016) to PCIe x16 Gen4 convert
* Built-in MCIO 74P connector x2pcs

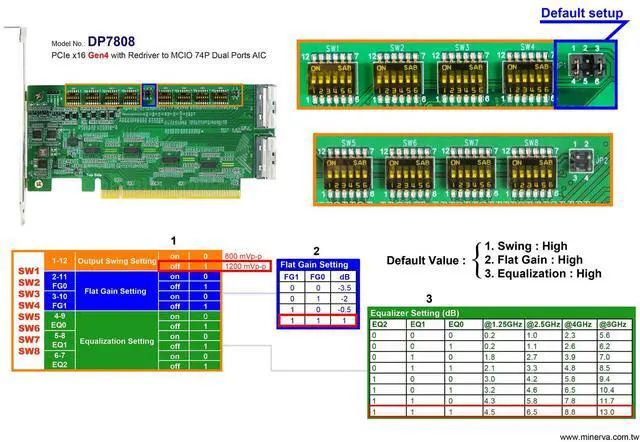

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for MCIO 74P(SFF-TA-1016) dual port to drive longer cable length
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for MCIO 74P(SFF-TA-1016) SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote MCIO 74P(SFF-TA-1016) Reset signals.
* Supports PCIe PERST# management to control MCIO 74P(SFF-TA-1016) Reset signals.
* Built-in PERST# Bus Buffer to be used more cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used more cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used more cable length.
* Built-in PWRBRK# Bus Buffer to be used more cable length.
* Built-in 12V to 3.3V, 5.5A PWM Power controller
* Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
* The WAKE# signals power supply can choose + 3.3V or 3.3VAUX, the default is 3.3VAUX
* LED1 Green LED on indicates AIC ready
* LED2 Red ON to OFF indicates PERST# Normal (Function intentionally inverted)
* LED3 Red ON to OFF indicates PERST# Normal (Function intentionally inverted)
* LED4 Red ON to OFF indicates PERST# Normal (Function intentionally inverted)

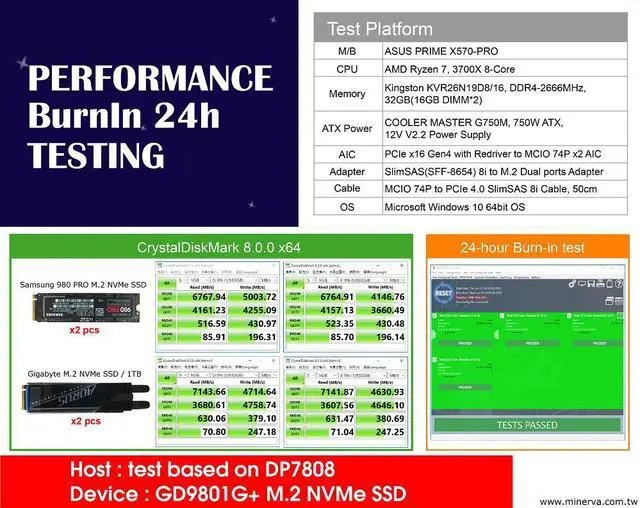

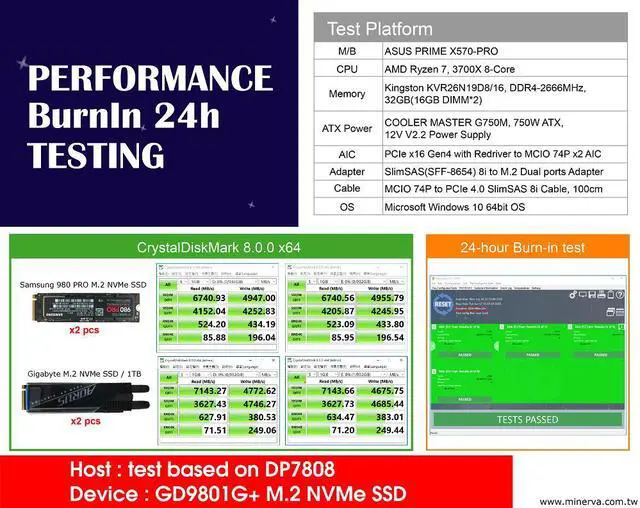

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* Windows 11
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
