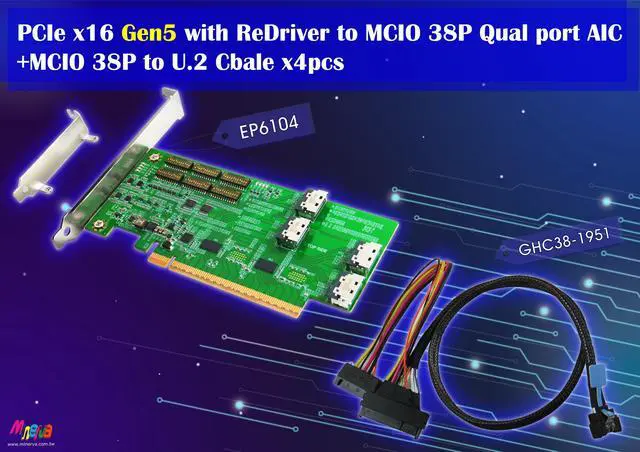

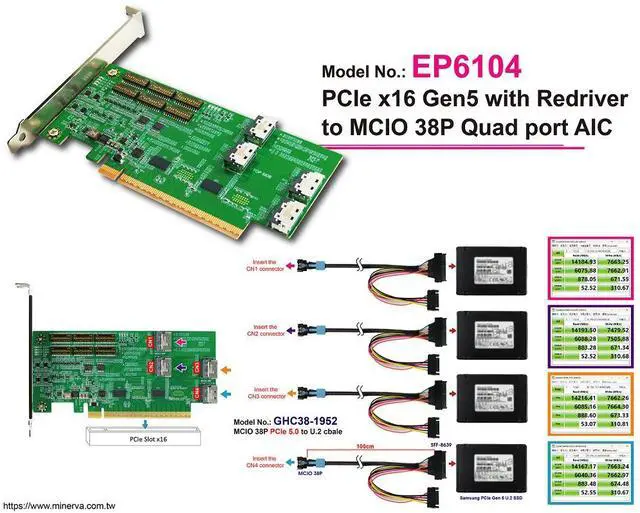

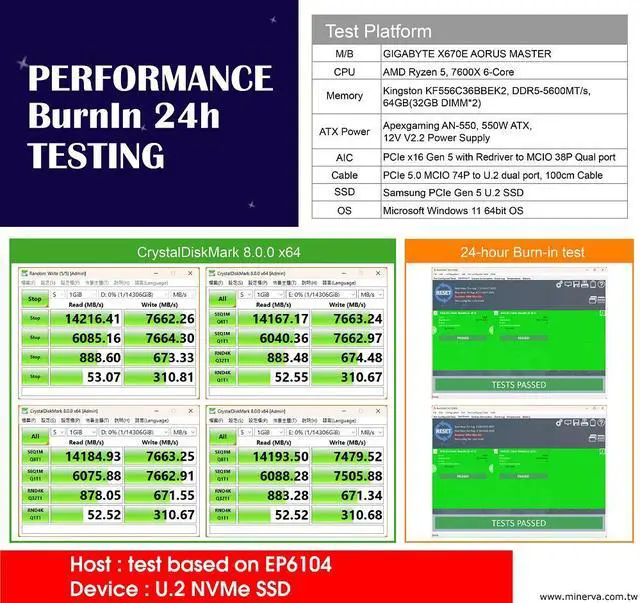

PCIe x16 Gen 5 with ReDriver to MCIO 74P Qual port AIC & MCIO to U.2, 50cm cable x4pcs

#EP6104 adapter:

Features:

MCIO 38P to PCIe x16 Gen5 convert

Built-in MCIO 38P quad port connectors with 30u(0.38um) min Au mating area plating

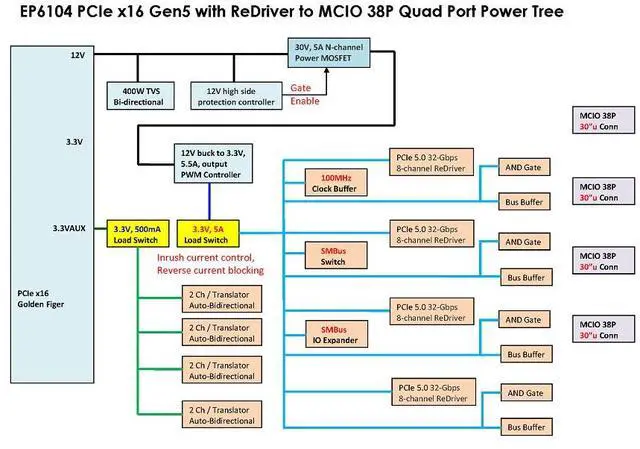

Input PCIe CEM +12V power with TVS protection, 400W Peak Pulse Power Dissipation

PCIe CEM +12V power with high side protection controller to enable N-MOS FET for 12V, 5A output

PCIe CEM +12V PWM buck to 3.3V, 5A output with Eco-mode Power controller

3.3V, 5A Load Switch With Automatic Restart after Supervisor Fault Detection when Enabled to protect PCIe 5.0 ReDriver controller

Input PCIe CEM power 3.3Vaux with Load Switch protection for Bus Buffer IC.

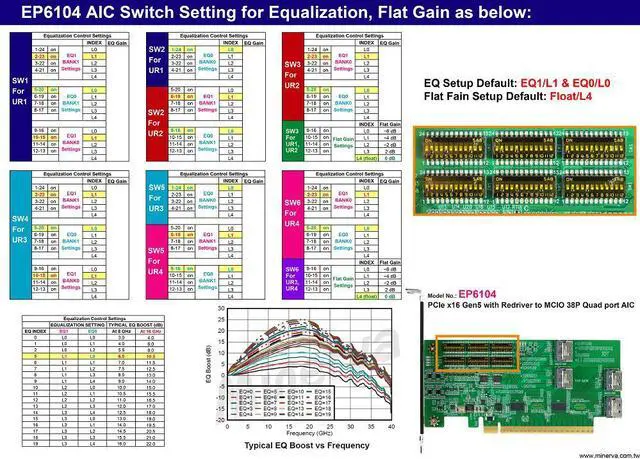

Built-in ReDriver controller to extend PCIe 5.0, 32GT/s 16 lanes signals and may provide programmable linear equalization, flat gain.

ReDriver CTLE boosts up to 22 dB at 16 GHz

The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies

Built-in PCIe 100MHz clock buffer(Address: 0x6C) for MCIO 38P dual port to drive PCB more trace reachand longer cable length.

Built-in SMBus Switch(Address: 0x70) with Reset funtion for MCIO 38P quad port SMBus communication

Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote MCIO 38P dual port Reset signals

Built-in PERST# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.

Supports PCIe PERST# for OOB(out of band) management to remote MCIO 38P dual port Reset signals.

Built-in WAKE# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.

Built-in CLKREQ# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.

LED1 Green ON indicates +12V ready

LED2 Green ON indicates +3.3V ready

LED3 Green ON indicates Vaux ready

LED4 Red ON indicates Input +12V Error

LED5 Green ON to OFF indicates PERST# Normal (Function intentionally inverted)

LED6 Green ON to OFF indicates WAKE# Normal (Function intentionally inverted)

LED7 Green ON to OFF indicates CLKREQ# Normal (Function intentionally inverted)

LED8 Green ON indicates Add-in card present

Specifications:

PCI Express Base Specification Rev 5.0

PCIe_CEM_R5.1_V1.0_08072023_NCB

SFF-TA-1016 Rev 1.3

Applications:

Rack server

Microserver and Tower server

High performance computing

Hareware accelerator

Storage Controller HBA(Host Bus Adapter)

Desktop PC/motherboard

Part Number: GHC38-1951

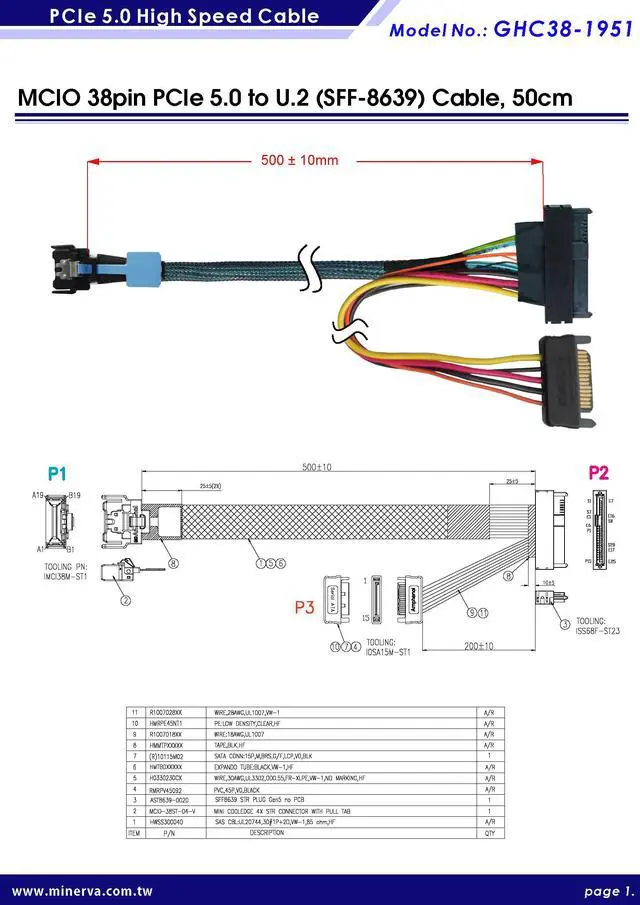

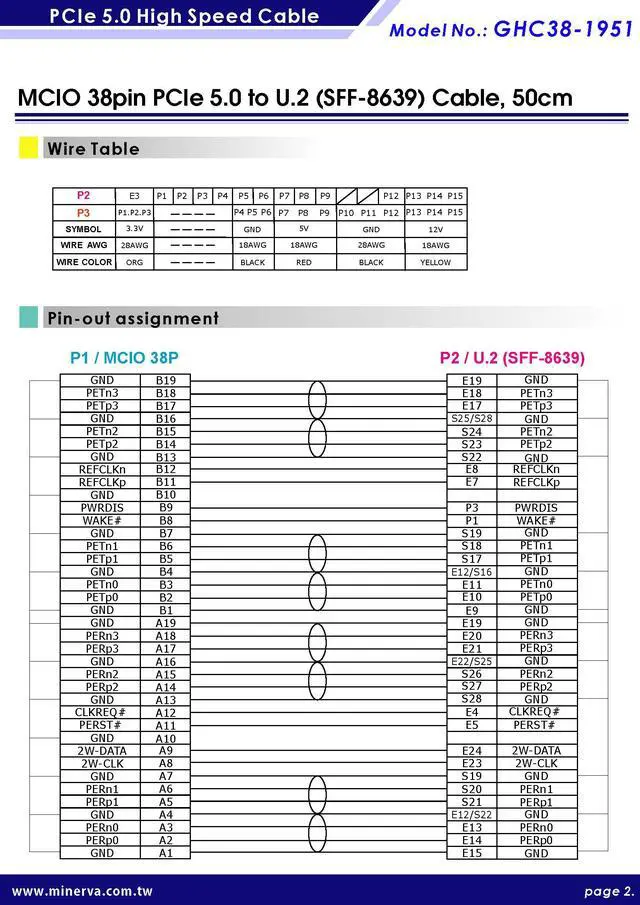

Product Description: MCIO 38P PCIe 5.0 to U. 2 (SFF-8639) Cable

Cable Length: 50CM
