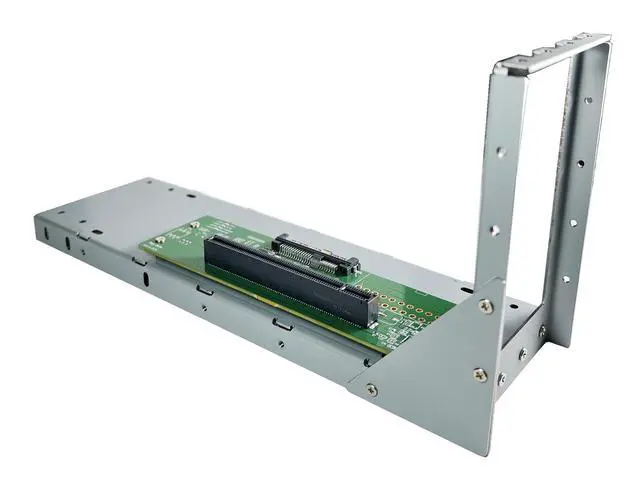

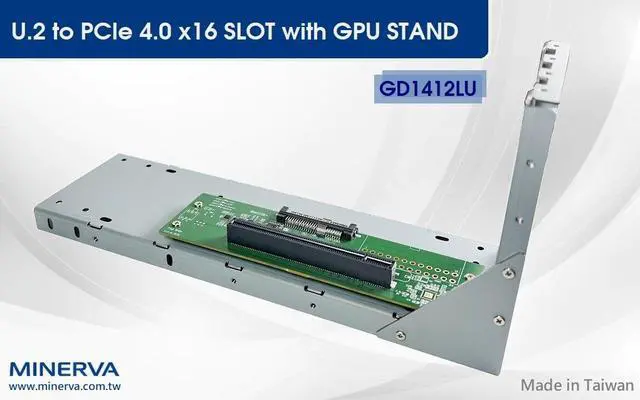

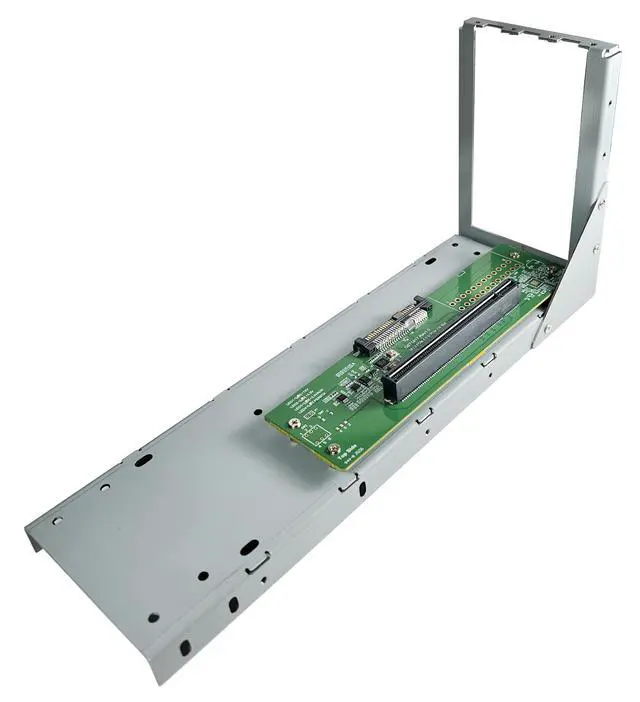

U.2 to PCIe 4.0 x16 slot with GPU STAND
- www.minerva.com.tw
- Designed / Made in Taiwan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- U.2 PCIe 4.0 to PCIe x16 Slot with 4-lane data link width convert
- Built-in U.2/ SFF-8639 connector with 30u(0.76um) min Au mating area plating
- Built-in PCIe 5.0 x16 Slot with 30u(0.76um) min Au mating area plating
- Built-in Fuse to protect input 12V/ 5A over current
- Support 12V to 3.3V PWM Power Controller
- Support 3.3VAUX with Load Switch protection
- Built-in PCIe PERST# Bus Buffer & Programmable-Delay Supervisory Circuit
- Built-in PCIe WAKE# Auto-Bidirectional Multi-Voltage Level Translator
- Built-in PCIe CLKREQ# Auto-Bidirectional Multi-Voltage Level Translator
- Built-in SMBus Hot Swappable Bus and Buffer
- LED1 PCIe +12V power ready
- LED2 PCIe +3.3V power ready
- LED3 PCIe 3.3Vaux power ready
- LED4 ON to OFF indicates PCIe PERST# OK
