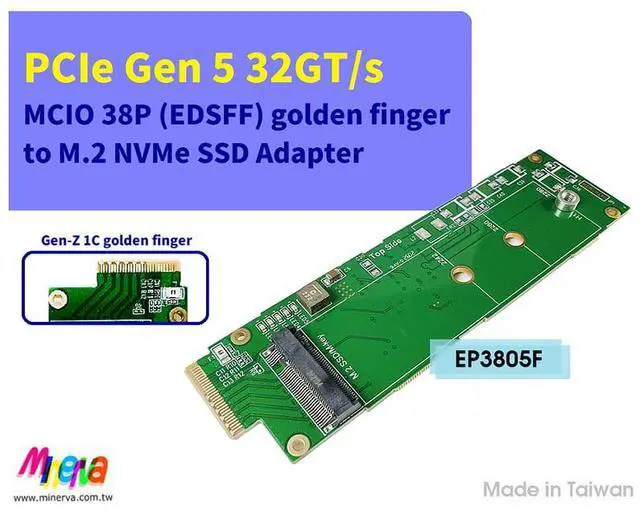

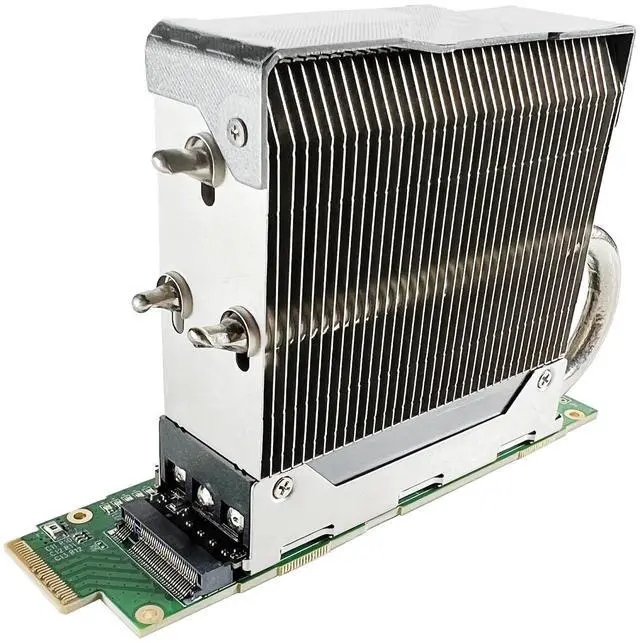

EDSFF (Gen-Z) 1C PCIe 5.0 to M.2 NVMe SSD Adapter

Part Number: EP3805F

Product Description: MEDSFF (Gen-Z) 1C PCIe 5.0 to M.2 NVMe SSD Adapter

Features:

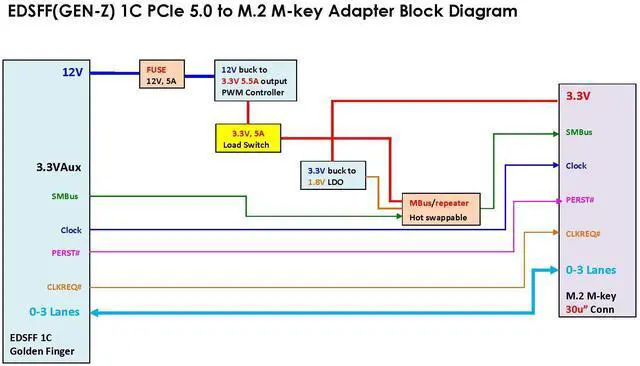

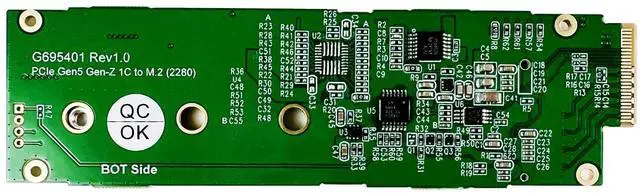

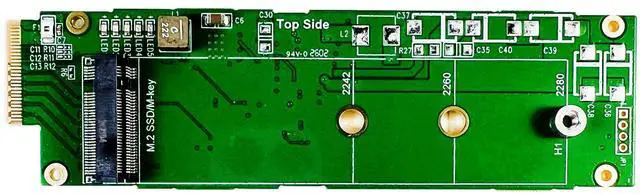

M.2 NVMe to EDSFF(GEN-Z) 1C convert

Built-in M.2 M-key connector

12V Input power rail built-in 5A Fuse

PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD

5.5A maximum output current

Output Discharge Control

The output overcurrent protection(OCP)

Uundervoltage lock out protection(UVLO) monitor

Over/Under Voltage Protection

Thermal shutdown protection

ESD HBM (Human Body Mode)/500V

Supports M.2 CLKREQ# tied to EDSFF 1C A11 pin

Supports M.2 /1.8V to EDSFF/3.3V SMBus Level Shift, isolated and repeater

LED1 Green LED on indicates 3.3V power ready

LED2 Green LED on indicates 1.8V power ready

LED3 Red LED on to off indicates PCIe PERST# signals implementation

LED4 Red LED on to off indicates PCIe CLKREQ# signals

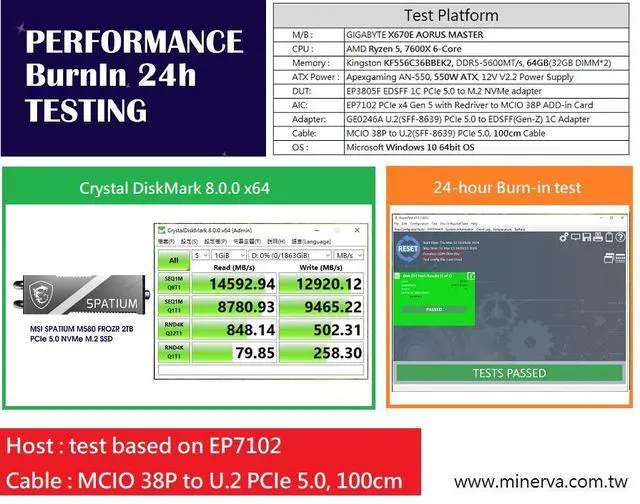

Specifications:

Compliant with NVM Express 2.0

Support PCI Express Base Specification Rev 5.0

Support SSD_Form_Factor_Version1_a

Compliant with PCI_Express_M.2_Spec_Rev5.1_05012024_NCB

Compliant with SFF-TA-1002Rev1.5.2 Form Factor

1. Compliant with SFF-TA-1009Rev4.1a Pin and Signal Specification
