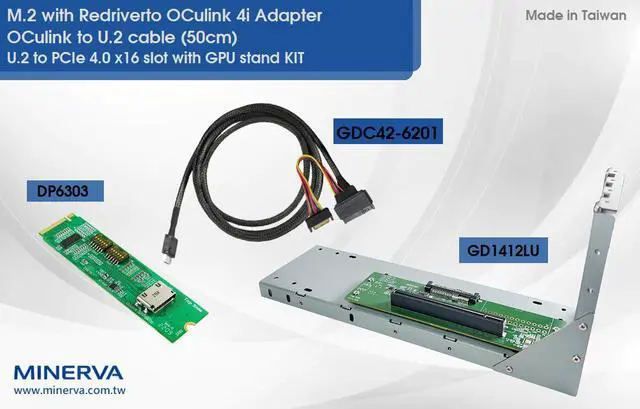

M.2 with Redriver to OCulink adapter+PICe Gen 4 OCulink 4i to U.2 Cable 50cm+U.2 to PCIe 4.0 x16 slot with GPU stand

DP6303 - M.2 with Redriver to OCulink 4i adapter

1. OCulink 4i (SFF-8612) to M.2 PCIe 4.0 convert
2. Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
3. Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
4. Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
5. Built- in SMBus bidirectional buffer repeater and Voltage level shift
6. Built- in PERST# Bidirectional Voltage-Level Translator
7. Built- in WAKE# Bidirectional Voltage-Level Translator
8. Built- in CLKREQ# Bidirectional Voltage-Level Translator
9. M.2 CLKREQ# signal is tied to SFFF-8612 B13 pin
10. Built- in PWRDIS Bidirectional Voltage-Level Translator
11. M.2 PWRDIS signal is tied to SFFF-8612 A9 pin

GDC42-6201- PCIe Gen4 OCulink 4i cable 50cm

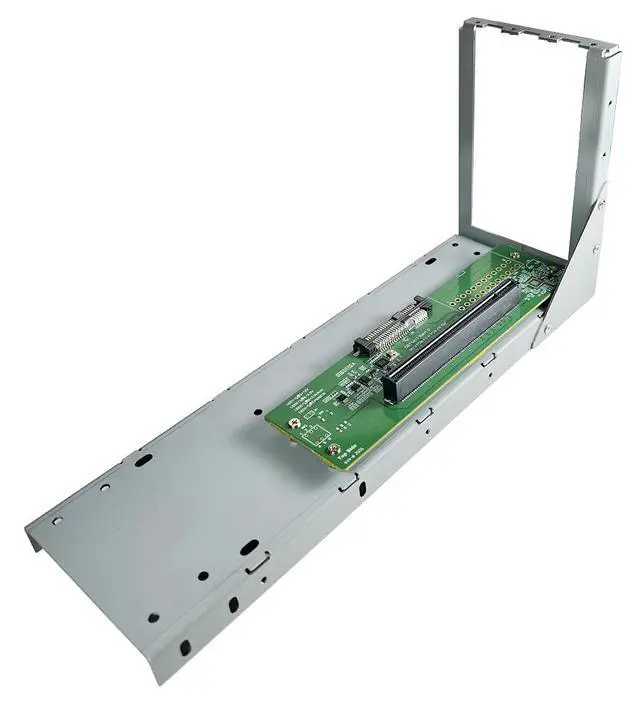

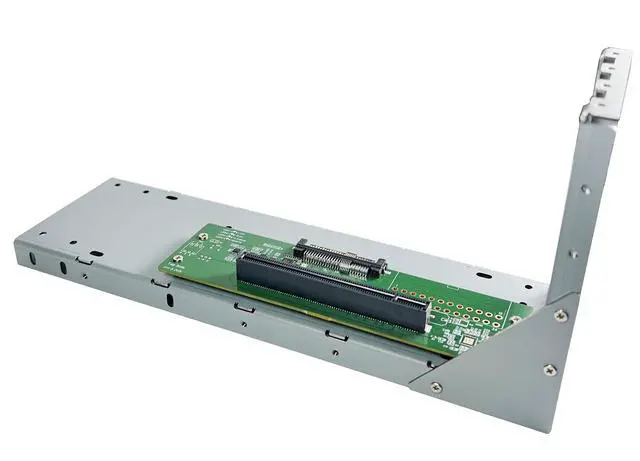

GD1412LU - U.2 (SFF-8639) to PCIe 4.0 x16 slot with GPU stand

1. U.2 PCIe 4.0 to PCIe x16 Slot with 4-lane data link width convert
2. Built-in U.2/ SFF-8639 connector with 30u(0.76um) min Au mating area plating
3. Built-in PCIe 5.0 x16 Slot with 30u(0.76um) min Au mating area plating
4. Built-in Fuse to protect input 12V/ 5A over current
5. Support 12V to 3.3V PWM Power Controller
6. Support 3.3VAUX with Load Switch protection
7. Built-in PCIe PERST# Bus Buffer & Programmable-Delay Supervisory Circuit
8. Built-in PCIe WAKE# Auto-Bidirectional Multi-Voltage Level Translator
9. Built-in PCIe CLKREQ# Auto-Bidirectional Multi-Voltage Level Translator
10. Built-in SMBus Hot Swappable Bus and Buffer
11. LED1 PCIe +12V power ready
12. LED2 PCIe +3.3V power ready
13. LED3 PCIe 3.3Vaux power ready
14. LED4 ON to OFF indicates PCIe PERST# OK
