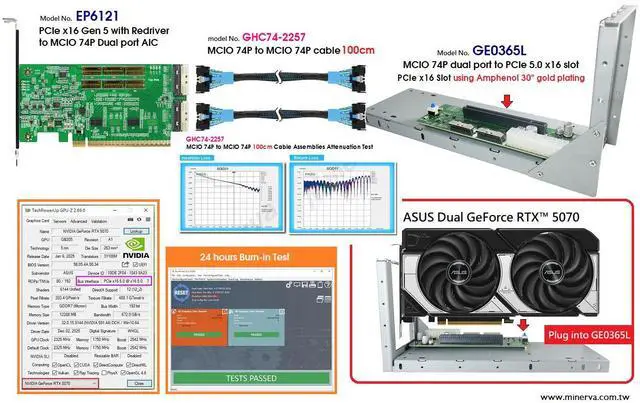

    PCIe x16 Gen5 with Redriver to MCIO 74P Daul port

    Be the first to review this product...
    • www.minerva.com.tw
    • Designed / Made in Taiwan
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

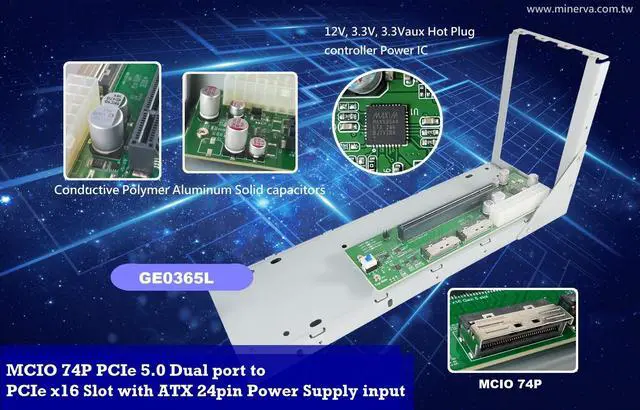

    1. MCIO 74P dual port to PCIe x16 data link width convert
    2. Built-in MCIO 74P connector x2pcs with 30u(0.76um) min Au mating area plating
    3. Built-in PCIe 5.0 x16 Slot with 30u(0.76um) min Au mating area plating
    4. Built-in ATX 24-pin Power supply connector
    5. +5VSB Input with Bidirectional TVS(TRANSIENT VOLTAGE SUPPRESSOR)
    6. Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON
    7. Built-in MAX5954A PCI Express Power Hot-Plug Controller
    8. Hot Swaps +12V, +3.3V, and 3.3V Auxiliary Power Rail
    9. Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
    10. Drives two external n-channel MOSFETs to control the +12V and +3.3V main outputs
    11. Built-in Conductive Polymer Aluminum Solid Capacitors
    12. For 75W PCIe x16 Slot Power Supply Rail Requirements as follows:
    13. +12V Voltage Supply Current Capacitive Load : 5.5 A current, 1470 F
    14. +3.3 Voltage Supply Current Capacitive Load : 3 A current, 2300 F
    15. 3.3aux Voltage Supply Current Capacitive Load : 375 mA current, 330 F
    16. Built-in PCIe PERST# Bus Buffer & Programmable-Delay Supervisory Circuit
    17. Built-in PCIe WAKE# Auto-Bidirectional Multi-Voltage Level Translator
    18. Built-in PCIe CLKREQ# Auto-Bidirectional Multi-Voltage Level Translator
    19. Built-in SMBus Hot Swappable Bus and Buffer
    20. Through MCIO 74P(CN1) B8 pin connects to PCIe x16 Slot B30 pin
    21. Through MCIO 74P(CN1) A12 pin connects to PCIe x16 Slot B12 pin
    22. LED1 PCIe +12V power ready
    23. LED2 PCIe +3.3V power ready
    24. LED3 PCIe 3.3Vaux power ready
    25. LED4 ON to OFF indicated PCIe PERST# OK
