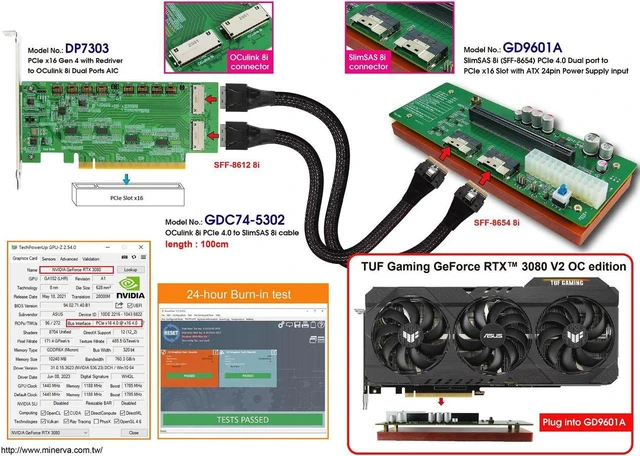

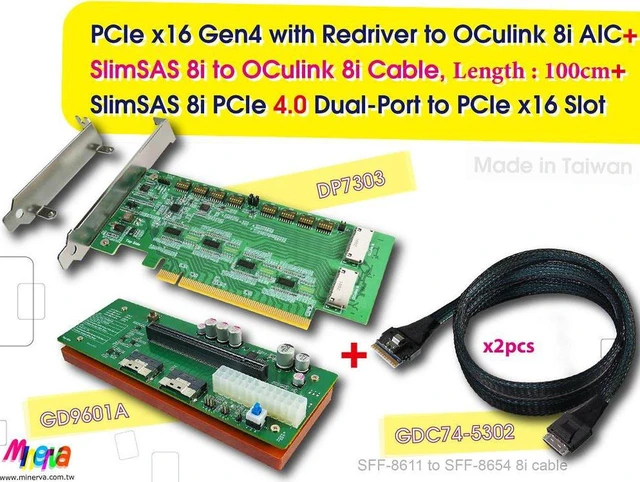

PCIe x16 Gen 4 with ReDriver to OCulink 8i x2 + OCulink 8i to SlimSAS 8i cable,100cm x2pcs + SlimSAS 8i x2 to PCIex16 Slot

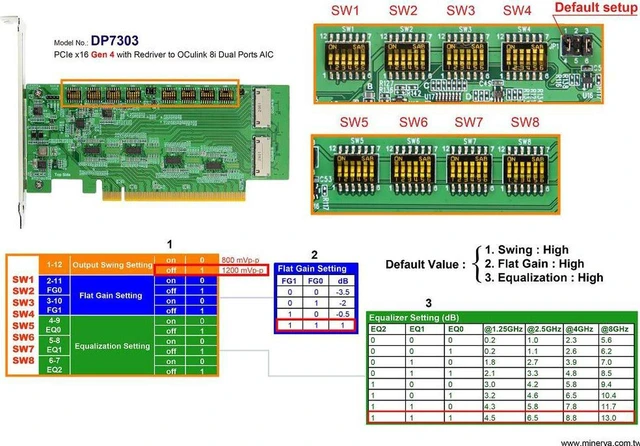

#"DP7303"adapter:
Features:
* OCulink 8i(SFF-8612) to PCIe x16 Gen4 convert
* Built-in SFF-8612 8i connector x2pcs, pin define by SFF-9402 Rev 1.1

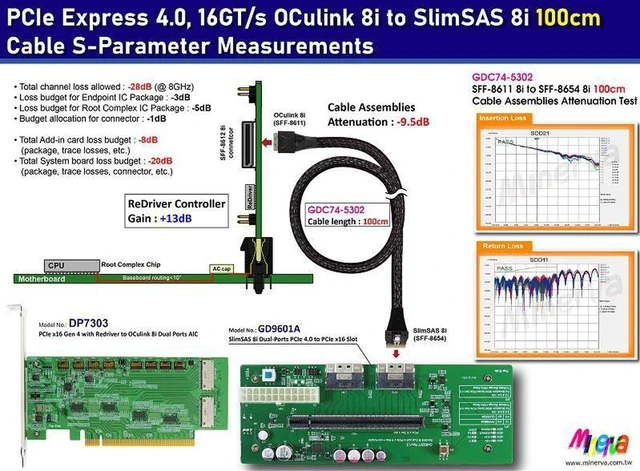

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for OCulink 8i(SFF-8612) to drive longer cable length. It may be buffered and fanned out to the OCulink 8i(SFF-8612) clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for OCulink 8i(SFF-8612) SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote OCulink 8i (SFF-8612) Reset signals.
* Supports PCIe PERST# management to control OCulink 8i(SFF-8612) Reset signals.
* Built-in PERST# Bus Buffer to be used over longer cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used over longer cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used over longer cable length.
* Built-in PWRBRK# Bus Buffer to be used over longer cable length.
* Built-in 12V to 3.3V, 5.5A PWM Power controller
* Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
* The WAKE# signals power supply can choose + 3.3V or 3.3VAUX, the default is 3.3VAUX
* D1 Green LED on indicates AIC ready

#Part Number: GDC74-5301
Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 50CM

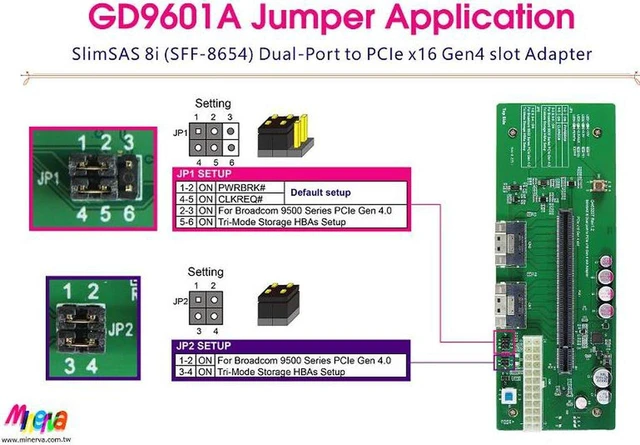

#GD9601A Adapter
Features:
* SlimSAS 8i dual port to PCIe x16 signals extension
* Built-in ATX 24-pin Power supply connector
* +5VSB Input with Bidirectional TVS (TRANSIENT VOLTAGE SUPPRESSOR)
* Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON
* Built-in SlimSAS 8i(SFF-8654) with 30 microinches connector 2 pcs
* Built-in PCIe x16 with 15 microinches of gold on mating end Slot
* Built-in MAX5954A PCI Express Power Hot-Plug Controller
* Hot Swaps +12V, + 3.3V, and 3.3V Auxiliary Power Rail
* Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
* Drives two external n-channel MOSFE
Ts to control the +12V and + 3.3V main outputs
* Built-in Conductive Polymer Aluminum Solid Capacitors For 75W PCIe x16 Slot Power Supply Rail Requirements as follows:
* +12V Voltage Supply Current Capacitive Load: 5.5 A Current, 1470 µF
* + 3.3 Voltage Supply Current Capacitive Load: 3 A Current, 3300 µF
* 3.3 aux Voltage Supply Current Capacitive Load: 375 mA Current, 330 µF
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe PERST# Bus Buffer and manul switch
* Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
* Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
* Built-in PCIe PWRBRK# Bus Buffer
* LED1 Green On indicates +12V power ready for PCIe x16 Slot
* LED2 Green On indicates + 3.3V power ready for PCIe x16 Slot
* LED3 Green On indicates 3.3V aux power ready for PCIe x16 Slot
* LED4 Green On to OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1

Supports the following Broadcom series products
Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA
Tri-Mode Storage Adapters:
* MegaRAID 9670W-16i
* MegaRAID 9670-24i
* MegaRAID 9660-16i
* eHBA 9620-16i
* eHBA 9600-24i
* eHBA 9600-16i
* eHBA 9600-8e8i

Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters:
* MegaRAID 9560-16i
* MegaRAID 9560-8i
* MegaRAID 9580-8i8e
* HBA 9500-16i
* HBA 9500-8i
* P411W-32P
