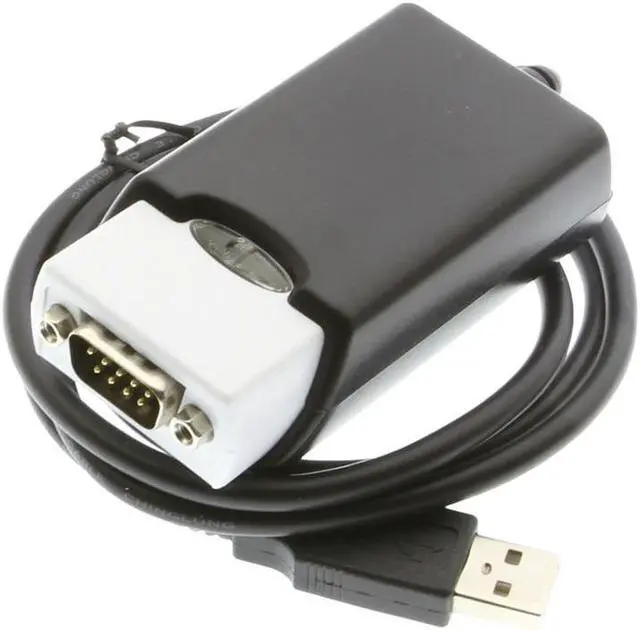

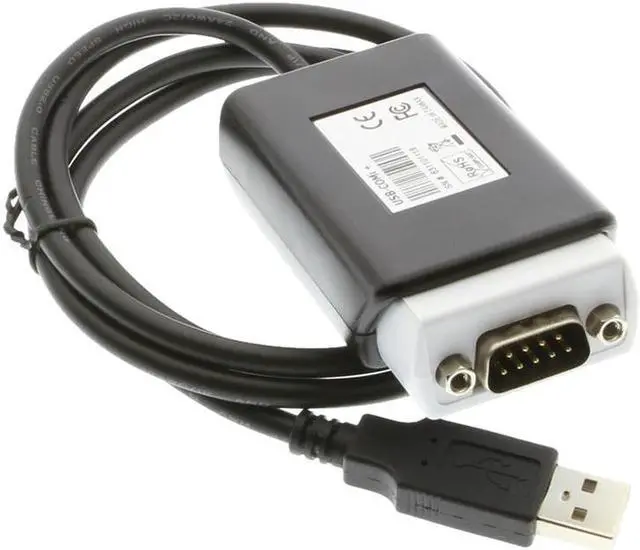

USBGear USB 2.0 Industrial Adapter User Selectable RS232/422/485 FTDI Chip

An Industrial USB to Single RS-232/422/485 adapter designed to expand industrial communication port usage. The 1 port USB to serial adapter connection to your computer enables factory automation and multi-drop collection devices or other serial device to function quickly.

Application uses include but not limited too:
Factory automation equipment multi-drop data collection devices barcode readers time clocks scales data entry terminals PC to PC long distance communications and serial communication in harsh environments.

Features:

• Adds a high speed RS-232 / 422 / 485 serial port via USB connection
• Works with USB 1.1 & 2.0 host port
• 384 byte receive buffer
• 128 byte transmit buffer for high speed data throughput
• Requires no IRQ DMA I/O port
• Data rates: 300 bps to 1M bps

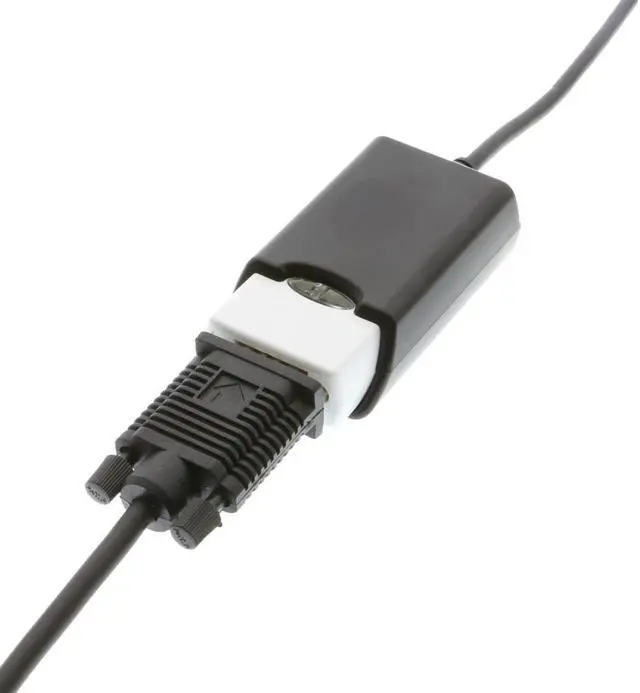

• Connector: one DB 9 Male connector
• Auto transmit buffer control for 2-wire RS-485 half-duplex operation
• Termination and bias resistors installed on-board
• RS-232 data signals: DCD RxD TxD DTR GND DSR RTS CTS RI
• RS-422 data signals: Tx- Tx+ Rx+ Rx- GND RTS- RTS+ CTS+ CTS-
• RS-485 data signals: Tx- Tx+ Rx+ Rx- (4 wire) and data- data+ (2 wire)
• COM port number assigned can be changed to any COM port number required
• Monitor LEDs of TxD RxD indicating port status

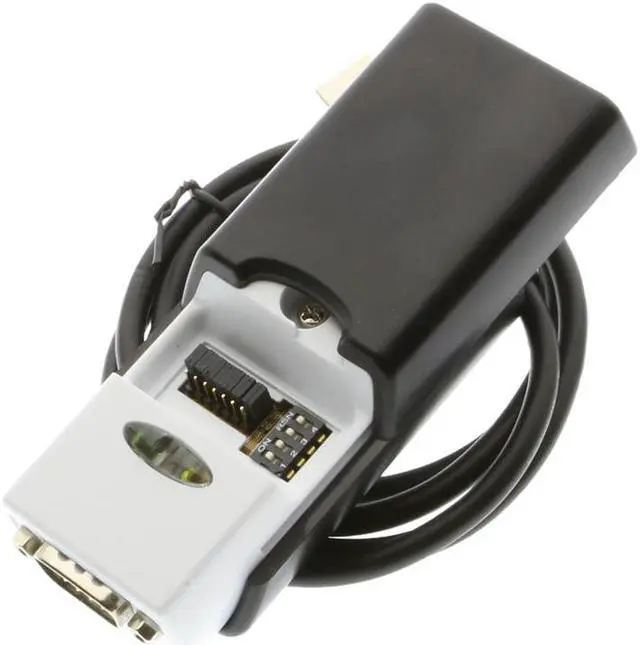

• Easy operating mode configuration and setting
• Virtual COM port drivers provided for Windows 7 Vista 2003 XP 2000
