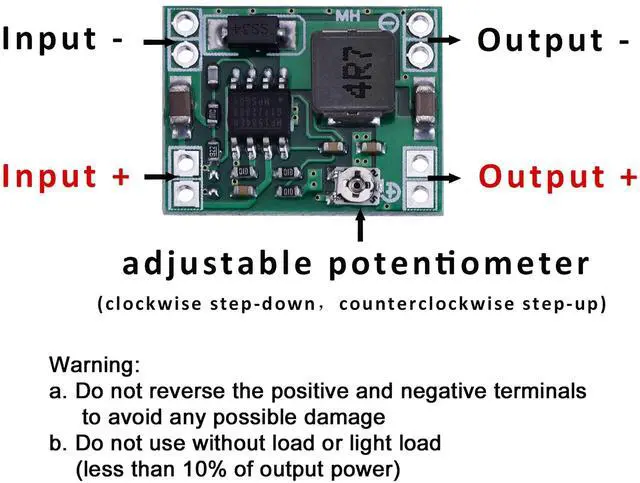

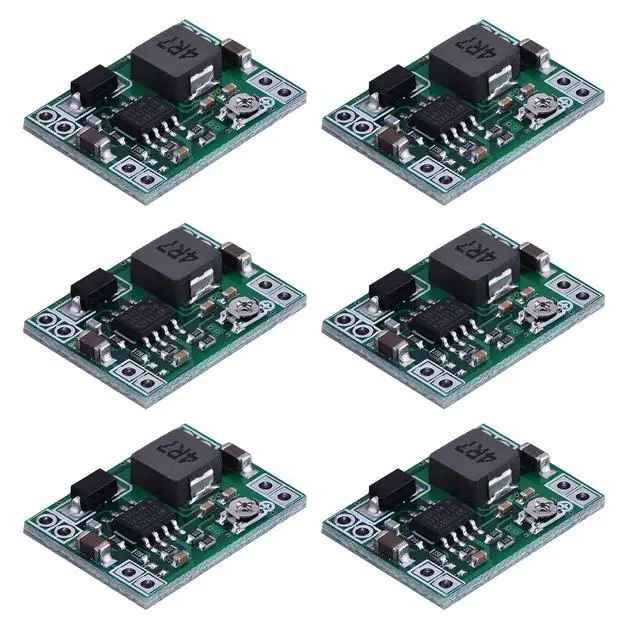

Mini DC-DC Buck Converter Adjustable Power Module 24V to 12V 9V 5V 3V(6 Pack)
Limited time offer, ends 07/06 By YingLiYingMeiKeJi
- About this item

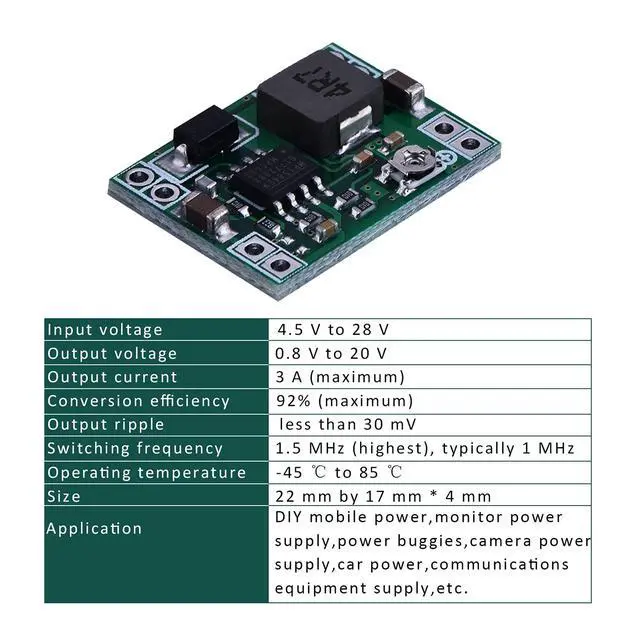

- Mini DC to DC buck converter module with a wide operating range
- Input voltage: 4.5 V to 28 V; Output voltage: 0.8 V to 20 V
- Output current: 3 A (maximum); Conversion efficiency: 92% (maximum)
- Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz

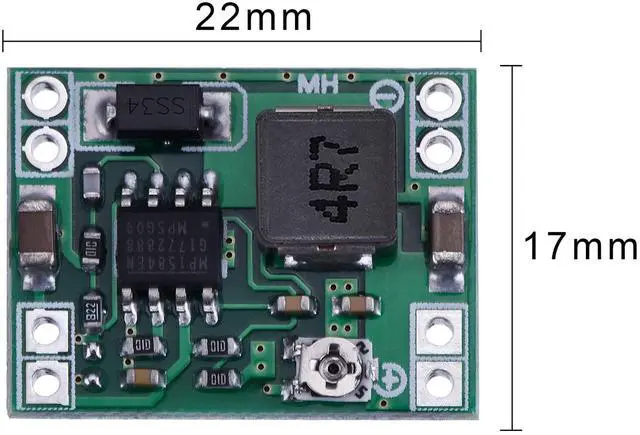

- Operating temperature: -45 to 85 ; Size: 0.16 x 0.87 x 0.16 inches
- Dimensions: 0.16 x 0.87 x 0.16 inches.
+
+
