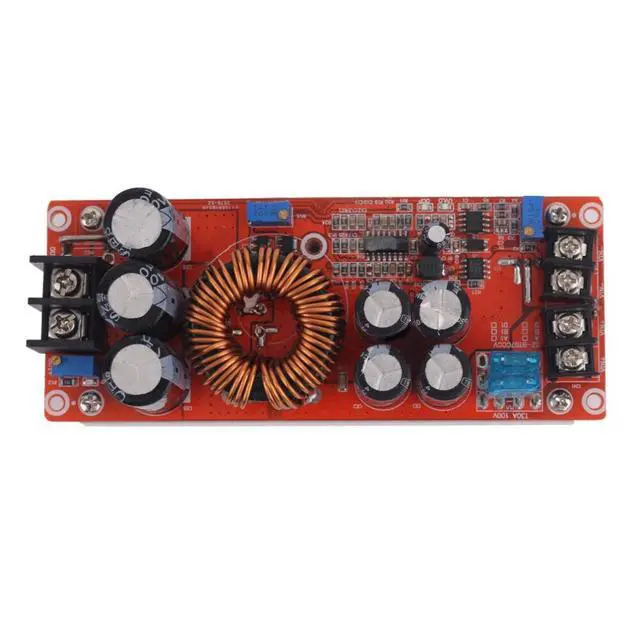

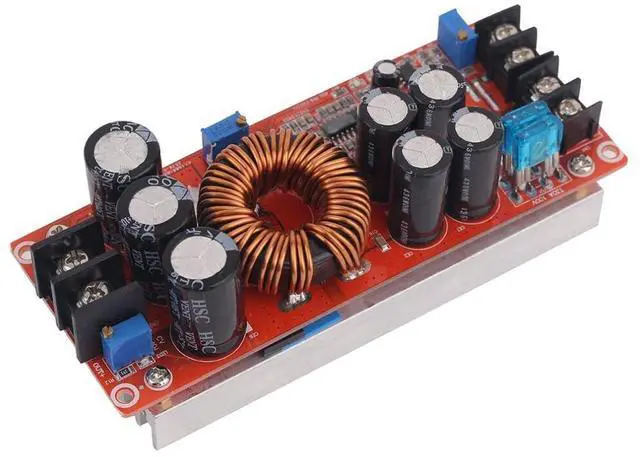

1200W 20A DC Converter Boost Car Step-up Power Supply Module Adjustable Voltage Converter 8-60V to 12-83V
- About this item
- FeaturesInput overcurrent protection; Short circuit protection; Input reverse connection protection; Low battery protection.

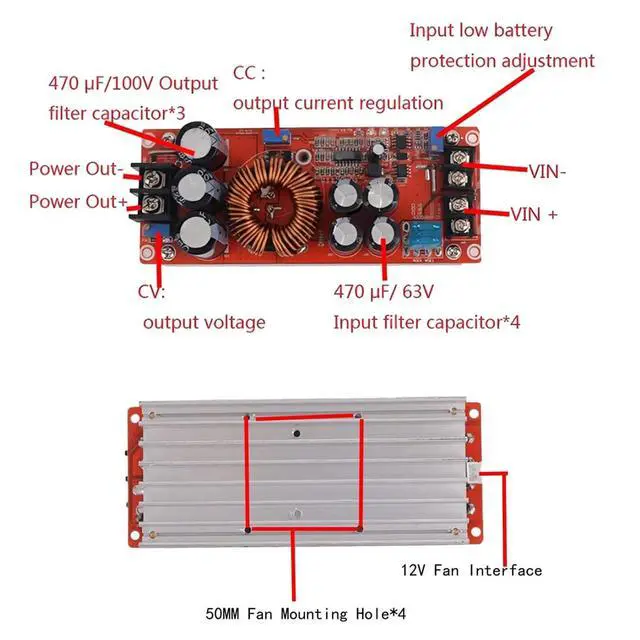

- DIY projectsIt adopts 7 electrolytic capacitors and a 33MM high-power iron-silicon-aluminum magnetic ring to prevent over-temperature magnetic saturation under high current conditions. Use a piece of aluminum radiator on the back to dissipate heat, with reserved fan mounting holes, suitable for various DIY projects.
- Adjustable Voltage1200W 20A DC converter boost with an input voltage range of DC 10-60V and an output voltage range of DC 12-80V, which can be adjusted arbitrarily; Input current: 0.5-20A (MAX), Max output power is 1200W. (If exceeding 15A, please add fan cooling.)
- Output PowerInput voltage * 20A, for example: input 12V * 20A = 240W, input 24V * 20A = 480W, input 60V * 20A = 1200W. Note: Do not use short-circuit output method to adjust the current. It is recommended to use a smaller adjustment range.
- Widely ApplicationCan be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various battery charging.

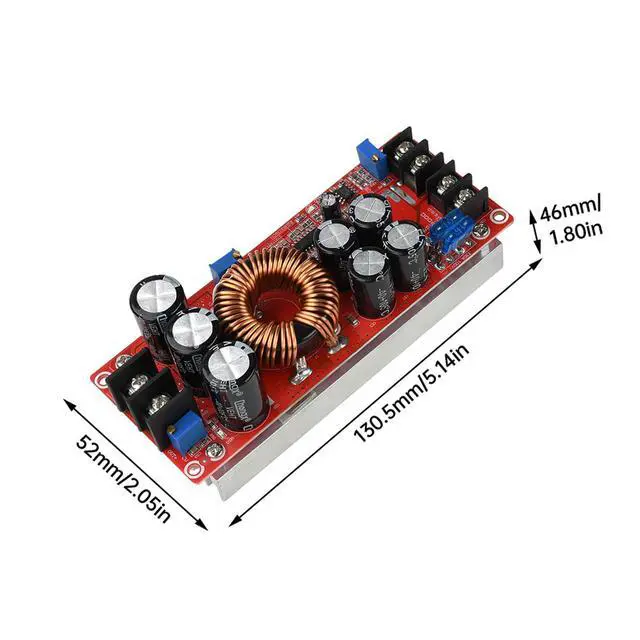

- Size5.35 x 2.68 x 1.34 inches.
+
+
