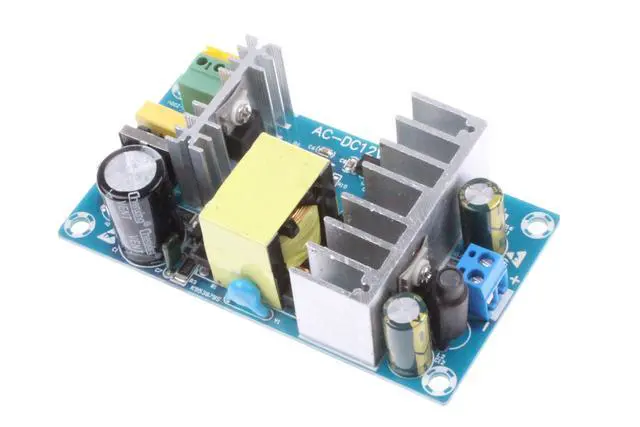

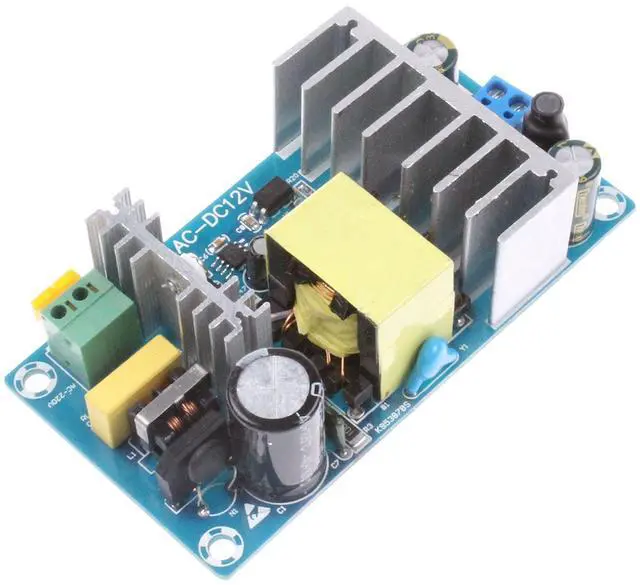

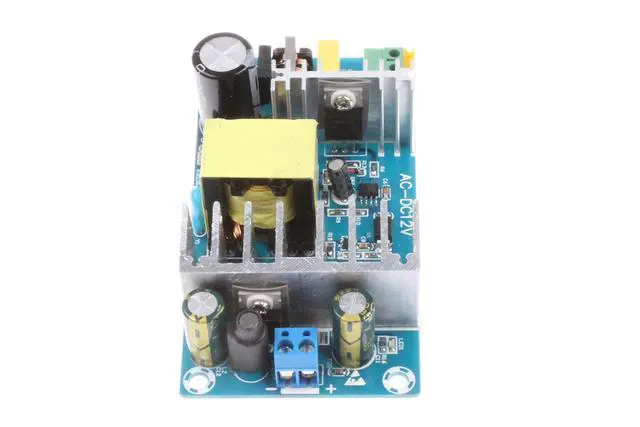

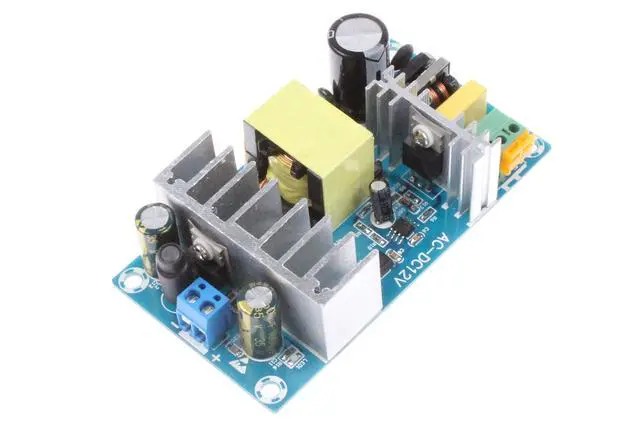

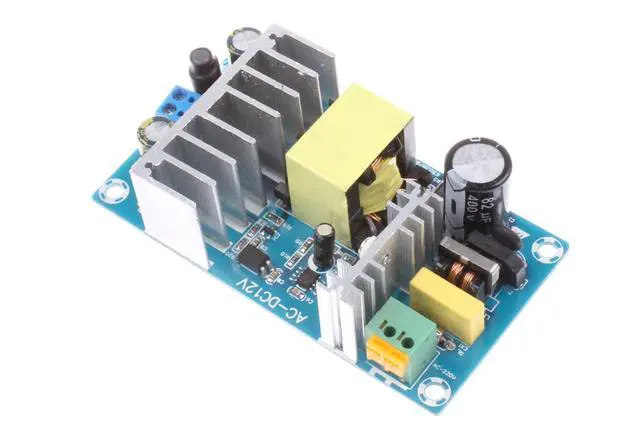

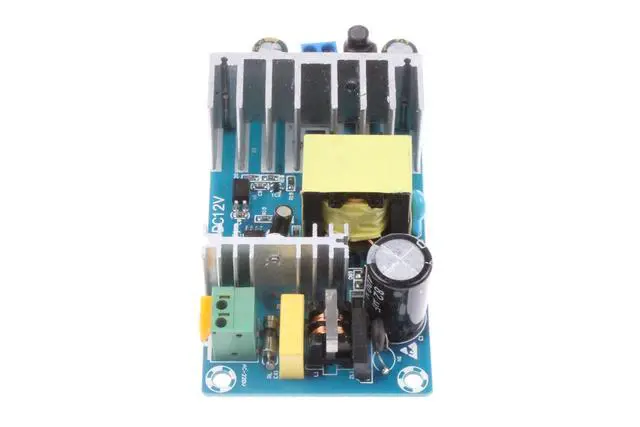

AC to DC 12V 8A Isolated Power Supply Module AC 120V (85-265V) to 12V 100W Max Power Module with Overcurrent Overload Short-Circuit Protection (12V 8A)

About this item
The power module adopts a double-sided PCB design, ensuring stable and reliable performance. It is suitable for the power supply of civil or industrial control systems.
The power supply features a compact size, high power capability, with an output power of up to 100W.
Input voltage: AC 120V 90 - 265V 50/60HZ (wide voltage input, suitable for various use environments).
Output voltage: DC12V±0.5V. Output current: 8A / Peak 11A. Ripple noise: 200MV.
Product size: 4.19 x 2.24 x 1.16 inches. Compact design with an indicator light.
