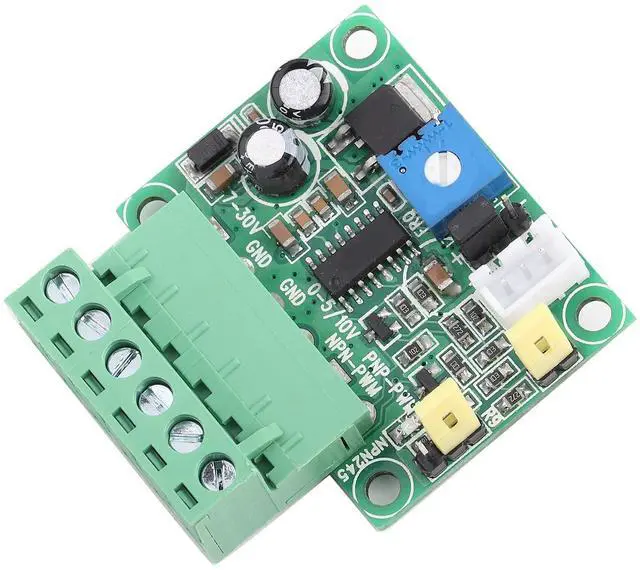

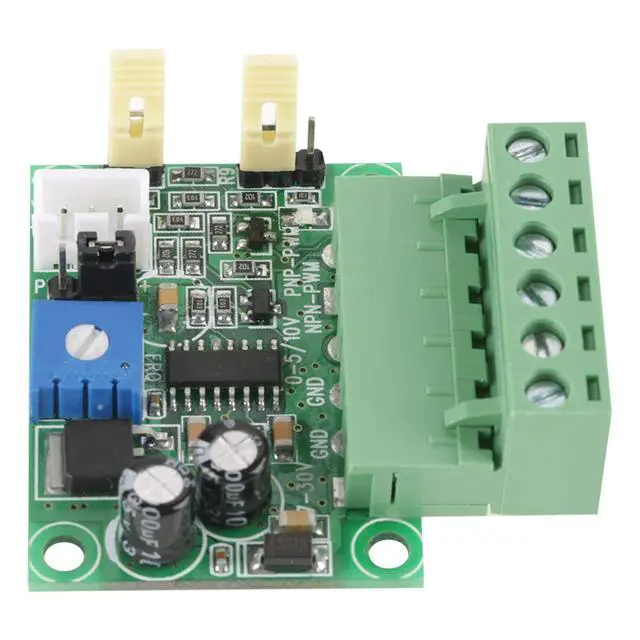

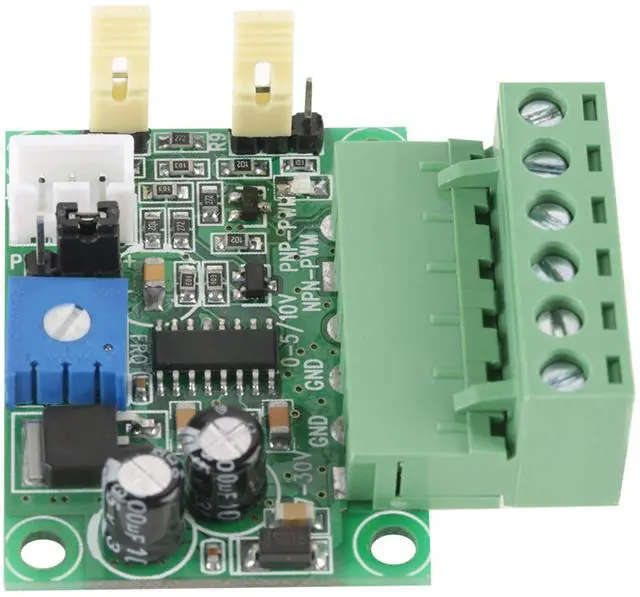

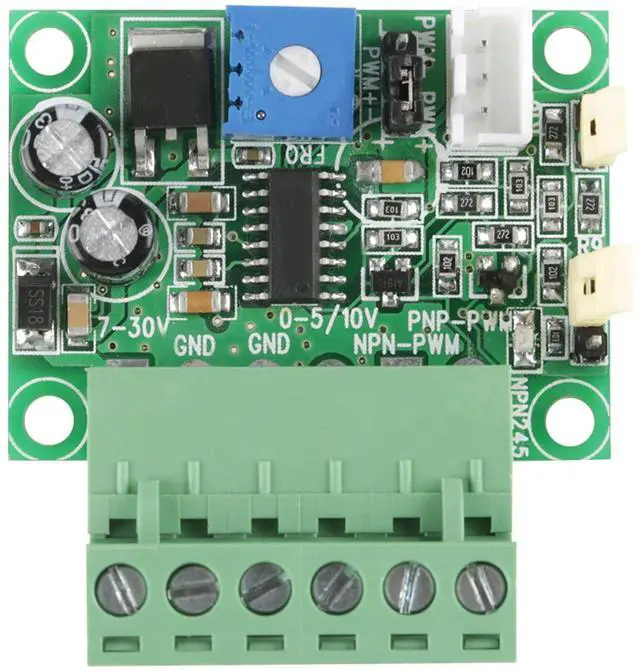

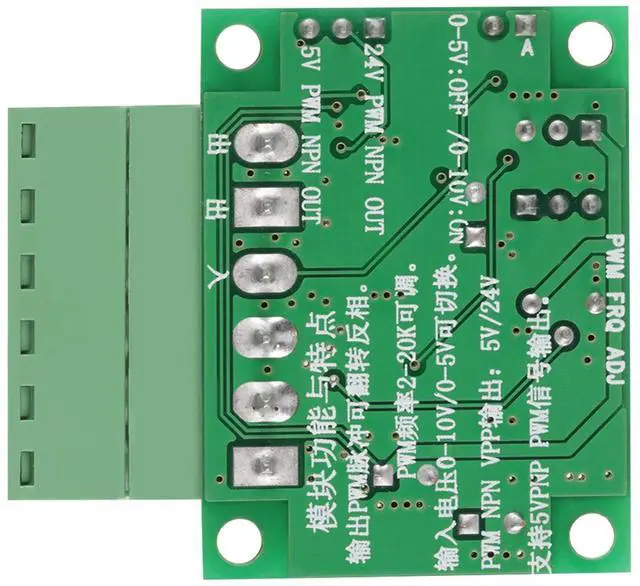

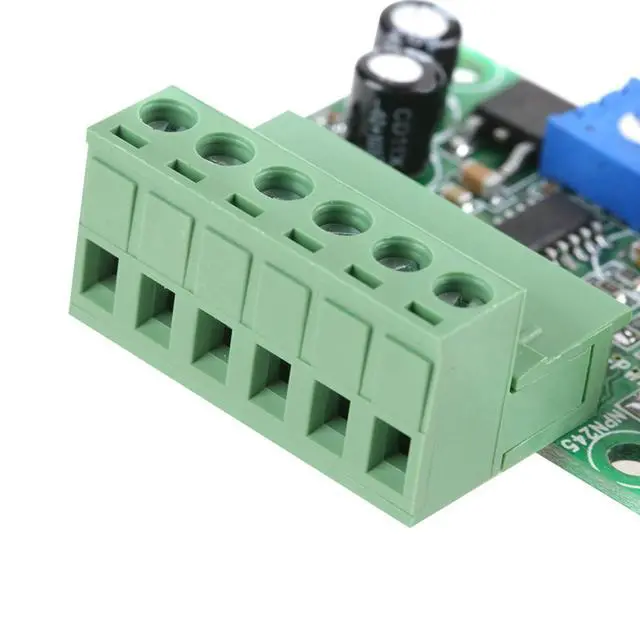

Voltage to PWM Converter, 0-5V/0-10V Analog Input Voltage to PWM 2KHZ-20KHZ Converter Module, for PWM Motor Speed Control Interface Circuit Activity
- About this item
- Voltage to PWM Converter Module: This module can convert 0-5V or 0-10V analog input voltage into PWM. You can try this PWM to analog converter.
- Wide Application: This voltage to frequency converter module is widely used for PWM motor speed control interface circuit, instrumentation AD interface conversion, and other applications that need to convert voltage to PWM. This analog to digital converter will meet your expectations.
- PWM Frequency Range: The PWM frequency range is 2KHZ-20KHZ, with a maximum of 20KHZ and a default minimum of 2KHZ. This module is made of high-quality materials.
- Settable Output Frequency: The default function of this module is converting 0-10V into 2KHZ PWM, but the output frequency can be set by adjusting the potentiometer as needed. It is practical, easy to operate and use, with a long service life.
- Two Kinds of PWM: There are two kinds of PWM: PNP-PWM output and NPN-PWM output. The PNP-PWM output is only 5V level, while the NPN-PWM output is available at both 5V and 24V levels.
- Product size: 1.9"L x 1.8"W
+
+
