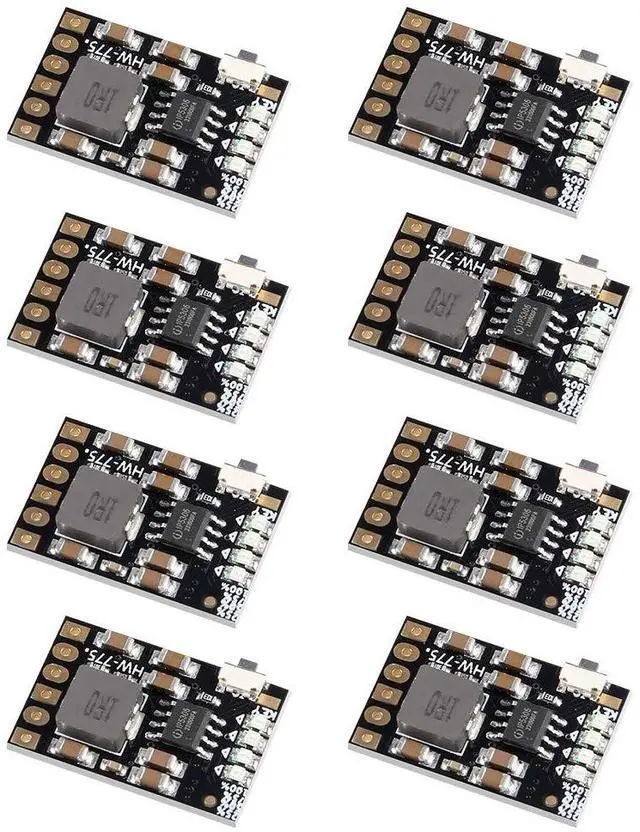

8PCS 2A 5V Charge Discharge Integrated Module 3.7V 4.2V for 18650 Lithium Battery Charging Boost Mobile Power Supply Charge and Discharge Protection Converter Protection PCB Board Module
- About this item
- Designed for MCU users, this device connects to the microcontroller for about 20 seconds to provide a low level that allows the module to continue functioning. It features low-level trigger mode (ground).

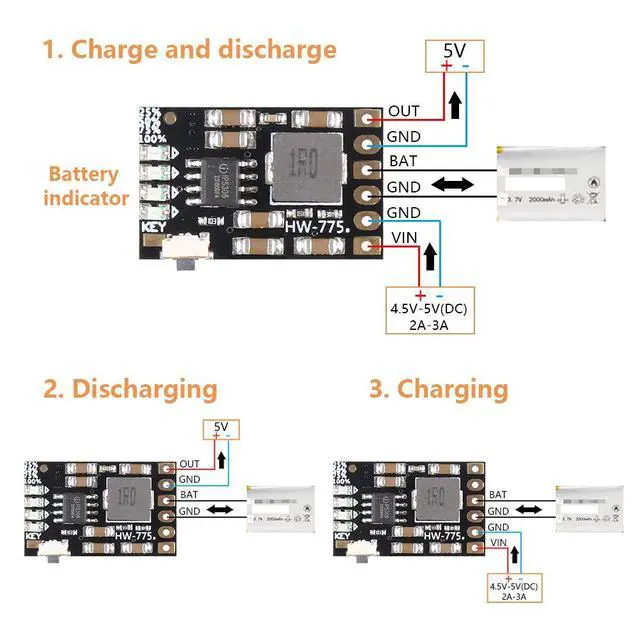

- 4 in 1 module for Charging / Discharging / Battery Protection / Battery Level Indication. Protection functions include over-current, overvoltage, over-temperature, and short circuit protection for lithium batteries.
- The output activates automatically when the load is first connected. If the load is less than 50mA, the output automatically closes after 30 seconds; if the load exceeds 50mA, the output remains active.
- High power efficiency with discharge efficiency up to 96%. In discharge mode, trigger the KEY port once to activate the output; continuously trigger the KEY port twice to deactivate it.
- Suitable for applications such as converting solar panel energy to mobile phone charging, car charging retrofits, driving recorder power supplies, household power supply, intelligent plug transformations, and fast charging adapters.

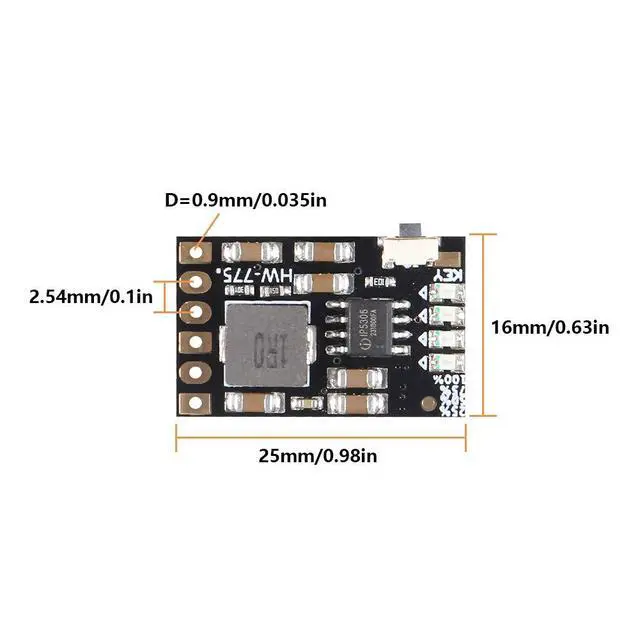

- Dimensions: 0.98 x 0.63 x 0.16 inches.
+
+
