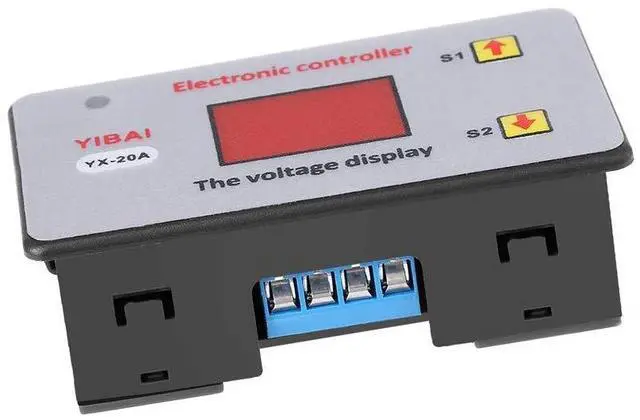

1 Pcs Battery Low Voltage Controller Protection Panel 12V-48V Undervoltage Cut Off Automatic Switch Recovery Protection Controller

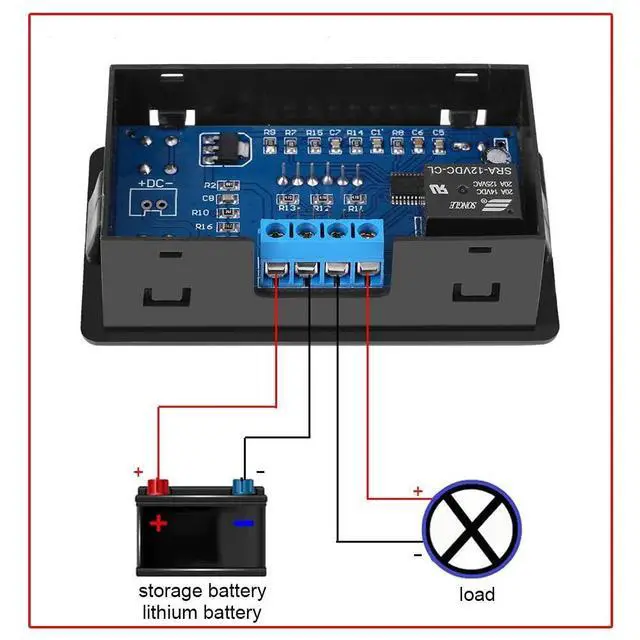

- This is an under-voltage switch controller designed to disconnect the load when the voltage drops below a predefined level. Once the battery voltage rises to a specified threshold, the module will automatically reconnect the load.

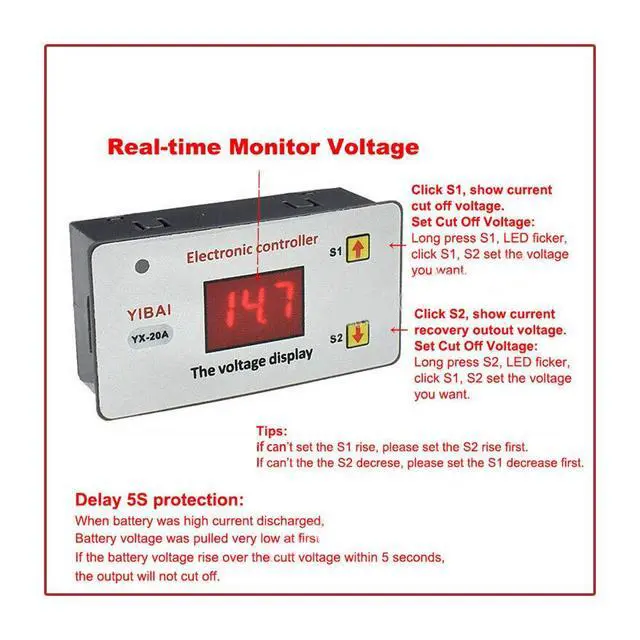

- This controller serves to protect batteries from over-discharge, thereby extending their lifespan. Both the turn-off and turn-on voltage settings are easily adjustable with the push of buttons.
- It is suitable for various 12V-48V storage and lithium battery discharge protection modules.
- Specifications include:
- - Battery voltage: 12V-48V
- - Input voltage: DC 9-60V
- - Control Precision: 0.1V
- - Power consumption: <1.5W
- - Control Current: 20A

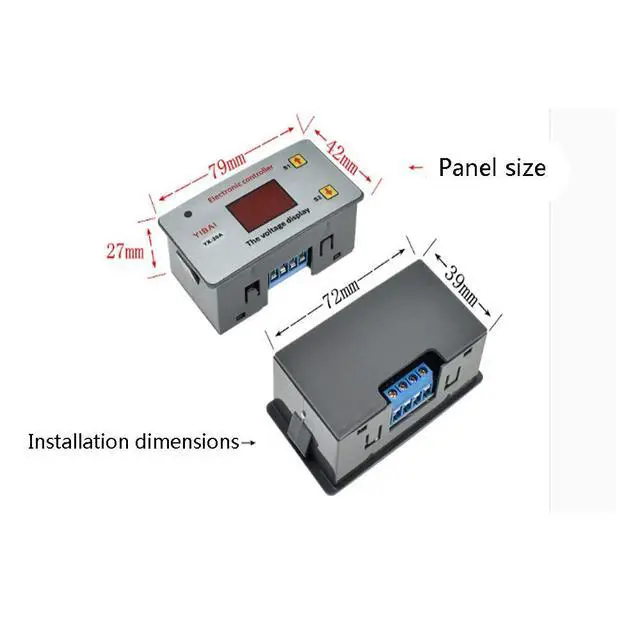

- Product Size: 6.61 x 3.66 x 1.14 inches.
+
+
