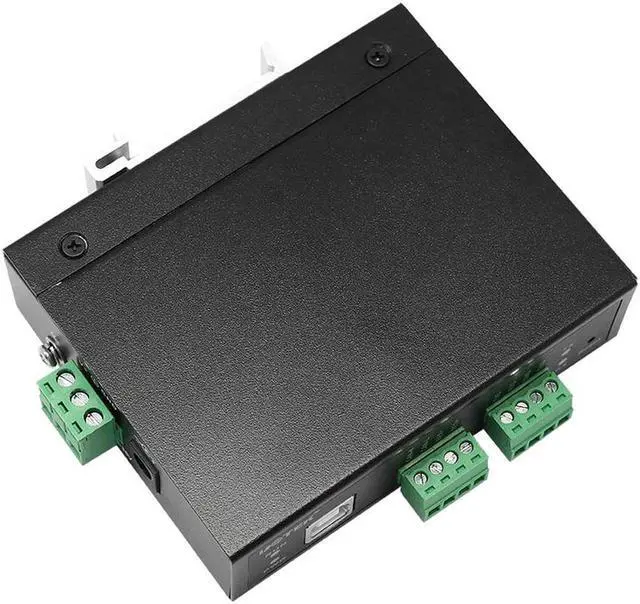

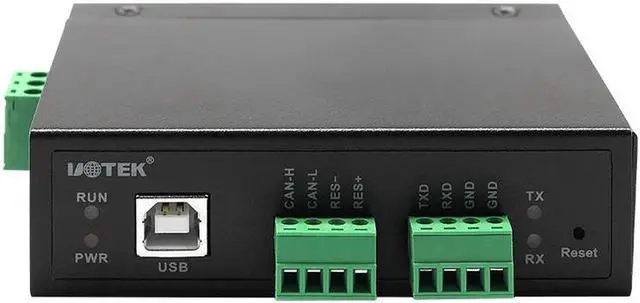

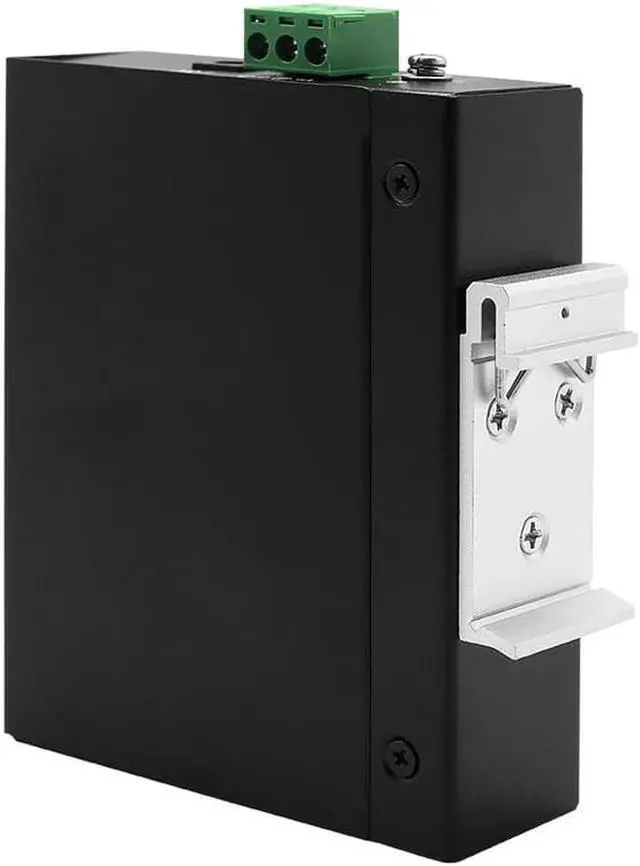

UTEK USB Can 2.0 Protocol RS232 to CAN BUS Converter USB-B RS-232 Serial Adapter Industrial Grade Connector UT-8251A
Limited time offer, ends 02/01 By EnYZME
- Supports bi-directional data transfer between CAN-bus and USB/RS-232. Support USB 2.0 protocol
- 1 CAN-bus communication interface, support 5Kbps-1Mbps baud rate; 1 USB 2.0 interface (12Mbit); 1 RS-232 communication interface, support 300bps-250Kbps baud rate
- Operating voltage: 12-36V DC/USB power supply; Operating current: 150mA@12V; Operating temperature: -40 ~ 85 °C; Storage temperature: -40 ~ 85°C
- Operating humidity: 5~95% (no condensing); Storage humidity: 5~95% (no condensing)
- Isolation voltage: 1000VDC; Electrostatic protection: air 8kV, contact 6kV; Surge protection: Power port: 1.2/50us common mode 2kV, differential mode 1kV; CAN port:600W; RS-232 port: 600W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports bi-directional data transfer between CAN-bus and USB/RS-232. Support USB 2.0 protocol
1 CAN-bus communication interface, support 5Kbps-1Mbps baud rate; 1 USB 2.0 interface (12Mbit); 1 RS-232 communication interface, support 300bps-250Kbps baud rate

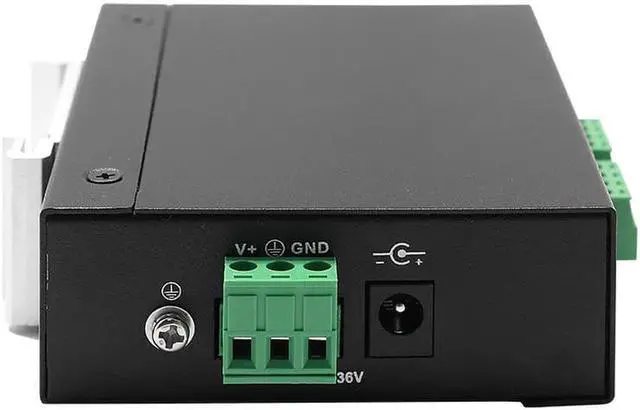

Operating voltage: 12-36V DC/USB power supply;
Operating current: 150mA@12V;
Operating temperature: -40 ~ 85 °C;
Storage temperature: -40 ~ 85°C
Operating humidity: 5~95% (no condensing);
Storage humidity: 5~95% (no condensing)
Isolation voltage: 1000VDC;
Electrostatic protection: air 8kV, contact 6kV;
Surge protection: Power
port: 1.2 /50us common mode 2kV, differential mode 1kV;
CAN port: 600W;
RS-232 port: 600W
1 CAN-bus communication interface, support 5Kbps-1Mbps baud rate; 1 USB 2.0 interface (12Mbit); 1 RS-232 communication interface, support 300bps-250Kbps baud rate
Operating voltage: 12-36V DC/USB power supply;
Operating current: 150mA@12V;
Operating temperature: -40 ~ 85 °C;
Storage temperature: -40 ~ 85°C
Operating humidity: 5~95% (no condensing);
Storage humidity: 5~95% (no condensing)
Isolation voltage: 1000VDC;
Electrostatic protection: air 8kV, contact 6kV;
Surge protection: Power
port: 1.2 /50us common mode 2kV, differential mode 1kV;
CAN port: 600W;
RS-232 port: 600W
