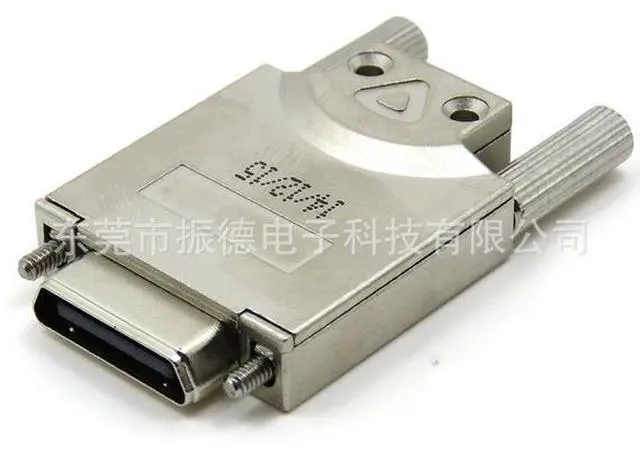

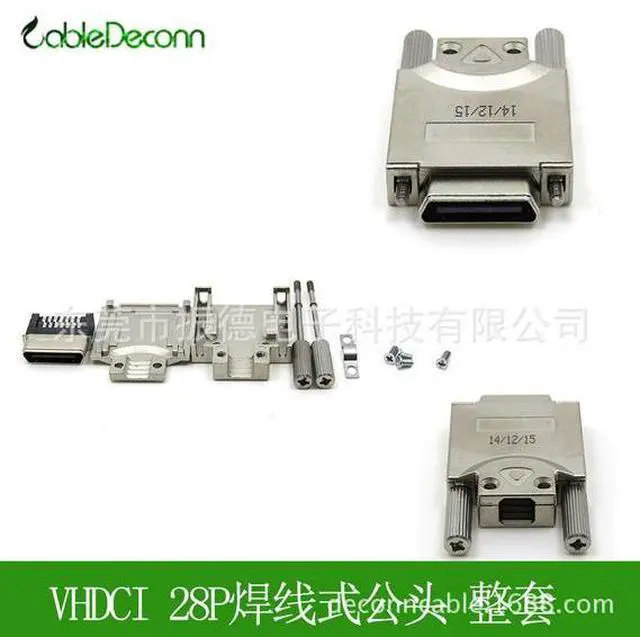

VHDCI28p SCSI28P male connector with zinc alloy screw SCSI28P complete set connector
- lectrical:
- Current Rating: 0.3 Amp
- Dielectric Withstanding Voltage: AC 250V min. (for 1 minute)
- Insulation Resistance: 500M ohms min. (at 500V DC)
- Contact Resistance: 50m ohms max. mated
- Operating Temperature: -25oC ~ +85oC
- Mechanical:
- Insulator Material: PBT and glass fiber reinforced (UL 94V-0).
- Contact Material: Phosphor Bronze.
- Contact Finish: Gold over Nickel.
- Shell Material: SPCC
- Shell Finish: Nickel Plated.
- Hood Material: Zinc Alloy
- Hood Finish: Nickel Plated
- Durability: 500 times.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
lectrical:
Current Rating: 0.3 Amp
Dielectric Withstanding Voltage: AC 250V min. (for 1 minute)
Insulation Resistance: 500M ohms min. (at 500V DC)
Contact Resistance: 50m ohms max. mated
Operating Temperature: -25oC ~ +85oC
Mechanical:
Insulator Material: PBT and glass fiber reinforced (UL 94V-0).
Contact Material: Phosphor Bronze.
Contact Finish: Gold over Nickel.
Shell Material: SPCC
Shell Finish: Nickel Plated.
Hood Material: Zinc Alloy
Hood Finish: Nickel Plated
Durability: 500 times.
Current Rating: 0.3 Amp
Dielectric Withstanding Voltage: AC 250V min. (for 1 minute)
Insulation Resistance: 500M ohms min. (at 500V DC)
Contact Resistance: 50m ohms max. mated
Operating Temperature: -25oC ~ +85oC
Mechanical:
Insulator Material: PBT and glass fiber reinforced (UL 94V-0).
Contact Material: Phosphor Bronze.
Contact Finish: Gold over Nickel.
Shell Material: SPCC
Shell Finish: Nickel Plated.
Hood Material: Zinc Alloy
Hood Finish: Nickel Plated
Durability: 500 times.
