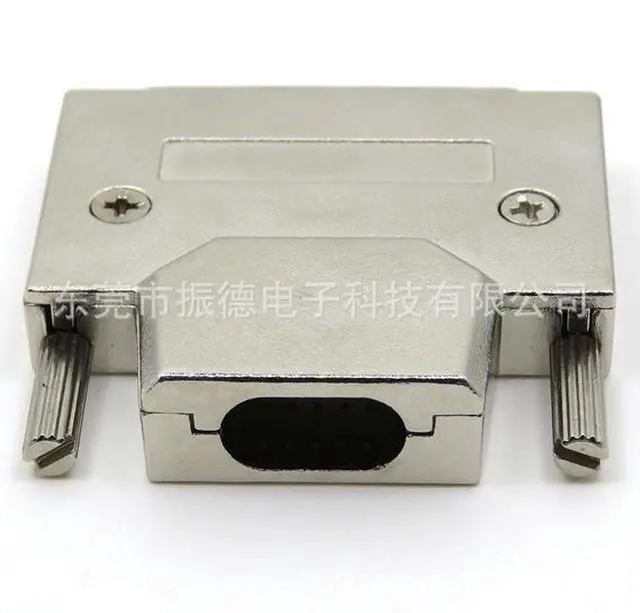

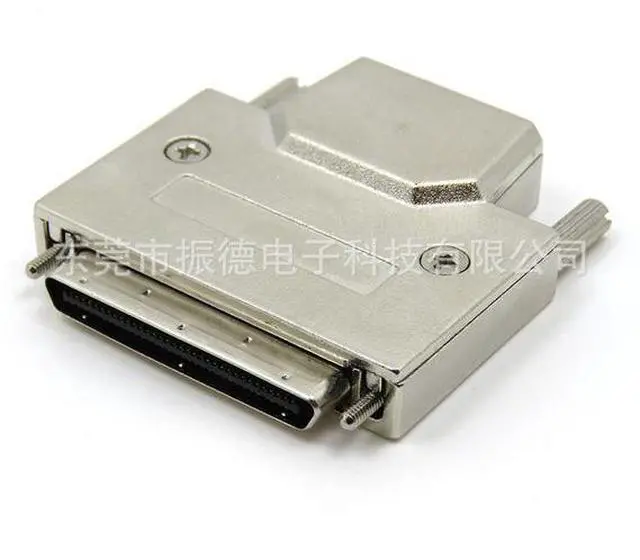

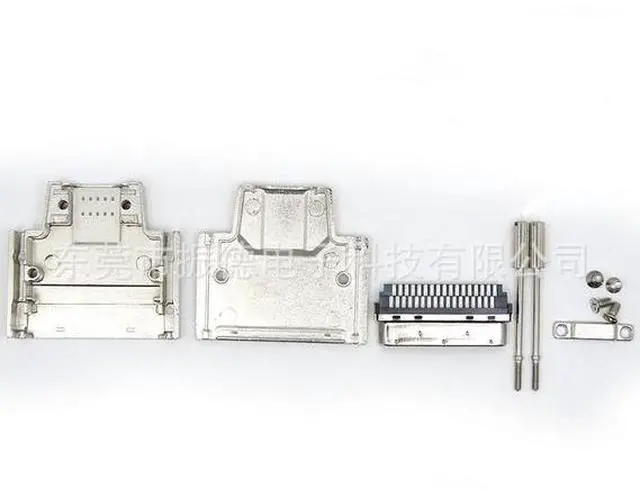

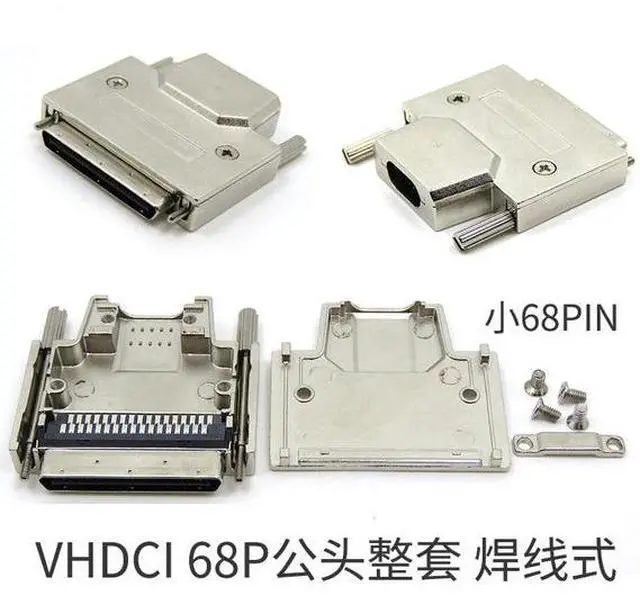

Main image of VHDCI68P male head small 68 main body upper and lower shell with screw wire type complete set connector

Alt view image 2 of 4 - VHDCI68P male head small 68 main body upper and lower shell with screw wire type complete set connector

Alt view image 3 of 4 - VHDCI68P male head small 68 main body upper and lower shell with screw wire type complete set connector

Alt view image 4 of 4 - VHDCI68P male head small 68 main body upper and lower shell with screw wire type complete set connector

Shop All Enfain Products | Visit EnYZME Store

VHDCI68P male head small 68 main body upper and lower shell with screw wire type complete set connector

Be the first to review this product...

Feature:
Smaller size for a new generation of devices.
Available for cable end.
Insert molded insulator for superior reliability.
Available contacts with 68 positions.
Recognized UL under the component program of Underwriters Laboratories Inc. File No. E112081.
Electrical:
Current Rating: 0.3 Amp
Dielectric Withstanding Voltage: AC 250V min. (for 1 minute)
Insulation Resistance: 500M ohms min. (at 500V DC)
Contact Resistance: 50m ohms max. mated
Operating Temperature: -25oC ~ +85oC
Mechanical:
Insulator Material: PBT and glass fiber reinforced (UL 94V-0).
Contact Material: Phosphor Bronze.
Contact Finish: Gold over Nickel.
Shell Material: SPCC
Shell Finish: Nickel Plated.
Hood Material: Zinc Alloy
Hood Finish: Nickel Plated
Durability: 500 times.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Feature:

Smaller size for a new generation of devices.
Available for cable end.
Insert molded insulator for superior reliability.
Available contacts with 68 positions.
Recognized UL under the component program of Underwriters Laboratories Inc. File No. E112081.

Electrical:

Current Rating: 0.3 Amp
Dielectric Withstanding Voltage: AC 250V min. (for 1 minute)
Insulation Resistance: 500M ohms min. (at 500V DC)
Contact Resistance: 50m ohms max. mated
Operating Temperature: -25oC ~ +85oC

Mechanical:

Insulator Material: PBT and glass fiber reinforced (UL 94V-0).
Contact Material: Phosphor Bronze.
Contact Finish: Gold over Nickel.
Shell Material: SPCC
Shell Finish: Nickel Plated.
Hood Material: Zinc Alloy
Hood Finish: Nickel Plated
Durability: 500 times.
