    HDMI 5.1 Audio Converter Decoder DAC DTS AC3 FLAC PCUSB APE 4K*2K HDMI to HDMI Extractor Converter Splitter Digital SPDIF ARC, Digital Analog Audio Video Surround Sound System 192Khz/24Bit for Movies

    Be the first to review this product...
    • 1: Support one HDMI input,one Coaxial input,one Optical input,one PC-USB input,one AUX input,one USB 2.0 input. You can switch different signal sources randomy via Button or Remote.
    • 2: Support one HDMI(ARC) output, one Optical output,one Coxial output,one 5.1ch analog audio output of RCA , all audio output simultaneously.
    • 3: All signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB/USB) can decode to 5.1ch output,it is audio decoder system.
    • 4:All signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB) but USB player can convert to COXIAL/OPTICAL output,it is S/PDIF Switcher system.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    9: Supporting IR adjust VOLOME


    10: The power-off memory function, automatically switch to the last used signal channel, USB broadcast memory before the power-off.


    11: Users can upgrade firmware when manufacturers have updated.


    Specification:

    Item Type: HD Multimedia Interface Sound Decoder

    Model: UD851B

    Material: Metal

    HD Multimedia Interface Support Version: HD Multimedia Interface 2.0 b, HDCP 2.3

    HD Multimedia Interface Resolution Support: 4Kx2K 1080p 1080i 720p 576p 576i 480p 480i At 24 50 60fs

    HD Multimedia Interface Maximum Data Rate: 6Gbps

    HD Multimedia Interface Input And Output TDMS Signal: 0.5 - 1.5V olts P-P (TTL)

    HD Multimedia Interface Input And Output DDC Signal: 5Volts P-P (TTL)

    Support Sound Formats: DTS, DTS ES, AC3, FLAC, APE, WAV, HDCD, AAC, WMV, MP3, M4A, Etc.

    DSP Sampling Rate Sampling Frequency: 24bit 192KHz

    Digital Input Level: 0.1 -1V P-P

    5.1 Analog Output: 2V RMS (1KHz At 0dB)

    Signal To Noise Ratio: 90dB

    Distortion: 0.03 %

    Frequency Response: 20Hz to 20KHz

    Reception Distance: 15m/ 49.2 ft

    Power Adapter Specification: AC 100-240V 50/60Hz, DC 12V 1A

    Remote Control Battery: 2 x AAA Batteries (Not Included)

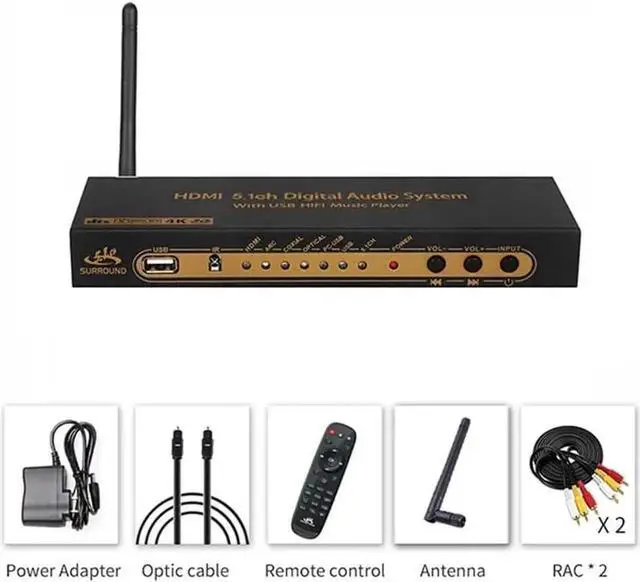

    Package included:

    1: Decoder machine x1

    2: Infrared remote controller x1

    3: DC-12V/1A power adapter x1

    4: Digital optical fiber cable x1

    5: Bluetooth Antenna x1

    6: User manual x1
