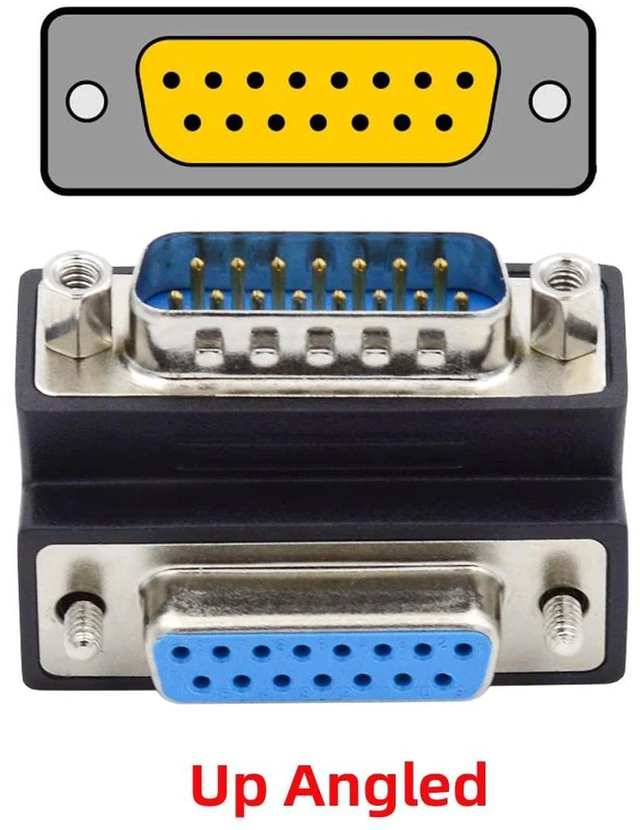

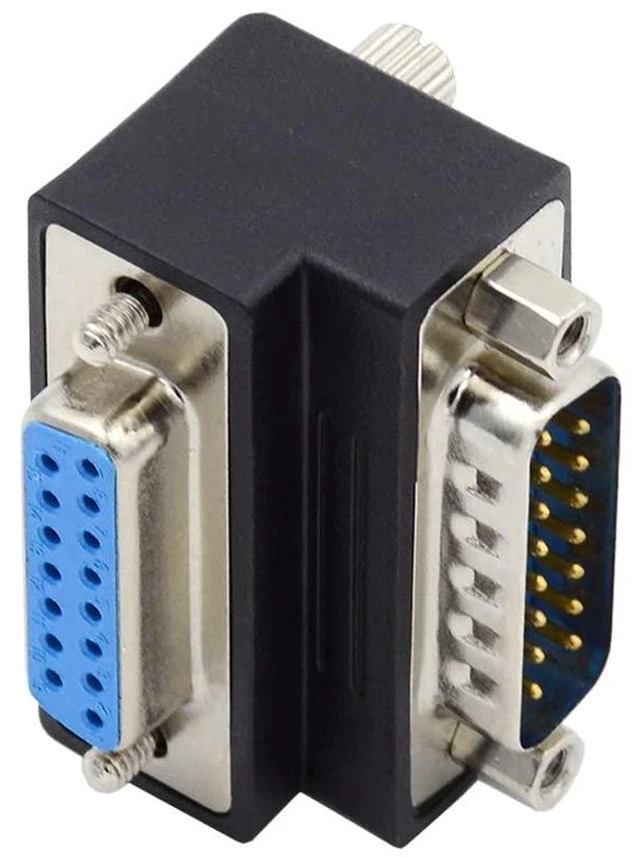

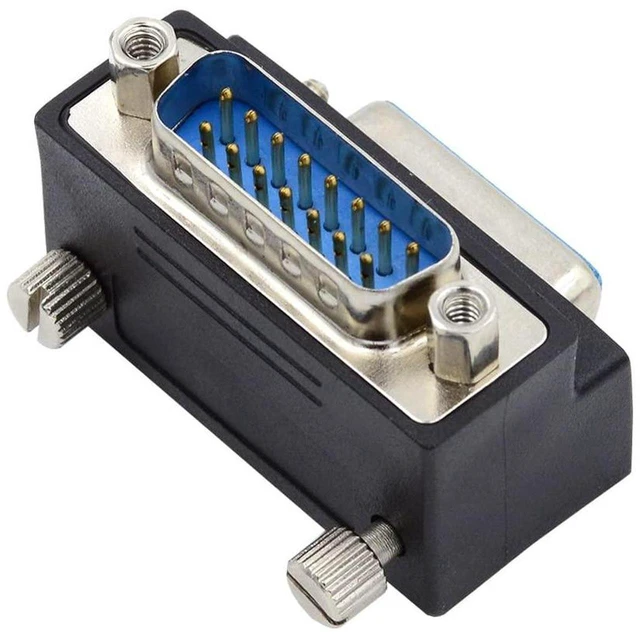

AJMRTC 90 Degree Up Angled DB15 DSUB 15Pin Male to Female Extension Adapter, Upward Exit D-Sub RS232 Serial Straight-Through Corner Connector with Locking Nuts

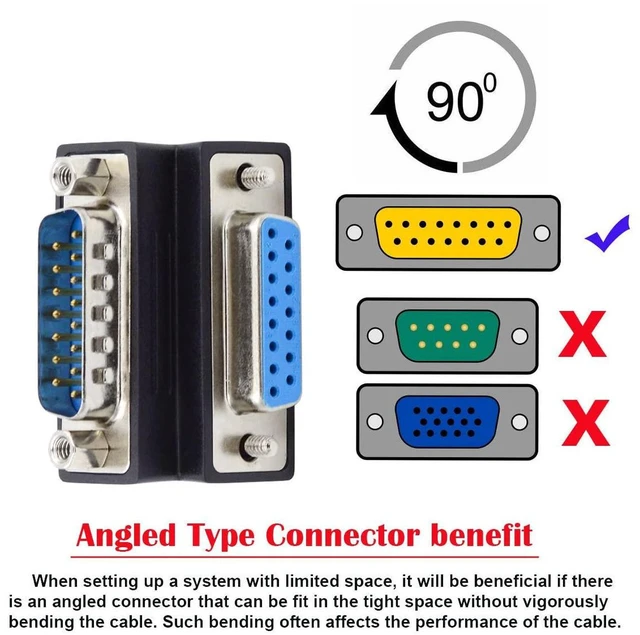

- - 90-degree upward angled design, changes cable exit upwards to save compact cabinet internal space

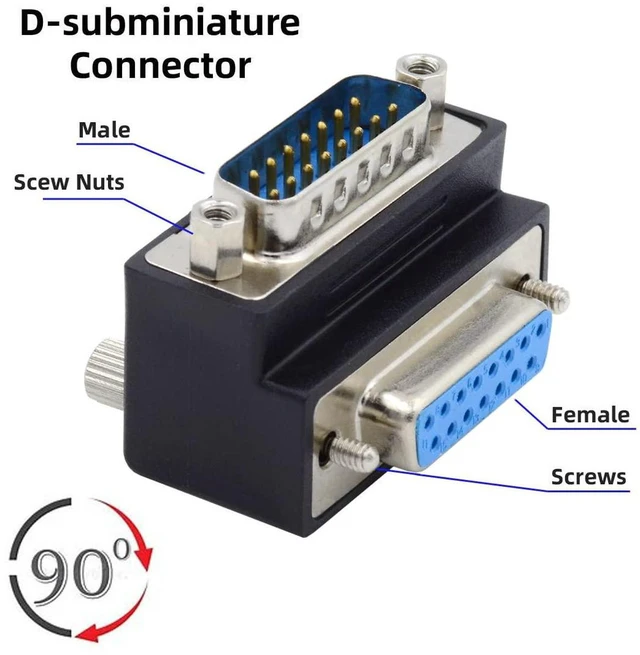

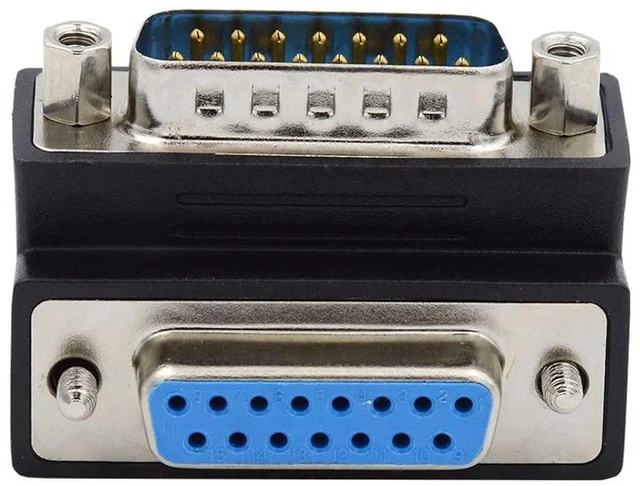

- - Standard 2-row DB15 15Pin male to female, full straight-through one-to-one pin connection
- - Gold-plated phosphor bronze contacts, anti-oxidation and low signal loss for stable serial transmission
- - Built-in locking nuts for secure fastening, prevents loose connection caused by equipment vibration
- - Passive straight-through adapter, plug and play without drivers, supports RS232 RS485 IO signals
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC upward 90° DB15 D-Sub adapter is a 2-row 15-pin serial extension connector. The upward cable outlet avoids sharp cable bends in narrow equipment housings, protecting wires and ports from stress damage. All 15 pins are fully conducted without pin redefinition, keeping original signal definition unchanged for RS232, RS485 and industrial IO control signals. Gold-plated contacts maintain reliable connection after frequent plugging. Locking nuts firmly lock the adapter to resist vibration and intermittent disconnection. It is a passive adapter requiring no driver or external power. Not compatible with 3-row HDB15 VGA ports. It is widely used for servo drives, PLC, industrial control cabinets, serial debugging and equipment wiring modification.
Specifications:
- Brand: AJMRTC
- Connector: 2-Row DB15 DSUB 15Pin Male to Female
- Angle: 90 Degree Upward Angled
- Wiring Mode: Straight Through, all 15 pins connected
- Contact: Gold-plated phosphor bronze pins
- Fastening: Locking nuts
- Shell: Metal shield + plastic housing
- Max Baud Rate: 115200 bps
- Operation: Plug and Play, Driver-Free
- Important Notice: Not fit for 3-row HDB15 VGA interface
- Supported Signal: RS232, RS485, Industrial IO, Analog control signal
- Application: Industrial automation, Servo, PLC, Serial debugging, cabinet wiring upgrade
- Feature: EMI shielding, upward cable routing, space-saving, vibration resistant
