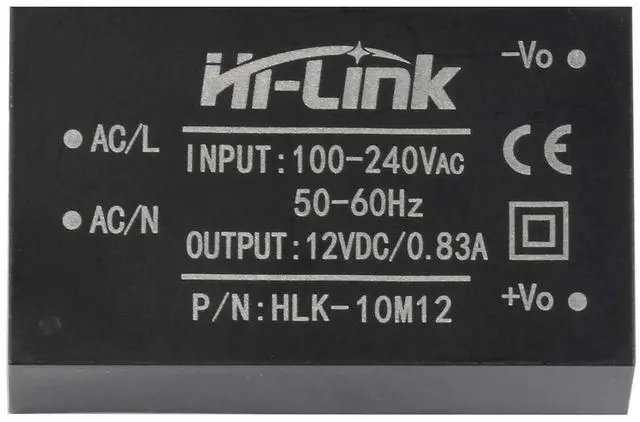

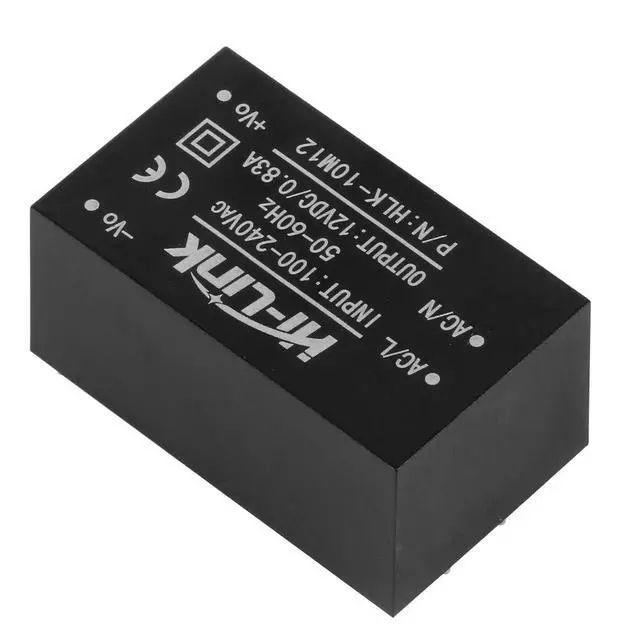

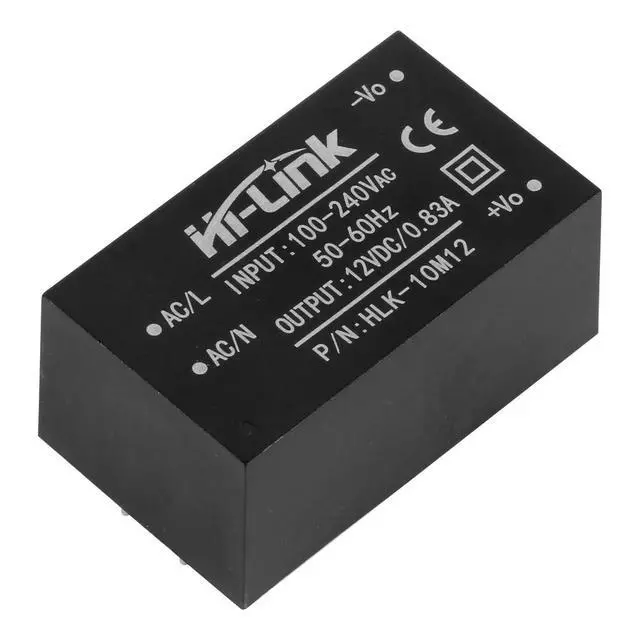

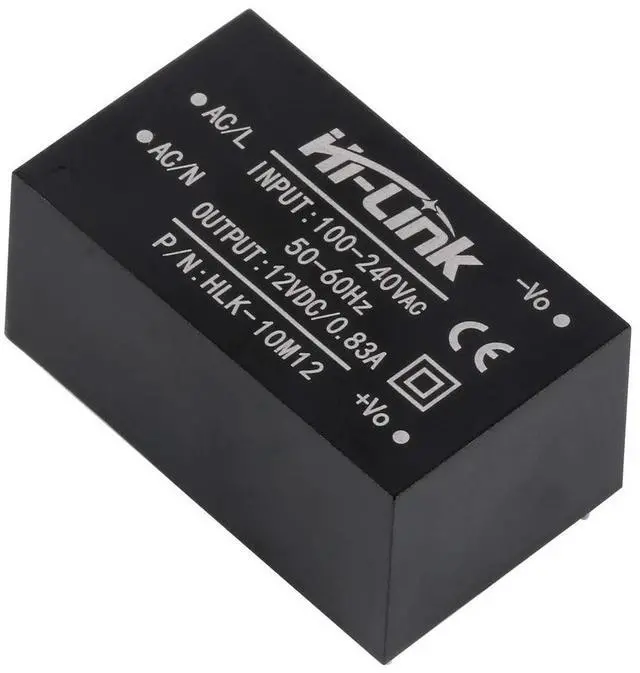

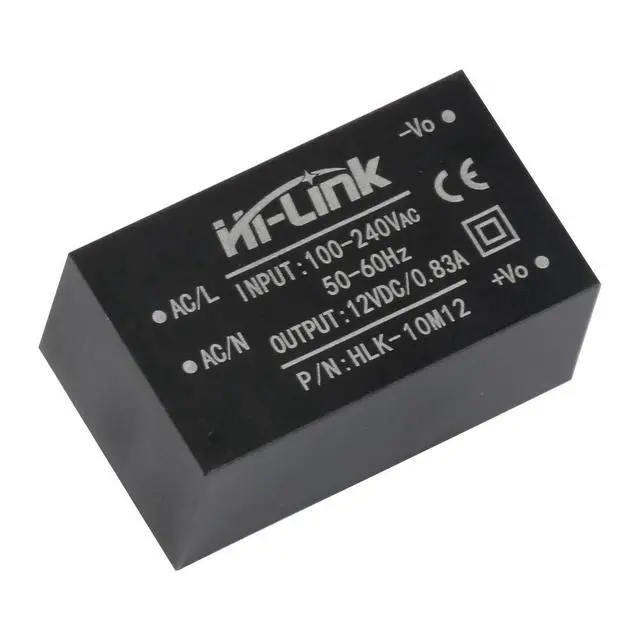

HLK-10M12 AC-DC 220V to 12V 10W Intelligent Household Switch Isolated Power Supply Module(2 PCS) (10M12 220V to 12V)

Product Features: 1. ultra-thin, subminiature
2. Full voltage Input (90 ~ 245 vac)
3. Low ripple and low noise
4. Output Overload protection against short circuit Functions
5. High efficiency and power density
6. Product design to meet the cem and safety tests Requirements Environmental conditions
Technical indicators: single bit
Operating temperature: -20-60 + degree
Storage temperature: + 80-40 degrees
Relative Humidity: 5-95%
Cooling way: natural cooling
Atmospheric pressure: 80-106Kpa
Altitude: 2000 M or less
Vibration: Vibration Coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
Security features: Product design to meet the requirements of UL, CE safety certification. Electromagnetic compatibility and safety The input design uses UL 0.5A insurance; PCB board made of double-sided copper clad panels is 94-where V0 fire resistance level; Safety standards in accordance with UL1012 EN60950, UL60950 Insulation voltage i / p-o /
P: 2500 vac Insulation resistance I / p-o / P> 100 m Ohms / 500 VDC 25 degrees 70% hr Conduction and radiation in line with en55011, EN55022 (CISPR22) Electrostatic discharge IEC / EN 61000-4-2 level 4 8 kv / 15 kv Radio frequency immunity IEC / EN 61000-4-3 is in the application
Design temperature safety: At normal temperature on our power capacitor, the main converter as well as the surface temperature does not exceed 90 degrees; The max temperature of the hull surface does not exceed 60 degrees.
