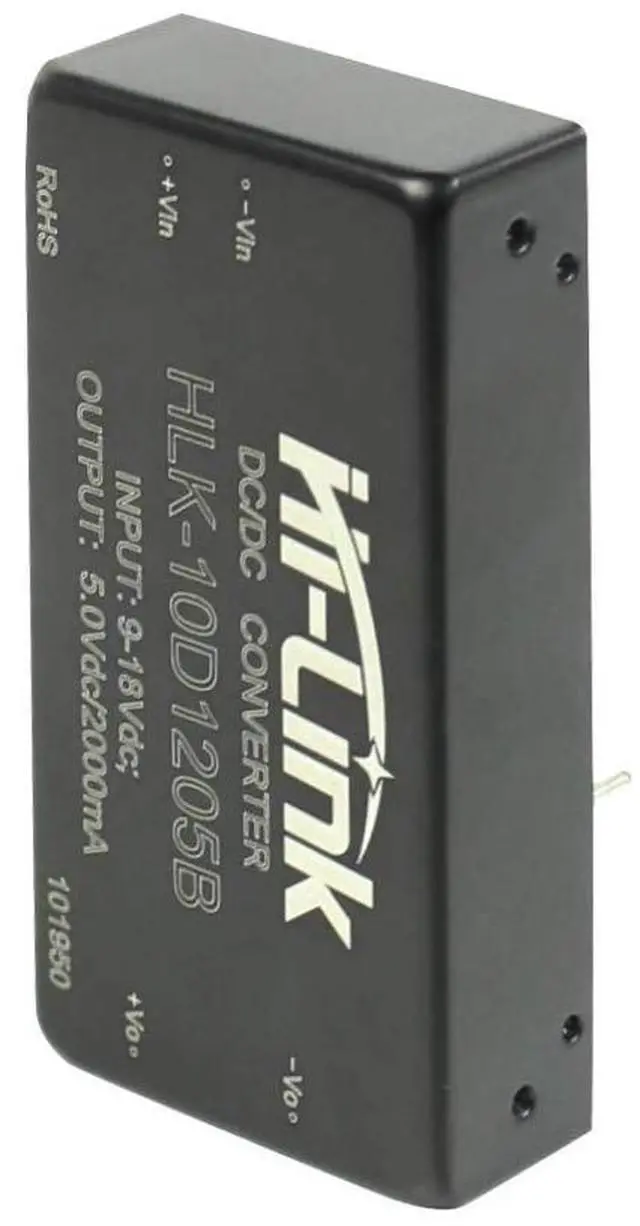

DC DC Converter HLK-10D1205B 12V to 5V 10W 2000mA Transfer 86% Typ 100ms Start Isolated Power Module Replace HDD10-24S05B1
- Ultra wide range input (2: 1), output 10W; Ultra-low standby power: 0.3W(Typical value); Output short circuit protection, over current protection; Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65; Widely used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Product
Name: 10W dc to dc power module
Material: Metal
Function: supply power
Start delay time: 100ms
Package: PP bag, foam
Rated input voltage: 12Vdc
Input voltage range: 9-18Vdc
Max input current: 1.2A or less than
Impulse voltage: 30Vdc or less than
Starting voltage: 9Vdc
Product performance: 1. Ultra wide range input ( 2: 1 ), output 10W 2. Conversion efficiency 86%? Typ? 3. Isolation voltage 1500Vdc
4.
Ultra-low standby power: 0.3W (Typical value)
5.
Super fast startup: 100mS (Typical value) 6.
range of working temperature: -40¡ãC? +85 degree
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 11. High reliability, long life design, long continuous working time 12.
Size: 50.8 * 25.4 *11mm
Name: 10W dc to dc power module
Material: Metal
Function: supply power
Start delay time: 100ms
Package: PP bag, foam
Rated input voltage: 12Vdc
Input voltage range: 9-18Vdc
Max input current: 1.2A or less than
Impulse voltage: 30Vdc or less than
Starting voltage: 9Vdc
Product performance: 1. Ultra wide range input ( 2: 1 ), output 10W 2. Conversion efficiency 86%? Typ? 3. Isolation voltage 1500Vdc
4.
Ultra-low standby power: 0.3W (Typical value)
5.
Super fast startup: 100mS (Typical value) 6.
range of working temperature: -40¡ãC? +85 degree
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 11. High reliability, long life design, long continuous working time 12.
Size: 50.8 * 25.4 *11mm
