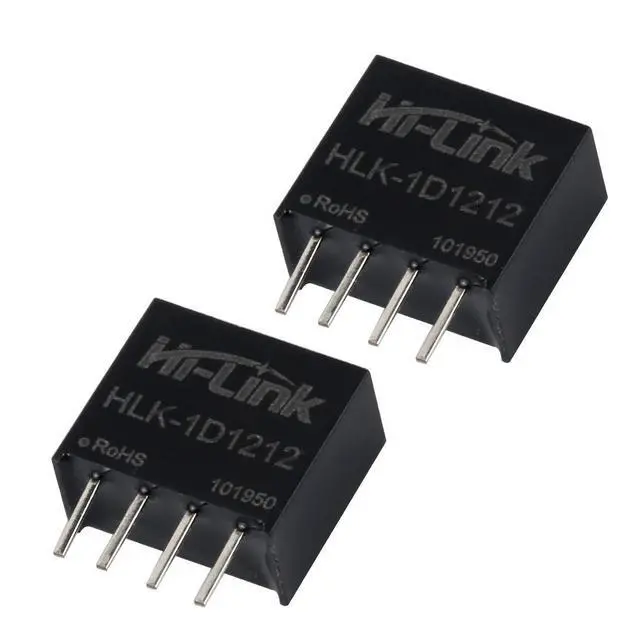

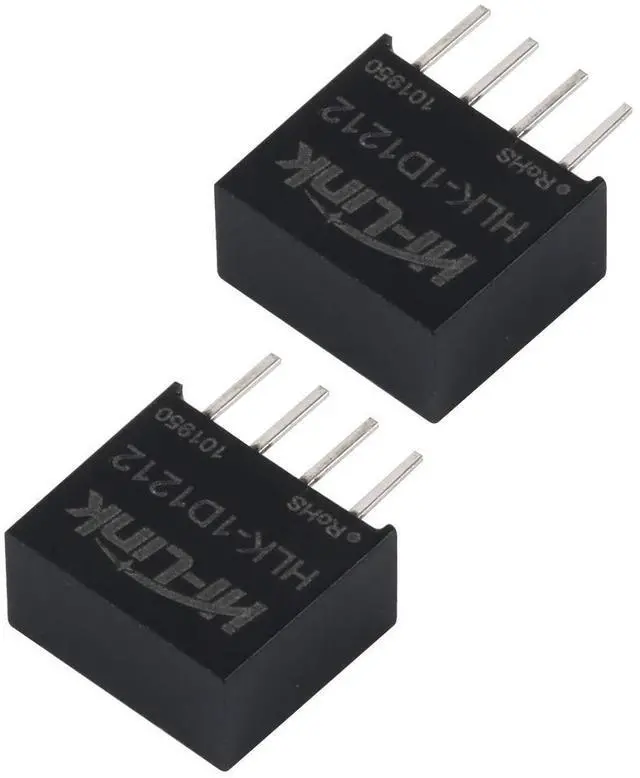

HLK-1D1212 12V to 12V 1W 84mA DC - DC Isolation Switching Power Supply Module Intelligent Household Switch Converter (6 PCS)
Limited time offer, ends 07/26 By EmpressTech
- 1W DC / DC series products provide small size, high efficiency, tiny power, constant voltage, input isolation and unregulated, single output module power supply; this series of products is specially designed to generate a group of input power isolation in the on-board power system Designed for voltage applications.; This product is suitable for: purely digital circuits, general low-frequency analog circuits, relay drive circuits, data exchange circuits, etc.; Constant voltage input, isolated unregulated single output, 1W; Isolation between input and output is required (isolation voltage ?1500VDC); Adopting high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product performance
1.
Features: constant voltage input, isolated unregulated single output, 1W
2. Conversion efficiency 80% (Typ)
3. Isolation between input and output is required (isolation voltage 1500VDC or less )
4. Output short circuit protection
5. The voltage of the input power supply is relatively stable (voltage change range ± 10% Vin)
6.
Operating temperature range: -40 ~ + 85 Degree
7. Low requirements for output voltage stability
8. Small SIP package
9. International standard pins, PCB board in-line installation
10. High reliability, long life design, long continuous working time MTBF? 3.5 million hours (3500000Hrs) Environmental conditions
Working environment temperature: -40- + 85 Degree
Storage temperature: -40- + 80
Degree Relative humidity: 5-95% Cooling method Natural cooling
Atmospheric pressure: 80-106
Kpa Vibration coefficient: 10 ~ 500Hz, 2G10min. /1cycle, 60min. each along X, Y, Z axe (Meet the requirements of secondary road transportation) Product application considerations 1.
Input requirements: Ensure that the output voltage fluctuation range of the power supply does not exceed the input requirements of the DC / DC module itself, and the output power of the input power must be greater than the output power of the DC / DC module
2.
Overload protection: Under normal operating conditions, the output circuit of this product has no protection function against overload conditions. The easiest way is to connect a resettable fuse in series at the input, or add a circuit breaker to the circuit;
3. The external capacitor of the output terminal should not be too large, otherwise it will easily cause overcurrent or poor startup when the module starts.
1.
Features: constant voltage input, isolated unregulated single output, 1W
2. Conversion efficiency 80% (Typ)
3. Isolation between input and output is required (isolation voltage 1500VDC or less )
4. Output short circuit protection
5. The voltage of the input power supply is relatively stable (voltage change range ± 10% Vin)
6.
Operating temperature range: -40 ~ + 85 Degree
7. Low requirements for output voltage stability
8. Small SIP package
9. International standard pins, PCB board in-line installation
10. High reliability, long life design, long continuous working time MTBF? 3.5 million hours (3500000Hrs) Environmental conditions
Working environment temperature: -40- + 85 Degree
Storage temperature: -40- + 80
Degree Relative humidity: 5-95% Cooling method Natural cooling
Atmospheric pressure: 80-106
Kpa Vibration coefficient: 10 ~ 500Hz, 2G10min. /1cycle, 60min. each along X, Y, Z axe (Meet the requirements of secondary road transportation) Product application considerations 1.
Input requirements: Ensure that the output voltage fluctuation range of the power supply does not exceed the input requirements of the DC / DC module itself, and the output power of the input power must be greater than the output power of the DC / DC module
2.
Overload protection: Under normal operating conditions, the output circuit of this product has no protection function against overload conditions. The easiest way is to connect a resettable fuse in series at the input, or add a circuit breaker to the circuit;
3. The external capacitor of the output terminal should not be too large, otherwise it will easily cause overcurrent or poor startup when the module starts.
