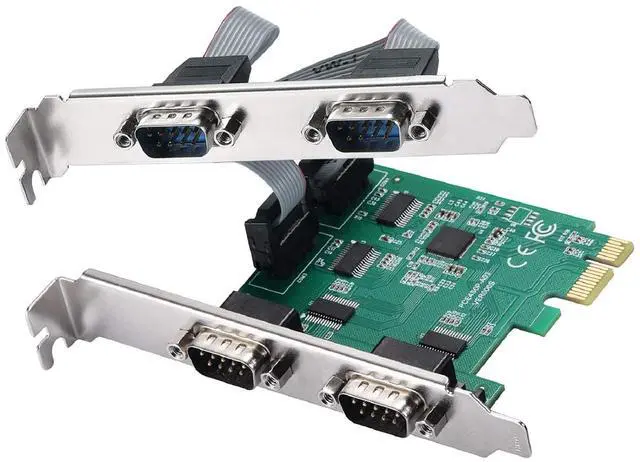

PCI-Express PCIe Expansion Card - 1X Serial COM interfaces - COM Port RS232 Interface - Adapter Converter Card, RS-232 Module with 4 Connections, 18-pin
- The adapter has four independent 18-pin standard serial ports, such as the integrated serial interface, which makes the connection more stable.; The adapter is a PCI-E 4-port RS232 serial port card, it has four ports so you can connect more HDMI cables as possible.; Data transfer rates of up to 250 Kbit / s on each port, compatible with 16C550 UART, 256 byte on-chip FIFO depth when sending.; Good performance - the adapter is well made, providing stable and effective data loss control. And it supports hot swap.; Perfect solution for connecting to POS systems, industrial test and control devices, security systems, logistics management systems, printers, scanners, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

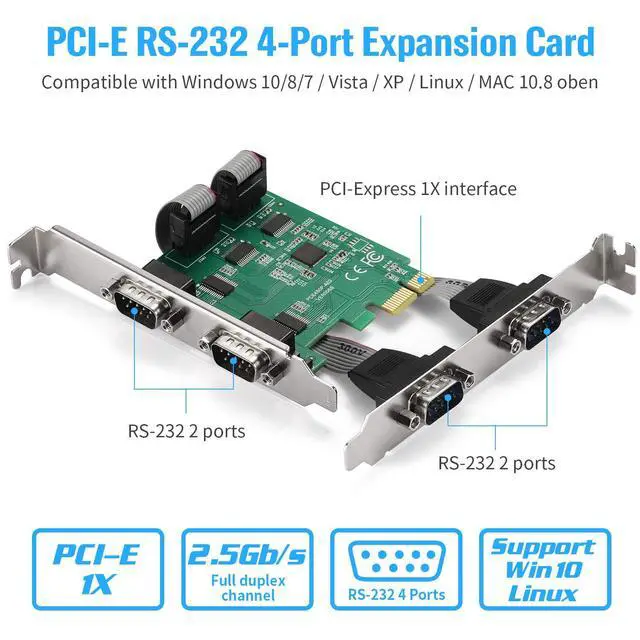

Four serial ports are expanded by PCI Express. The products are designed for POS and ATM applications and also the first choice for integrators of industrial automation systems. Supports various common operating systems, including Windows and Linux. The 4 RS-232 serial ports support a communication rate of up to 250 Kbps and deliver modem control signals to ensure compatibility with various serial peripherals. You use the PCI Express x1 bus slot, which can be installed in various PCI Express slots (including) 4x, 8x, 16x). PCI-Express 1X interface, in line with PCI Express 1.0 a standard.
Supports PCI-E 4X / 8X / 16X slot. PCI-Express 2.5 Gb/s full duplex channel. Provide 4-port RS-232 9-pin module.
Tolerant standard: 16c550 UART standard and 256-byte transmit and receive FIFO 256k
Data transmission: up to 115.2 Kbps.
Transmission mode: support RS-232 hardware flow control, full duplex
Data bit: 5/6/7/8
Parity: none/even/odd/space/mark.
Stop bit: 1/2. Support Windows / Linux system.
Transmission interface: PCI-E 1X interface, compatible with PCI-E 3.0 / 2.0 / 1.0 specifications, suitable for PCI-E 4X 8X 16X
Number of ports: RS-232 4 ports.
Support system: Windows 10 / 8.1 / 8/7 / Vista / XP / 2000/2003 (32/64 bit) / DOS Linux kernel 2.6. x
Supports PCI-E 4X / 8X / 16X slot. PCI-Express 2.5 Gb/s full duplex channel. Provide 4-port RS-232 9-pin module.
Tolerant standard: 16c550 UART standard and 256-byte transmit and receive FIFO 256k
Data transmission: up to 115.2 Kbps.
Transmission mode: support RS-232 hardware flow control, full duplex
Data bit: 5/6/7/8
Parity: none/even/odd/space/mark.
Stop bit: 1/2. Support Windows / Linux system.
Transmission interface: PCI-E 1X interface, compatible with PCI-E 3.0 / 2.0 / 1.0 specifications, suitable for PCI-E 4X 8X 16X
Number of ports: RS-232 4 ports.
Support system: Windows 10 / 8.1 / 8/7 / Vista / XP / 2000/2003 (32/64 bit) / DOS Linux kernel 2.6. x
