10-Port SATA III PCIe Expansion Card - ASM1166 Chipset (6Gbps per Port) - PCIe x1 to 10x SATA 3.0 Adapter - Supports Hot Swap - Plug & Play -for Desktop PC, NAS, Server (No Driver Required)

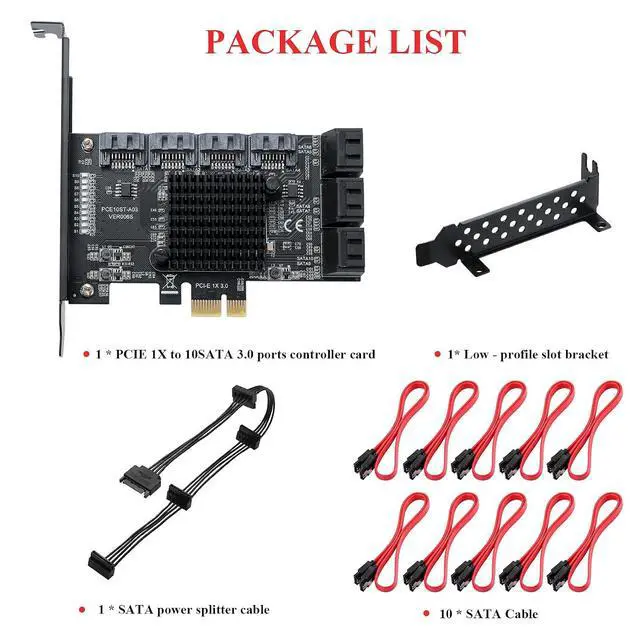

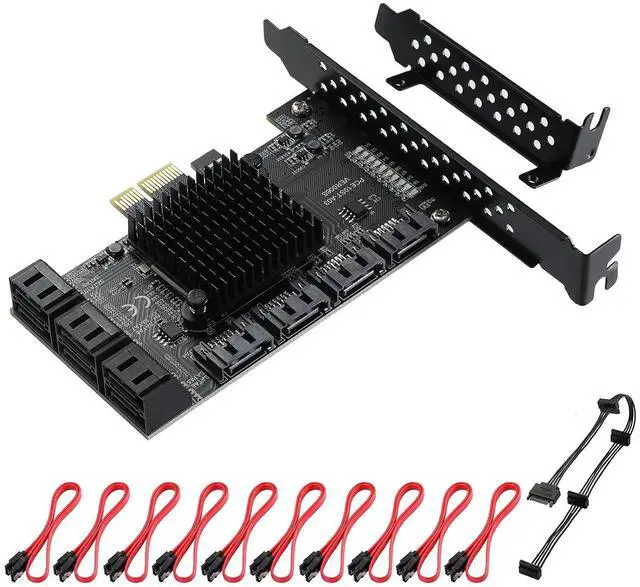

- With this PCI-E 3.0 1X SATA card, you can add 10 SATA 3.0 6 Gbps devices to your computer.Provide 1X SATA 6Gbps ports for PCs and Servers.; The PCI-E SATA card contains 10 SATA cables,15pin SATA Power Splitter Cable and Low Profile Bracket to simplify the connection.; Use the 1X ASMedia ASM1166+JMB575 chip PCIE 3.0 Serial controller to effectively improve card stability and compatibility. Support SATA III speed 6Gbps, SATA II speed 3Gbps, SATA 1 speed 1.5Gbps.; Connect 10 mass storage devices at the same time. With Windows 8 / 10 / Ubuntu. No need to install a driver and contact the seller if need the driver.; PCIE X1 interface design, works on 6Gbps PCIE X1,X4, X8, X16 slots. Please check if PCs or Servers have at least one PCIE X1, X4, X8, X16 slot on mother board before purchase.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description MZHOU PCI Express 3.0 x1 interface to 10-port SATA 3.0 expansion card with a maximum speed of 6 Gbps.

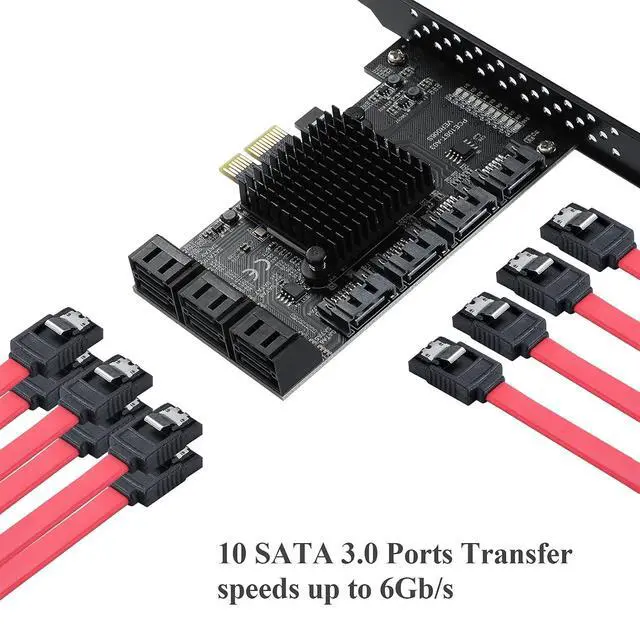

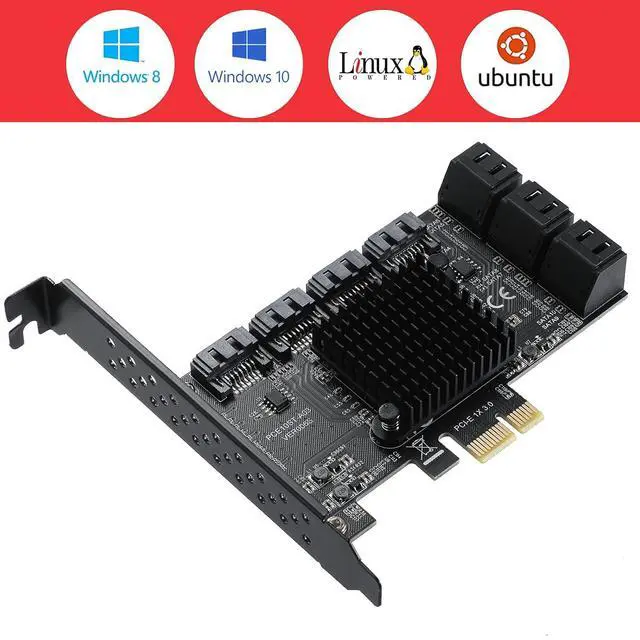

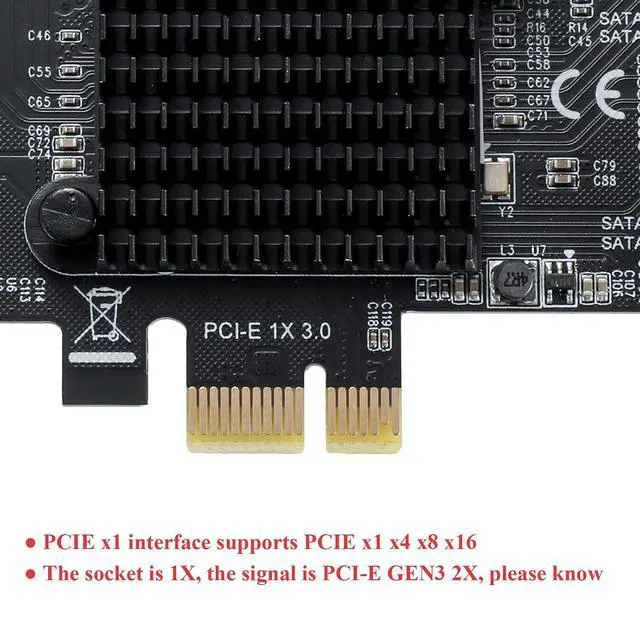

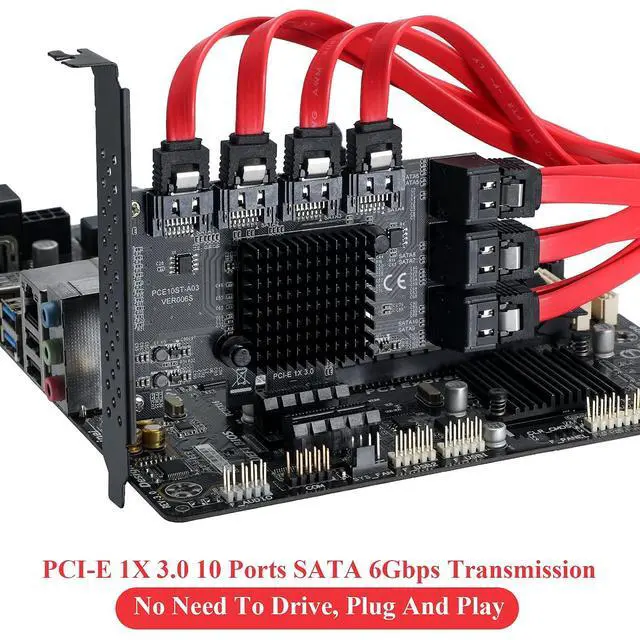

Functions: PCIe X1 to 10 SATA 3.0 Ports Controller Card provides an easy connection between a host computer and SATA 3.0 devices (SATA hard drive or SATA device), enabling 10 SATA devices at speeds of up to 6Gbps. Compatible with PCI-E X1/4X/8X/16X slots, supports plug and play on almost all currently active systems. Compatible with the Serial ATA 3.0 specification, backward compatible with Serial ATA 2.0, Serial ATA 1.0. Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps. Supports port multiplier FIS-based and command-based switching. Compatible with Windows 7/8 (32/64 bit)/10/NAS/LINUX. Integrated Advanced Heatsink The heatsink on the chipset ensures a lower operating temperature, thereby preventing reliability issues due to overheating. Enormous expansion capacity Equipped with 10 SATA 3.0 ports, compatible with the PCIe 2.0 standard, it supports connections for 10 SATA hard drives with a data transfer rate of up to 6 Gbit/s. PCI-E Connecter The PCIe x1 interface supports PCIe x1 x4 x8 x16. The slot is 1X, the signal is PCI-E GEN3 2X, please note this. Scratch-resistant and wear-resistant, with more stable contact points for stable data transmission.

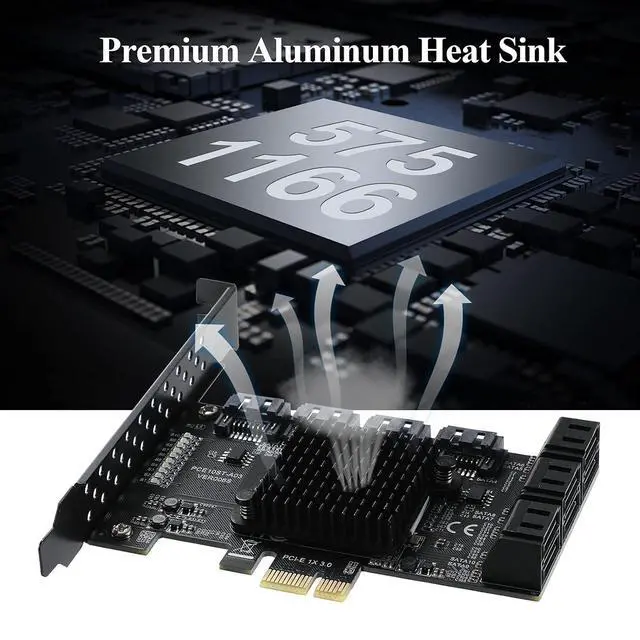

Built-in ASM1166 JMB575 chipset. SATA 3.0 - Max. 6Gbps provides strong performance and great compatibility Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps. The maximum speed in a PCI-E 3.0 slot is 500-550 MB/s. The maximum speed in a PCI-E 2.0 slot is 380-450 MB/s. When connected to a PCI-E 1.0 slot, the speed is only 200-300 MB/s. (Check with your motherboard manufacturer for supported PCI-E versions).
Functions: PCIe X1 to 10 SATA 3.0 Ports Controller Card provides an easy connection between a host computer and SATA 3.0 devices (SATA hard drive or SATA device), enabling 10 SATA devices at speeds of up to 6Gbps. Compatible with PCI-E X1/4X/8X/16X slots, supports plug and play on almost all currently active systems. Compatible with the Serial ATA 3.0 specification, backward compatible with Serial ATA 2.0, Serial ATA 1.0. Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps. Supports port multiplier FIS-based and command-based switching. Compatible with Windows 7/8 (32/64 bit)/10/NAS/LINUX. Integrated Advanced Heatsink The heatsink on the chipset ensures a lower operating temperature, thereby preventing reliability issues due to overheating. Enormous expansion capacity Equipped with 10 SATA 3.0 ports, compatible with the PCIe 2.0 standard, it supports connections for 10 SATA hard drives with a data transfer rate of up to 6 Gbit/s. PCI-E Connecter The PCIe x1 interface supports PCIe x1 x4 x8 x16. The slot is 1X, the signal is PCI-E GEN3 2X, please note this. Scratch-resistant and wear-resistant, with more stable contact points for stable data transmission.
Built-in ASM1166 JMB575 chipset. SATA 3.0 - Max. 6Gbps provides strong performance and great compatibility Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps. The maximum speed in a PCI-E 3.0 slot is 500-550 MB/s. The maximum speed in a PCI-E 2.0 slot is 380-450 MB/s. When connected to a PCI-E 1.0 slot, the speed is only 200-300 MB/s. (Check with your motherboard manufacturer for supported PCI-E versions).
