Pi5 PCIe to M.2 Adapter Board with Cooling Fan for Raspberry Pi 5, Pi 5 NVMe HAT with Cooling Fan, Aluminium Heatsink All-in-One Design, 8Gbps Data Rate,Support M.2 NVMe SSD 2242/2230 Size

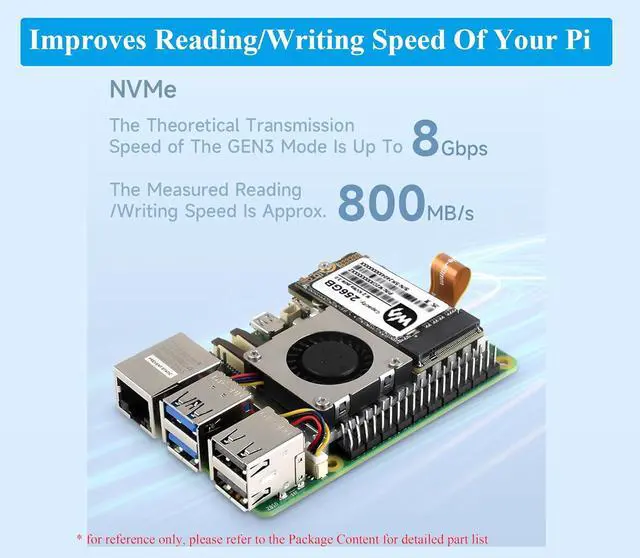

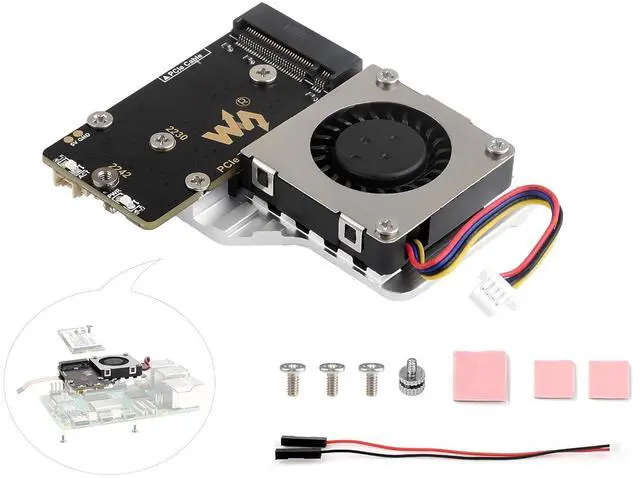

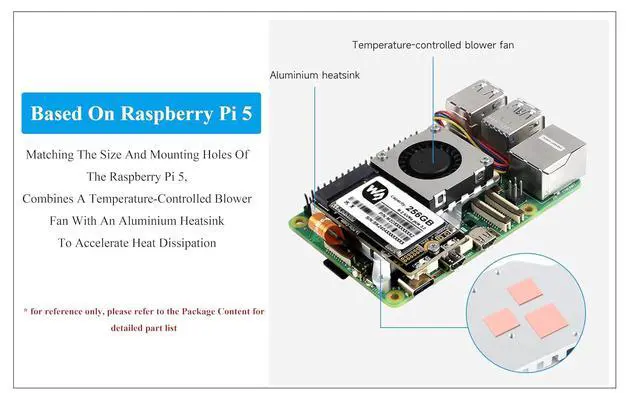

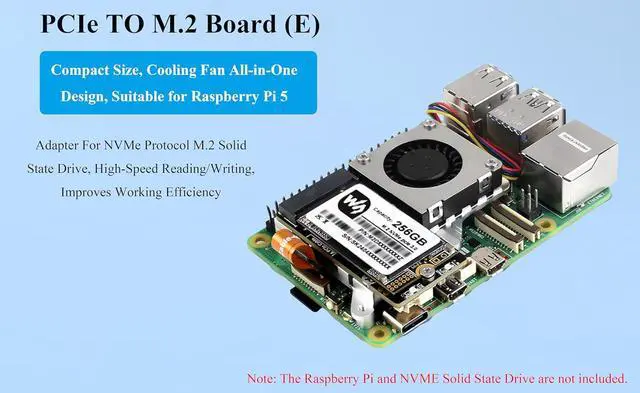

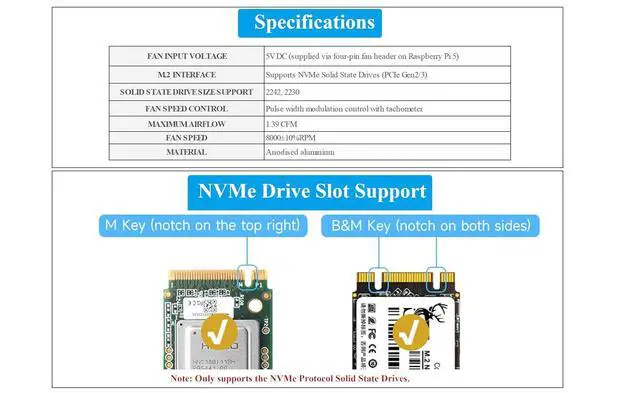

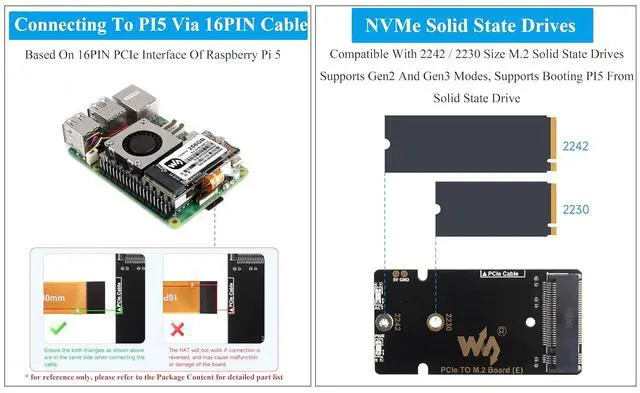

Pi5 PCIe To M.2 Adapter Board with Cooling Fan All-in-One Design: Compact Size, PCIe To M.2 Adapter Board with Cooling Fan and Aluminium Heatsink All-in-One Design for Raspberry Pi 5. Pi 5 Adapter for NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency; Based On Raspberry Pi 5: Matching the size and mounting holes of the Raspberry Pi 5, combines A Temperature-Controlled Blower Fan with an aluminium heatsink to accelerate heat dissipation; 8Gbps Data Rate: NVMe: The Theoretical transmisstion speed of the Gen3 Mode is up to 8Gbps. The measured reading/writing speed is approx. 800mb/s; NVMe Solid State Drives Support: Compatible With 2242 / 2230 Size M.2 Solid State Drives. Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive; Onboard Dual LED Indicators: Easy to monitor the Working Status
+
+
