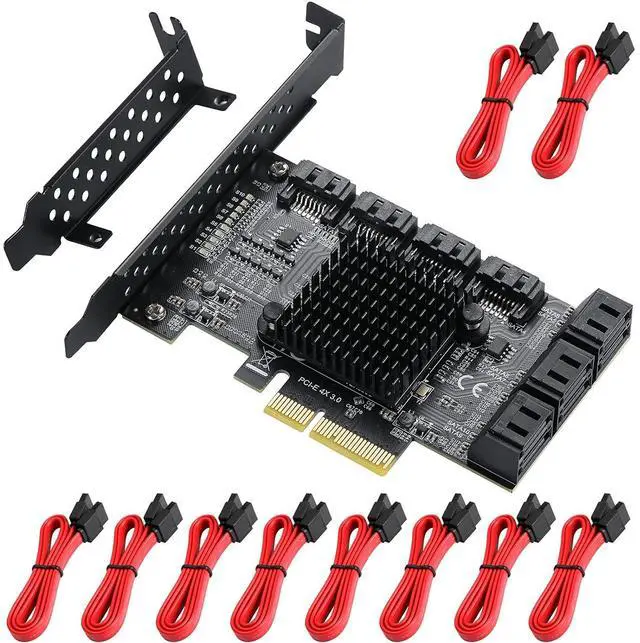

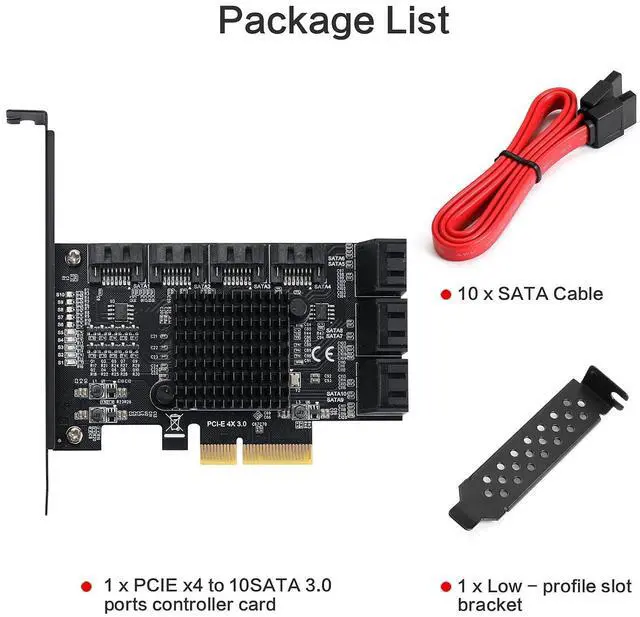

PCIe SATA Controller Card 10 Port with 10 SATA Cables and Low Profile Bracket - 6Gbps 3.0 PCIe Card,Support 10 Port 3.0 Devices

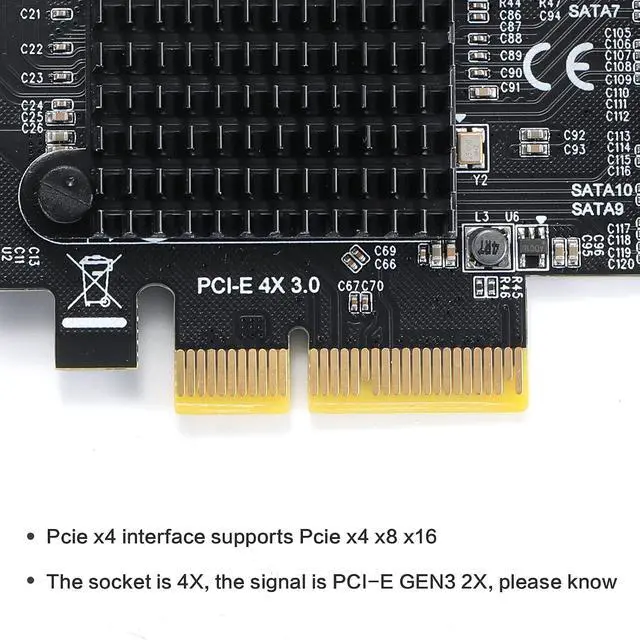

Product description PCE10ST-M01 Name PCIe to SATA 3.0 10-Port Hard Drive Expansion Card Main Controller Chip ASM1166 + JMB575 Input Interface PCI-E 4X (Compatible with 8X and 16X slots, but the signal is actually 2X. ) Output Interface SATA Ports Transfer Rate 6Gbps Supported Systems Windows 10 / 8 / 7 Ubuntu 2U Case Support, including Low-Profile Bracket SATA Control Mode AHCI PCI-E GEN3 PCI-E 3.0 Chip Architecture The maximum speed in a PCI-E 3.0 slot is 500-550 MB/s. The maximum speed in a PCI-E 2.0 slot is 380-450 MB/s. When connected to a PCI-E 1.0 slot, the speed is only 200-300 MB/s.

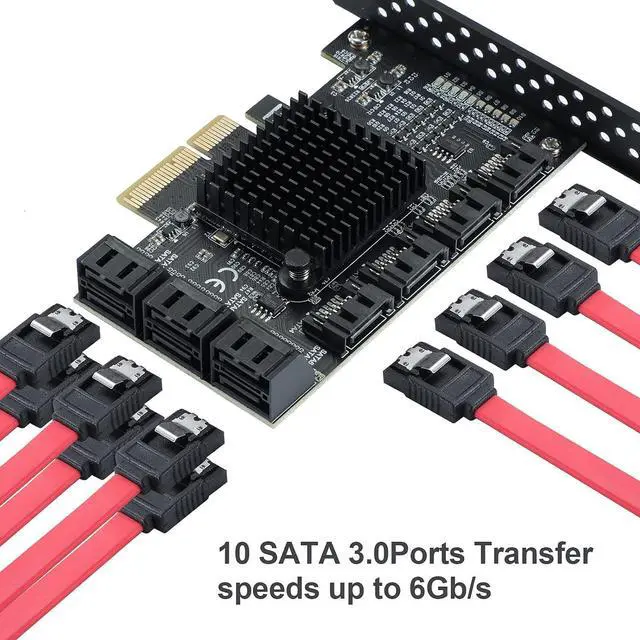

(Check with your motherboard manufacturer to see which PCI-E versions are supported). ASMedia ASM1166 + JMB575 This 10-port SATA expansion card is equipped with a combination of ASM1166 and JMB575 chip. It features PCI-E 3.0 chip architecture for faster speeds and is seamlessly compatible with SSDs/HDDs that comply with SATA I, SATA II and SATA III standards. LED Status Indicator The blue light is on when the hard drive is inserted and flashes when data is being read, allowing you to monitor the hard drive's operating status at any time. 10-Port Expansion Card The SATA 3.0 interface is fully backward compatible with SATA 2.0 (3 Gbit/s) and SATA 1.0 ( 1.5 Gbit/s) devices.

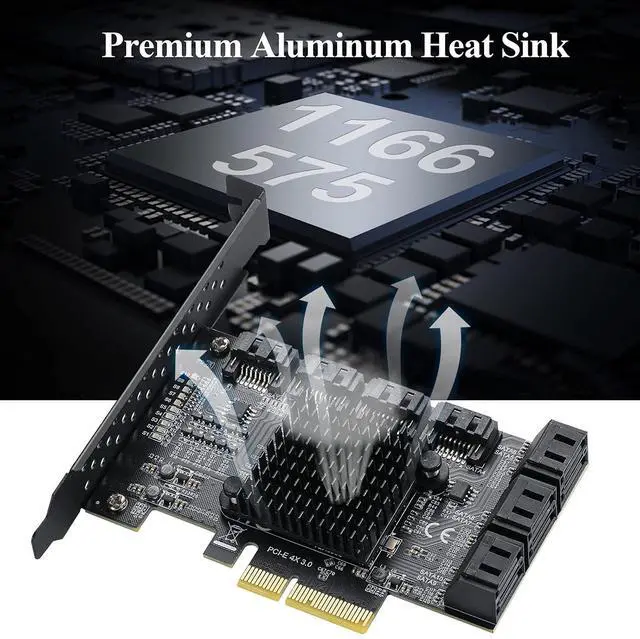

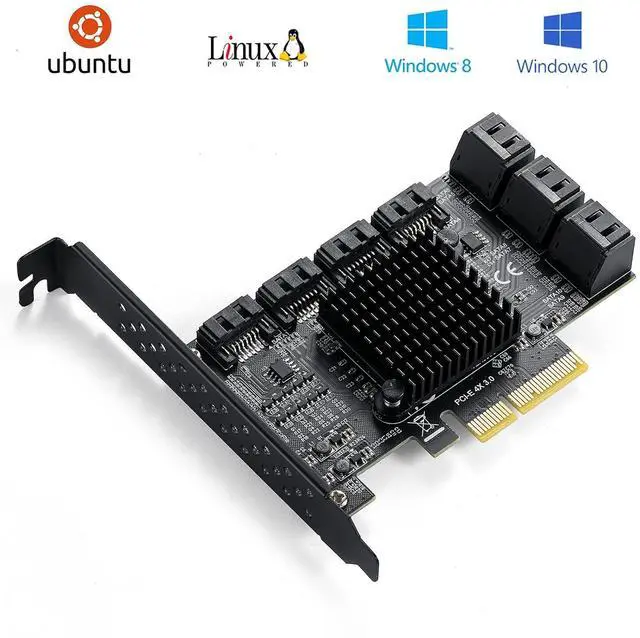

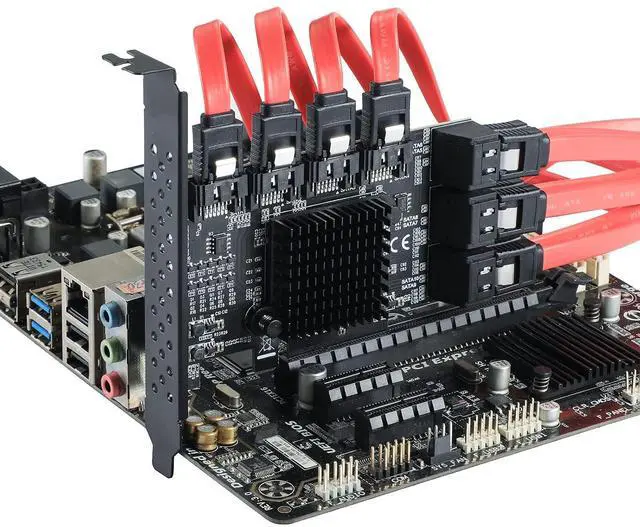

Heatsink Design The highly efficient heatsink design of the SATA expansion card ensures that the temperature remains under control during data transfer. System support and compatible slots Supports Windows/Linux/NAS/Ubuntu (Windows 7 requires driver installation) SATA controller PCI-E x4 interface compatible with 4x/8x/16 slots Please Note Synology can only recognize 4 disks, please know! The SATA 3.0 PCI-E card must be installed in the PCI-E slot of the motherboard and can not be inserted into the PCI slot. The fastest speed for PCI-E 2.0 is 380-450 m / s. When connected to PCI-E 1.0, the speed is only 200-300 m / s.

Different computer configurations and SATA SSD have different speeds. If all ports are used at the same time, the speed slows down. We recommend using this SATA 3.0 card in the PCIE 2.0 or 3.0 slot for the fastest speed. ATA port multiplier is not supported if the driver is not installed. We need to install the driver to recognize all disks. Make sure the computer is turned off before inserting or removing the card. Then insert the card to avoid damaging the motherboard or expansion card. This 10-port SATA card can be installed without a driver.

If it is unstable or has other obstacles, you can send a message to the seller to send the driver for you. If the light is on and the disk cannot be released, it is generally because the load of the power cord is too heavy. A power cord can carry up to 3 disks. See More
