U.2 SFF-8639 Host to PCI-E Ruler 1U GEN-Z EDSFF 9.5mm 15mm 25mm Short SSD E1.S with Heat Sink PM9A3 PM9D3 P5801X Carrier Adapter

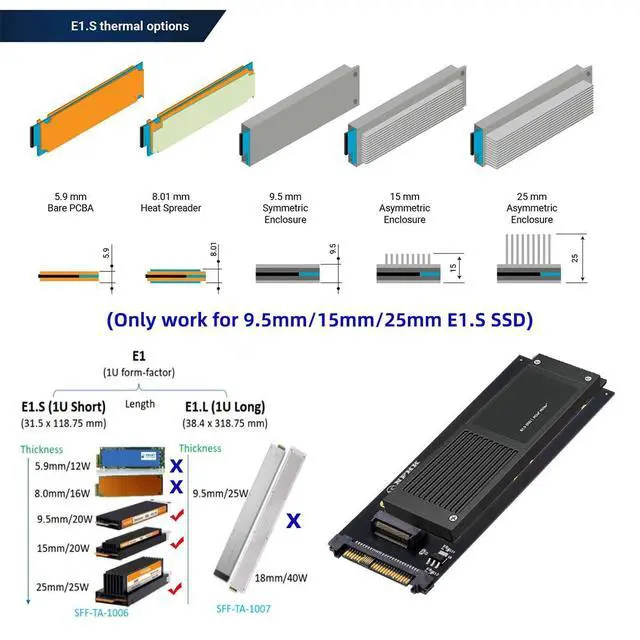

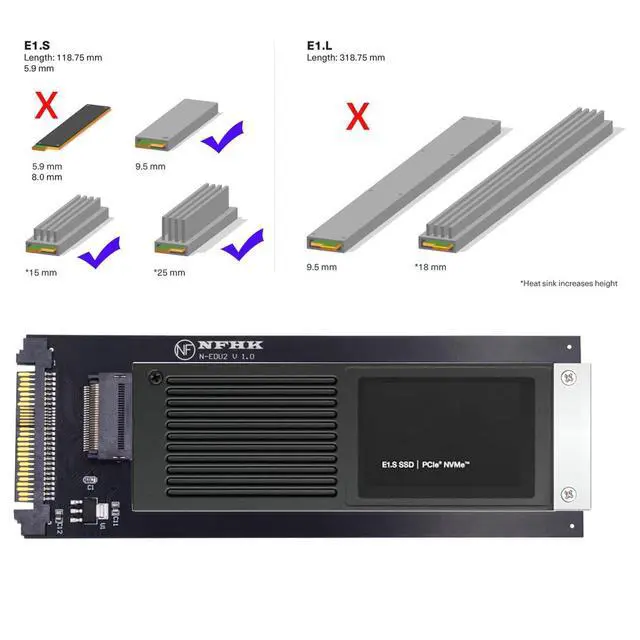

- This converter enables the connection of a GEN-Z SSD in E1.S. Fit for 9.5mm & 15mm & 25mm thickness SSD with heat sink.like PM9A3 PM9D3 P5801X); The converter can be installed into your system internally through the U.2 SFF-8639 PCI-E 4X interface.; Thus an EDSFF E1.S SSD becomes an U.2 SSD, which can be used in IoT, data center and server area; Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs.; EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management.; EDSFF is a New SSD Form Factor for Next Gen Servers and Storage; The benefits include, but arent limited to, better signal integrity and the ability to deliver more power to an SSD for superior performance.; E1 form factor delivers better thermal dissipation versus M.2 form factors; E1 SSDs utilize the robust EDSFF connector, allowing for high data rates; E1 SSDs enable higher density storage and better thermal management in 1U chassis; E1 form factor allows for higher power delivery versus M.2.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

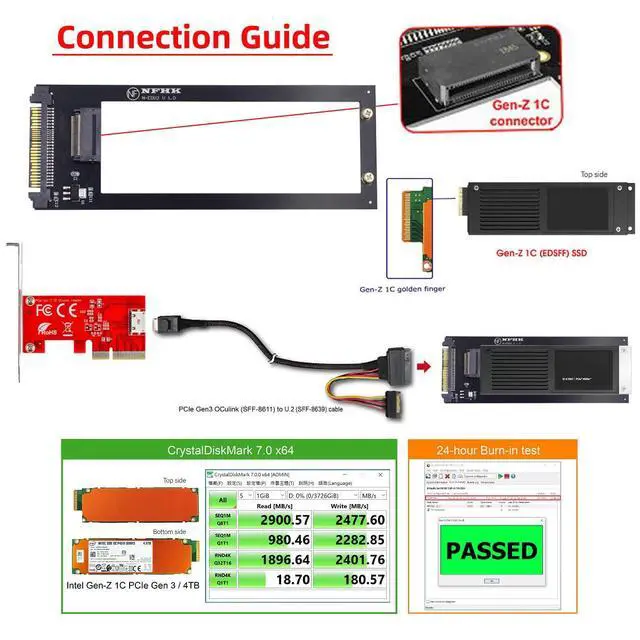

U. 2 SFF-8639 Host to PCI-E Ruler 1U GEN-Z EDSFF 9.5 mm 15mm 25mm Short SSD E1. S with Heat Sink PM9A3 PM9D3 P5801X Carrier Adapter EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management. This converter enables the connection of a GEN-Z SSD in E1. S. Fit for 9.5 mm & 15mm & 25mm thickness SSD with heat sink. like PM9A3 PM9D3 P5801X) The converter can be installed into your system internally through the U.
2 SFF-8639 PCI-E 4X interface. Thus an EDSFF E1. S SSD becomes an U. 2 SSD, which can be used in IoT, data center and server area. Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs.
2 SFF-8639 PCI-E 4X interface. Thus an EDSFF E1. S SSD becomes an U. 2 SSD, which can be used in IoT, data center and server area. Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs.
