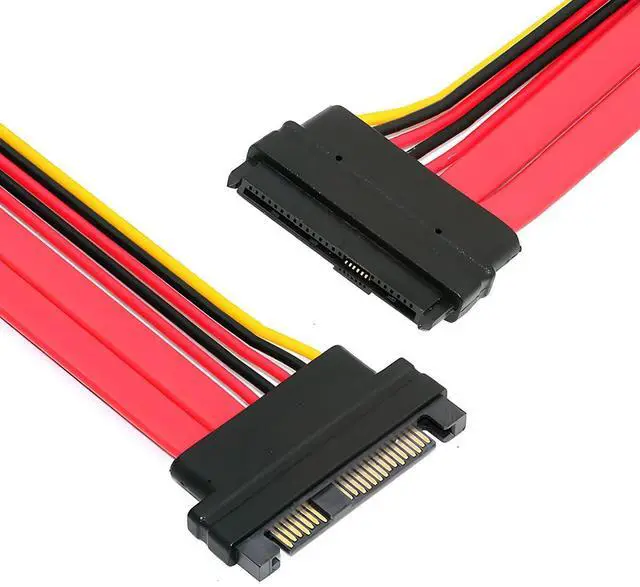

SFF-8482 SAS Cable 29Pin Male to Female Extension Cable for SAS Raid Server Hard Disk Drive SSD 12Gbps (3FT/100cm)
- The SFF-8482 is a connector design for interfacing a connection for SAS drives, both SAS Hard drives and SAS SSD drives.
- The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals.
- The SFF-8482 supports 2 SAS ports (lanes) to/from the drive
- SAS 29 pin straight SFF-8482
- Male to Female cable.30cm 50cm or 100cm cable and UL2725 26AWG SATA Cable PVC jacket.
- One very common use of the SFF-8482 connector is in SAS backplanes. The male portion of the connector can be either SAS or SATA power and 7-pin data connectors.
- While one can plug a SATA drive in the SAS SFF-8482 connector, one cannot plug a SAS drive into the SATA variant due to a piece of plastic bisecting the 7-pin data connector and SATA power connector.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The SFF-8482 is a connector design for interfacing a connection for SAS drives, both SAS Hard drives and SAS SSD drives.
The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals.
The SFF-8482 supports 2 SAS ports (lanes) to/from the drive
SAS 29 pin straight SFF-8482
Male to Female cable. 30cm 50cm or 100cm cable and UL2725 26AWG SATA Cable PVC jacket.
One very common use of the SFF-8482 connector is in SAS backplanes. The male portion of the connector can be either SAS or SATA power and 7-pin data connectors.
While one can plug a SATA drive in the SAS SFF-8482 connector, one cannot plug a SAS drive into the SATA variant due to a piece of plastic bisecting the 7-pin data connector and SATA power connector.
The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals.
The SFF-8482 supports 2 SAS ports (lanes) to/from the drive
SAS 29 pin straight SFF-8482
Male to Female cable. 30cm 50cm or 100cm cable and UL2725 26AWG SATA Cable PVC jacket.
One very common use of the SFF-8482 connector is in SAS backplanes. The male portion of the connector can be either SAS or SATA power and 7-pin data connectors.
While one can plug a SATA drive in the SAS SFF-8482 connector, one cannot plug a SAS drive into the SATA variant due to a piece of plastic bisecting the 7-pin data connector and SATA power connector.
