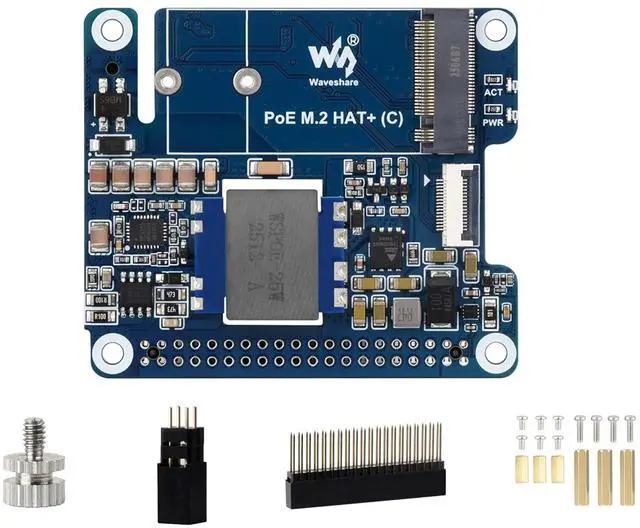

PCIe to M.2 Adapter with PoE Function (C) Compatible with Raspberry Pi 5, Supports NVMe Protocol 2230/2242 M.2 Solid State Drive, High-Speed Reading/Writing, 5V 5A (MAX) GPIO Header

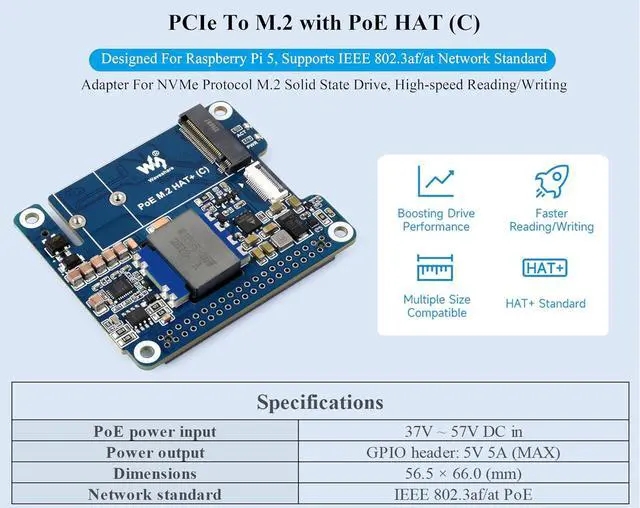

- It is PCIe To M.2 with PoE HAT (PoE M.2 HAT+ (C)), which is compatible with Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard. Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing.
- Power Over Ethernet---Providing both network connection and power supply for your RPi in one cable.

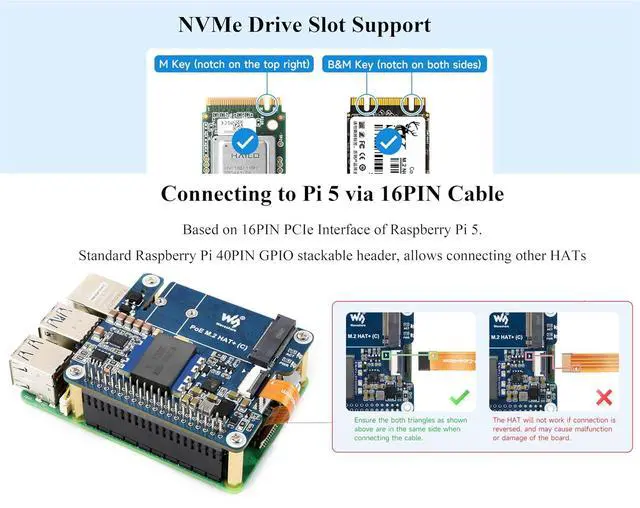

- Connecting to Pi 5 via 16PIN Cable--Based on 16PIN PCIe Interface of RPi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs. Adopts fully isolated Switch Mode Power Supply (SMPS) mode power.

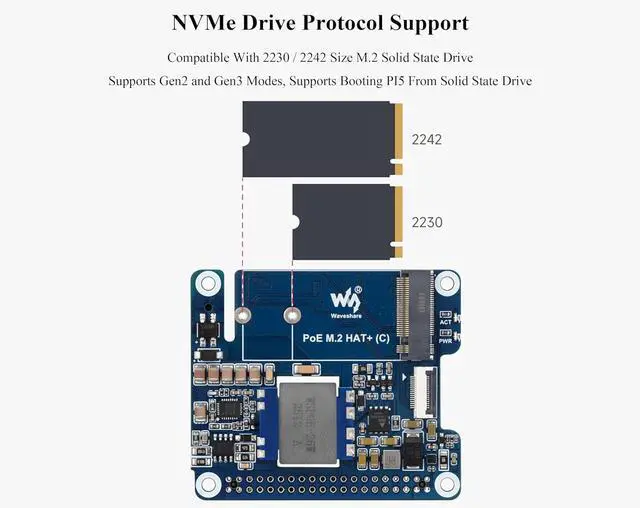

- Support NVMe protocol M.2 interface hard drives. Compatible With 2230 / 2242 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive.

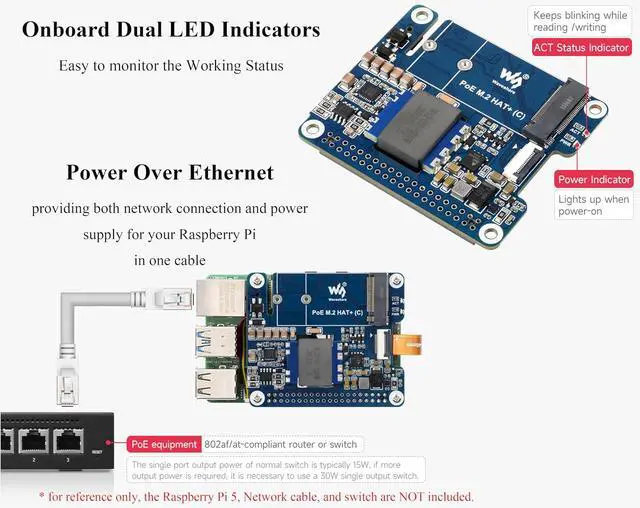

- Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
It is PCIe To M. 2 with PoE HAT (PoE M. 2 HAT+ (C) ), which is compatible with Raspberry Pi 5, Supports IEEE 802.3 af/at Network Standard. Adapter For NVMe Protocol M. 2 Solid State Drive, High-speed Reading/Writing.
Power Over Ethernet---Providing both network connection and power supply for your RPi in one cable.
Connecting to Pi 5 via 16PIN Cable--Based on 16PIN PCIe Interface of RPi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs. Adopts fully isolated Switch Mode Power Supply (SMPS) mode power.
Support NVMe protocol M. 2 interface hard drives. Compatible With 2230 / 2242 Size M. 2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive.
Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
Power Over Ethernet---Providing both network connection and power supply for your RPi in one cable.
Connecting to Pi 5 via 16PIN Cable--Based on 16PIN PCIe Interface of RPi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs. Adopts fully isolated Switch Mode Power Supply (SMPS) mode power.
Support NVMe protocol M. 2 interface hard drives. Compatible With 2230 / 2242 Size M. 2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive.
Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
